Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot sale Original 2N7002KDW-TP Transistors MOSFET 2 N-Channel (Dual) Array 60V 340mA 150mW Surface Mount SOT-363
Manufacturer Product Number
2N7002KDW-TP
Description
2N7002KDW-TP Mosfet Array 60V 340mA 150mW Surface Mount SOT-363
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Brief Description: The 2N7002KDW-TP is a dual N-channel MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) . It is a surface-mount device (SMD) with a 6-TSSOP package and is designed for general-purpose applications. Features: Dual N-channel MOSFET array 340mA continuous drain current (Id) at 25°C 60V drain-to-source voltage (Vdss) 5Ω Rds(on) maximum at 500mA and 10V Operating temperature range: -55°C to 150°C RoHS3 compliant Moisture sensitivity level (MSL): 1 (unlimited) Peak reflow temperature: 260°C Time at peak reflow temperature: 10 seconds Application Grade: The 2N7002KDW-TP is a general-purpose MOSFET array suitable for a wide range of applications, including: Power switching and control Signal amplification and switching Load switching and isolation Automotive and industrial applications Applications: The 2N7002KDW-TP can be used in various applications, including: Power supplies and converters Motor control and drives LED lighting and displays Automotive electronics (e.g., ignition systems, fuel injection) Industrial control and automation systems Medical devices and equipment Overall, the 2N7002KDW-TP is a reliable and versatile MOSFET array that can be used in a wide range of applications requiring high-current switching and control. |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - 2N7002KDW-TP |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| FET, MOSFET Arrays | |
| Manufacturer | / |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25 C | 340mA |
| Rds On (Max) @ Id, Vgs | 5Ohm @ 500mA, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Input Capacitance (Ciss) (Max) @ Vds | 40pF @ 10V |
| Power - Max | 150mW |
| Operating Temperature | -55°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SOT-363 |
| Base Product Number | 2N7002 |

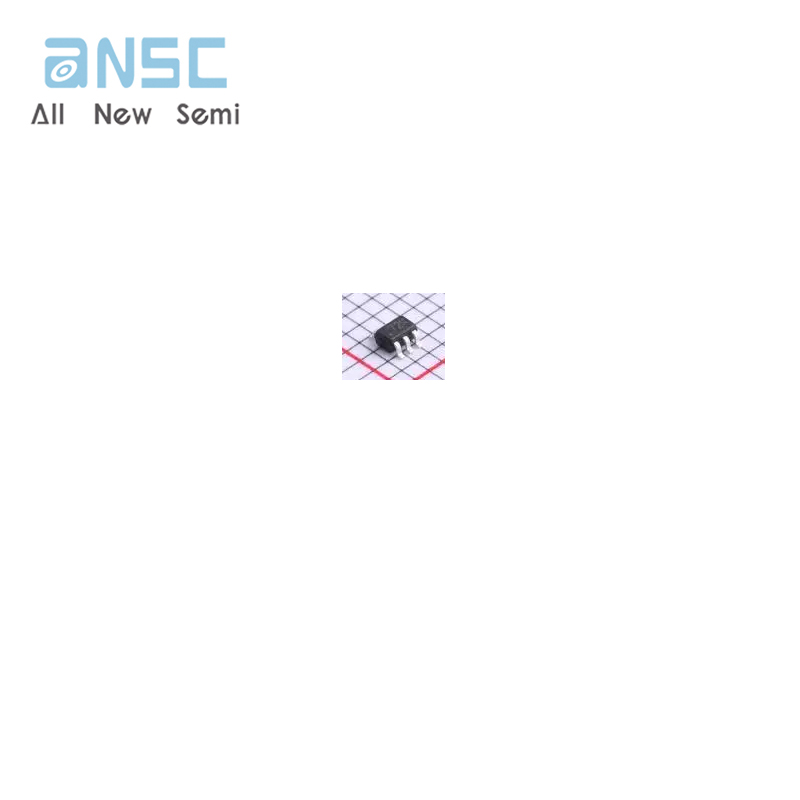

Actual image of the product

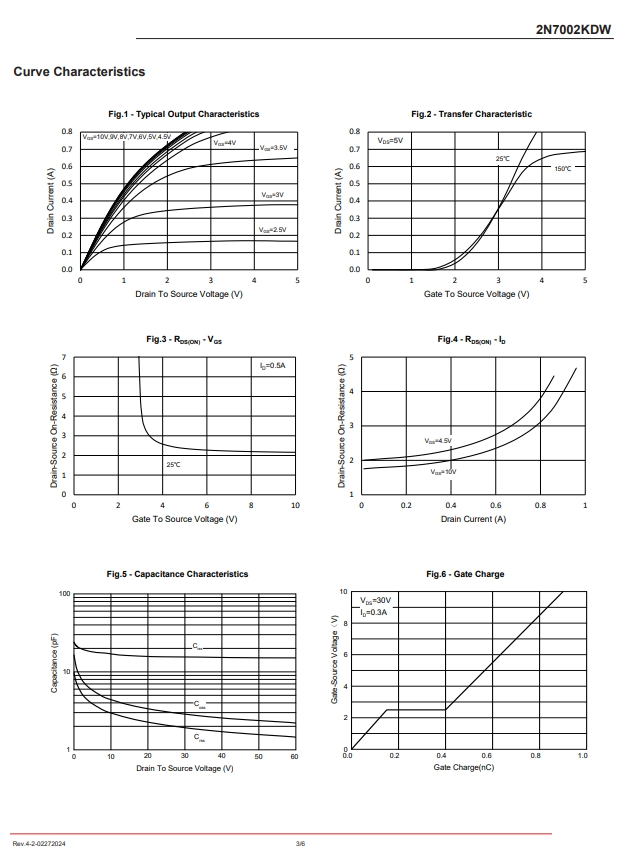

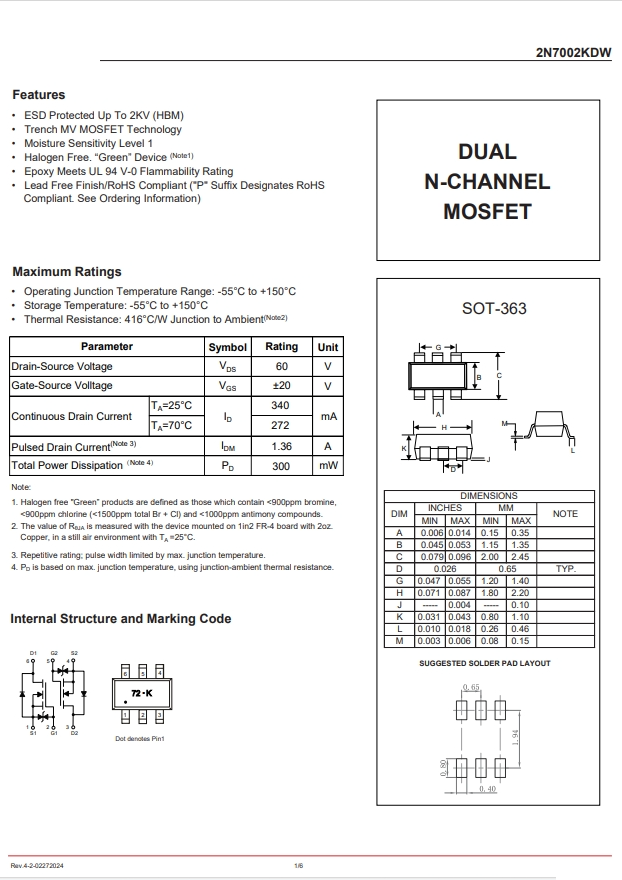

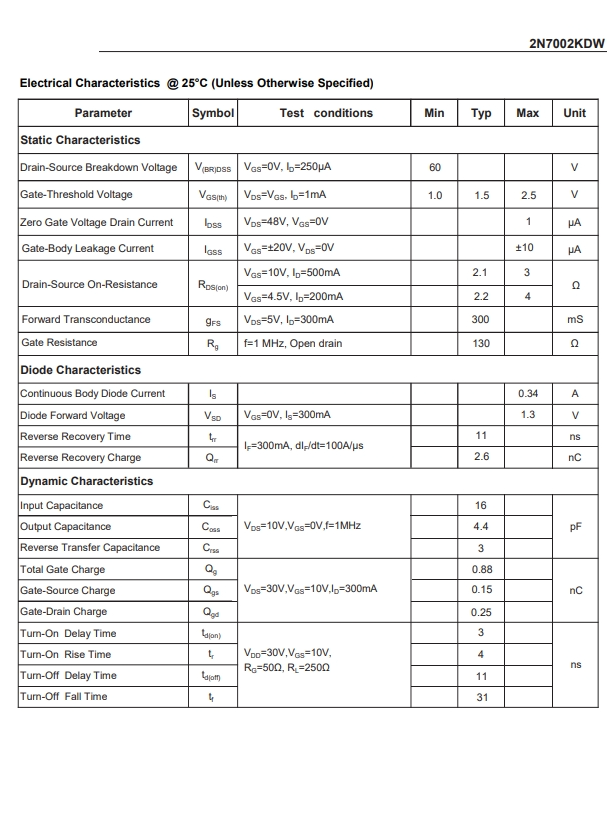

Product datasheet
For more information, please download
