Hot sale original NSS12201LT1G TRANS NPN 12V 2A SOT23-3 Bipolar (BJT) Transistor NPN 12 V 2 A 150MHz 460 mW Surface Mount
Manufacturer Product Number
NSS12201LT1G
Description
NSS12201LT1G TRANS NPN 12V 2A SOT23-3 Bipolar (BJT) Transistor NPN 12 V 2 A 150MHz 460 mW Surface Mount
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| 12 V, 4.0 A, Low VCE(sat) NPN Transistor e2PowerEdge family of low VCE(sat) transistors are miniature surface mount devices featuring ultra low saturation voltage (VCE(sat)) and high current gain capability. These are designed for use in low voltage, high speed switching applications where affordable efficient energy control is important. Typical applications are DC−DC converters and power management in portable and battery powered products such as cellular and cordless phones, PDAs, computers, printers, digital cameras and MP3 players. Other applications are low voltage motor controls in mass storage products such as disc drives and tape drives. In the automotive industry they can be used in air bag deployment and in the instrument cluster. The high current gain allows e2PowerEdge devices to be driven directly from PMU’s control outputs, and the Linear Gain (Beta) makes them ideal components in analog amplifiers. • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant |
Product Description
| Type | Description |
| ANSC PART# | ANSC - NSS12201LT1G |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Obsolete |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 2 A |
| Voltage - Collector Emitter Breakdown (Max) | 12 V |
| Vce Saturation (Max) @ Ib, Ic | 90mV @ 200mA, 2A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 500mA, 2V |
| Power - Max | 460 mW |
| Frequency - Transition | 150MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Base Product Number | NSS12201 |

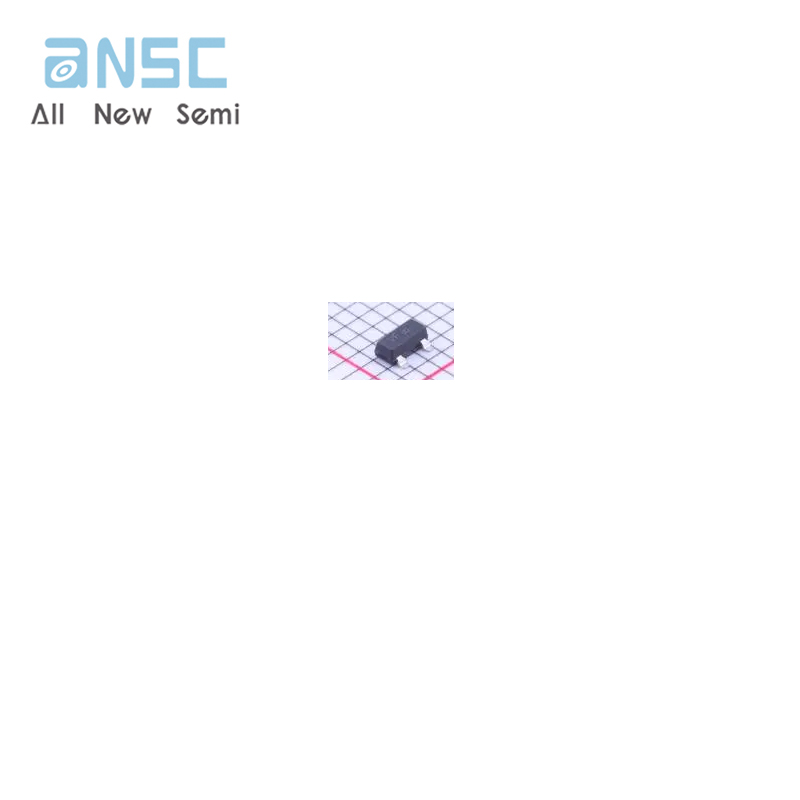

Actual image of the product

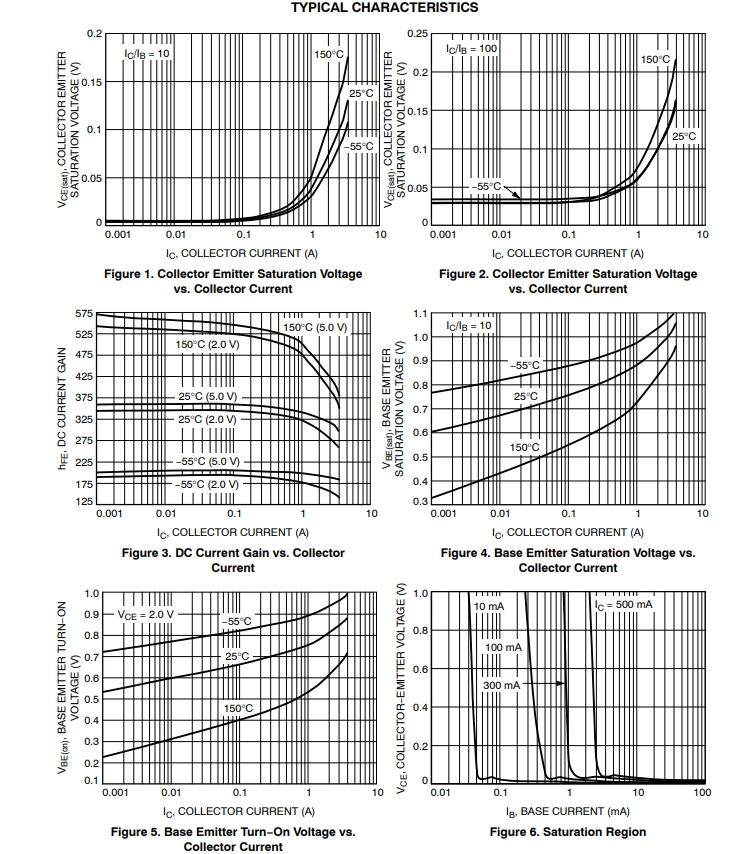

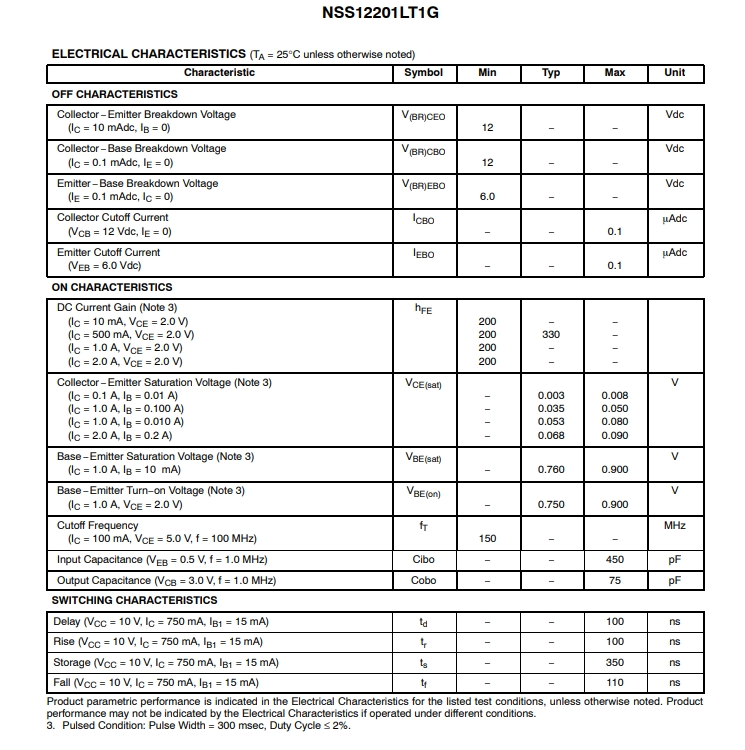

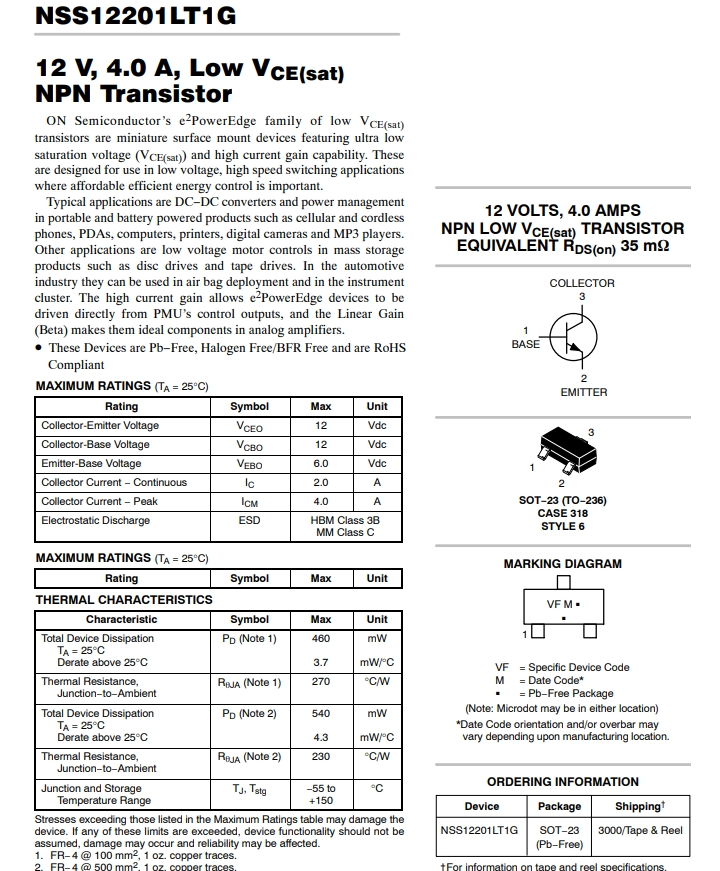

Product datasheet
For more information, please download
