Hot-selling and scarce SMMUN2214LT1G NPN Transistors with Monolithic Bias Resistor Network SOT-23-3 spot stock
Manufacturer Product Number
SMMUN2214LT1G
Description
SMMUN2214LT1G NPN Transistors with Monolithic Bias Resistor Network SOT-23-3 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
This series of digital transistors is designed to replace a singledevice and its external resistor bias network . The Bias ResistorTransistor (BRT) contains a single transistor with a monolithic biasnetwork consisting of two resistors; a series base resistor and abase−emitter resistor . The BRT eliminates these individualcomponents by integrating them into a single device .The use of a BRTcan reduce both system cost and board space.
Product Features
• Simplifies Circuit Design
• Reduces Board Space
• Reduces Component Count
• S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements;AEC-Q101 Qualified and PPAP Capable
• These Devices are Pb−Free,Halogen Free/BFR Free and are RoHS Compliant
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SMMUN2214LT1G |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single, Pre-Biased Bipolar Transistors | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Transistor Type | NPN - Pre-Biased |
| Current - Collector (Ic) (Max) | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Resistors Included | R1 and R2 |
| Resistor - Base (R1) | 10 kOhms |
| Resistor - Emitter Base (R2) | 47 kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 5mA, 10V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 300µA, 10mA |
| Current - Collector Cutoff (Max) | 500nA |
| Power - Max | 246 mW |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Base Product Number | MMUN2214 |

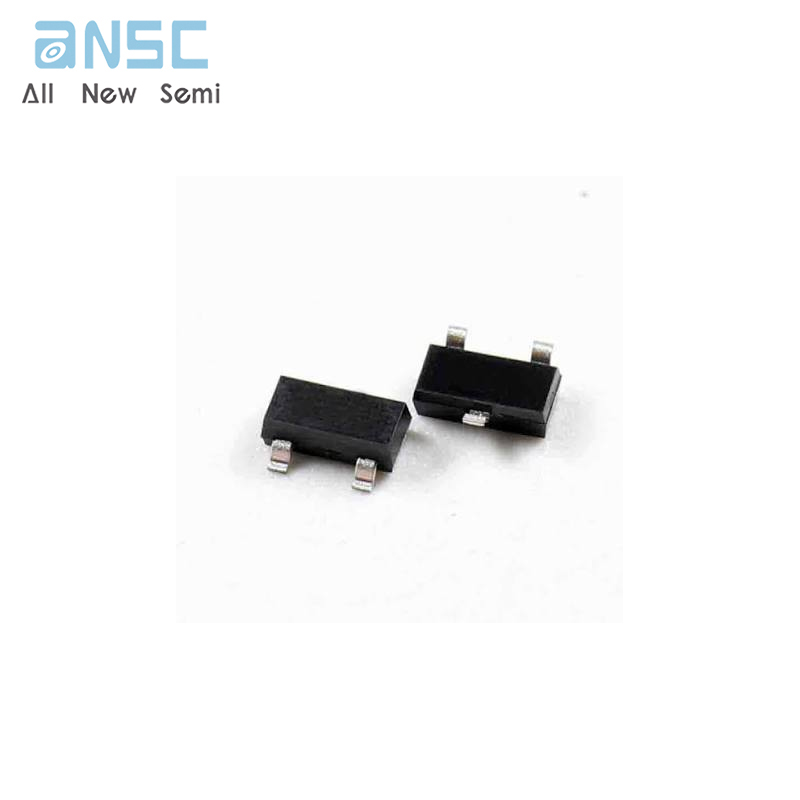

Product Photos
