Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot sale original IRFP9140N Transistors MOSFET P-Channel 100 V 23A (Tc) 140W (Tc) Through Hole TO-247AC
Manufacturer Product Number
IRFP9140N
Description
IRFP9140N Transistor MOSFET P-CH 100V 23A TO247AC
Package Condition
Bag
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
Description
Fifth Generation HEXFETs utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.
The TO-247 package is preferred for commercial industrial applications where higher power levels preclude the use of TO-220 devices. The TO-247 is similar but superior to the earlier TO-218 package because of its isolated mounting hole.
Process Technology
● Dynamic dv/dt Rating
● 175°C Operating Temperature
● P-Channel
● Fast Switching
● Fully Avalanche Rated
Product Description
| Type | Description |
| Part# | IRFP9140N |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | / |
| Series | HEXFET® |
| Packaging | Bag |
| Part Status | Obsolete |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 23A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 117mOhm @ 13A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 97 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1300 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 140W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247AC |
| Package / Case | TO-247-3 |

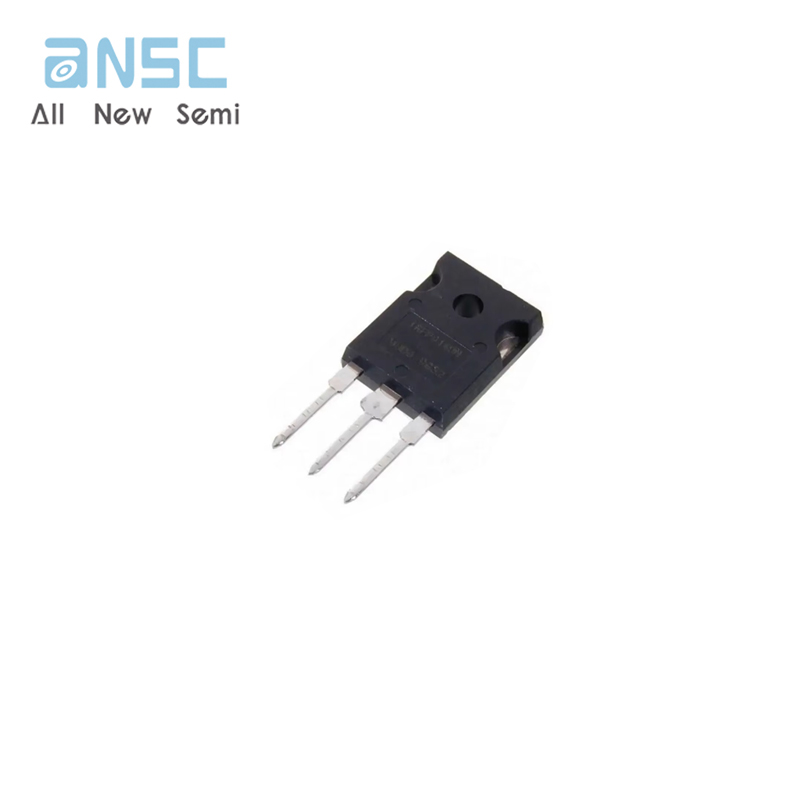

Actual image of the product

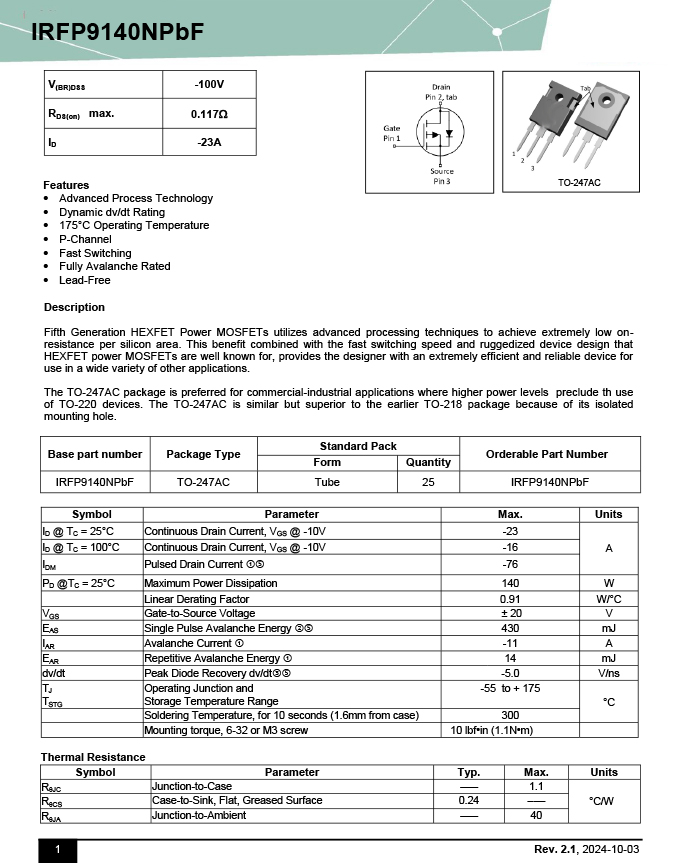

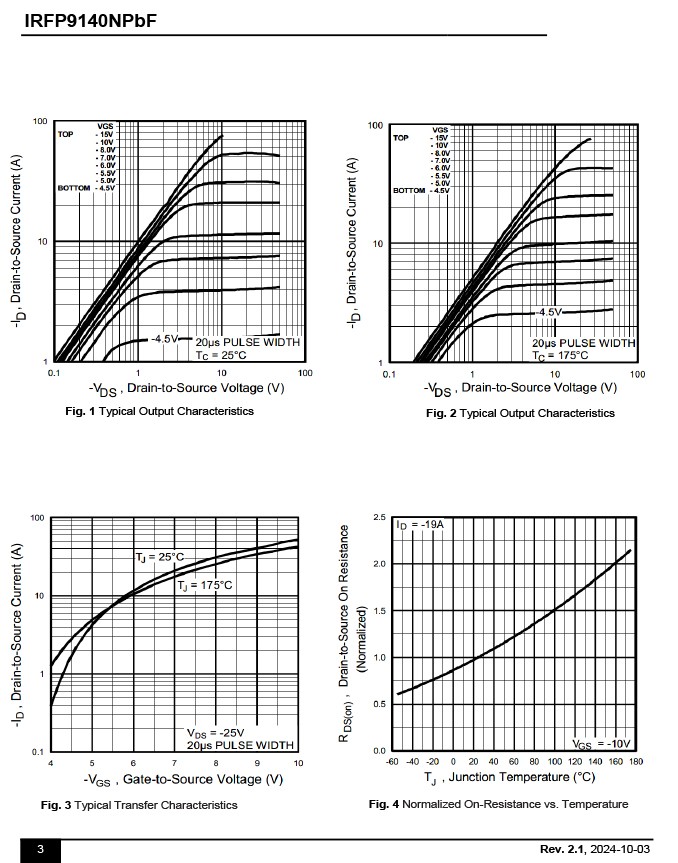

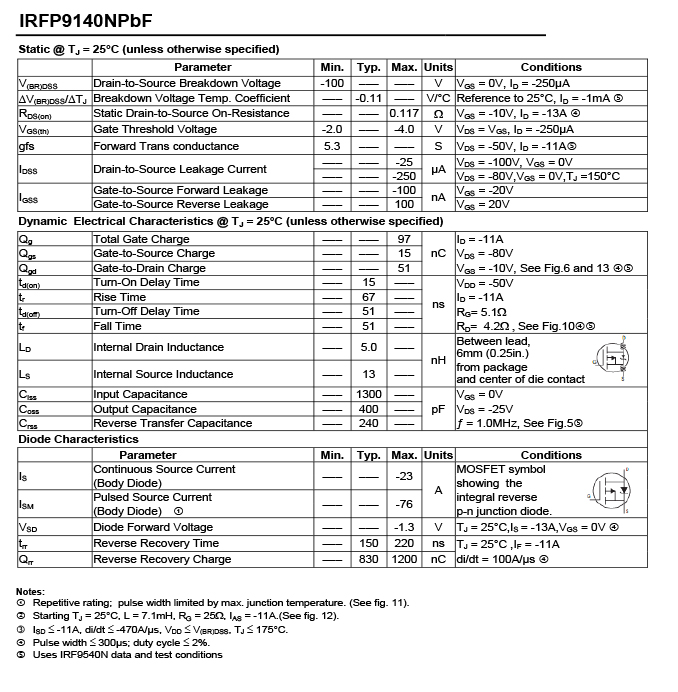

Product datasheet
For more information, please download
