Hot sale original electronics TIP50 High Voltage NPN Silicon Power Transistors Electronic components
Manufacturer Product Number
TIP50
Description
TIP50 High Voltage NPN Silicon Power Transistors Electronic components
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| TIP50 Description TIP47, TIP48, TIP49 and TIP50 are silicon multi-epitaxial NPN planar transistors installed in JEDEC TO-220 plastic packages. It is designed for linear and switching applications. TIP50 Features PREFERRED SALESTYPES NPN TRANSISTORTIP50 Applications linear applications switching applications |
Product Description
| Type | Description |
| ANSC PART# | TIP50 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | Original |
| Series | - |
| Packaging | Bulk |
| Part Status | Obsolete |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 400 V |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 200mA, 1A |
| Current - Collector Cutoff (Max) | 1mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 300mA, 10V |
| Power - Max | 2 W |
| Frequency - Transition | 10MHz |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220-3 |
| Base Product Number | TIP50 |

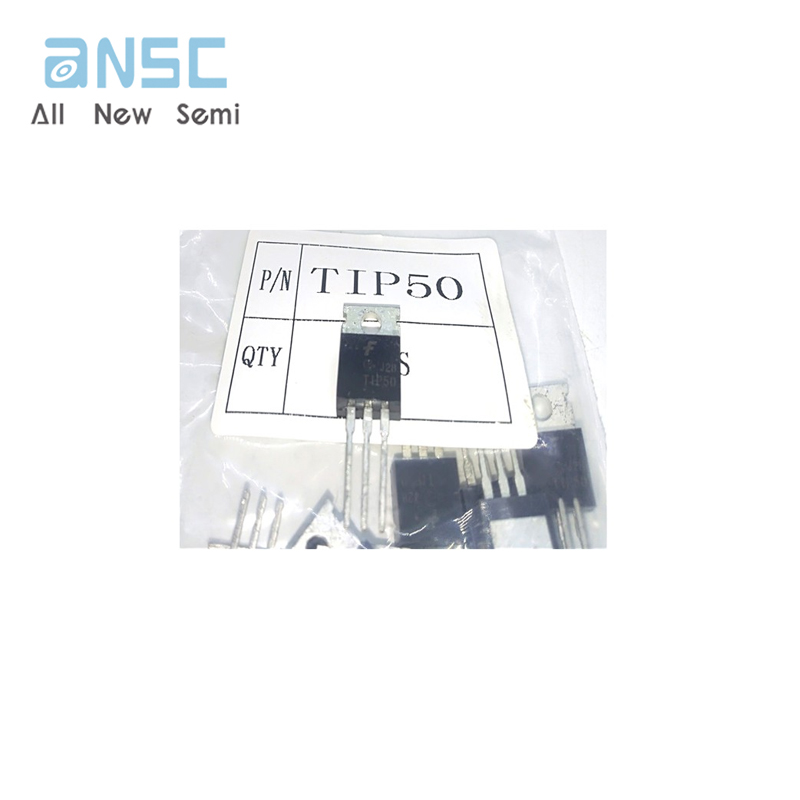

Actual image of the product

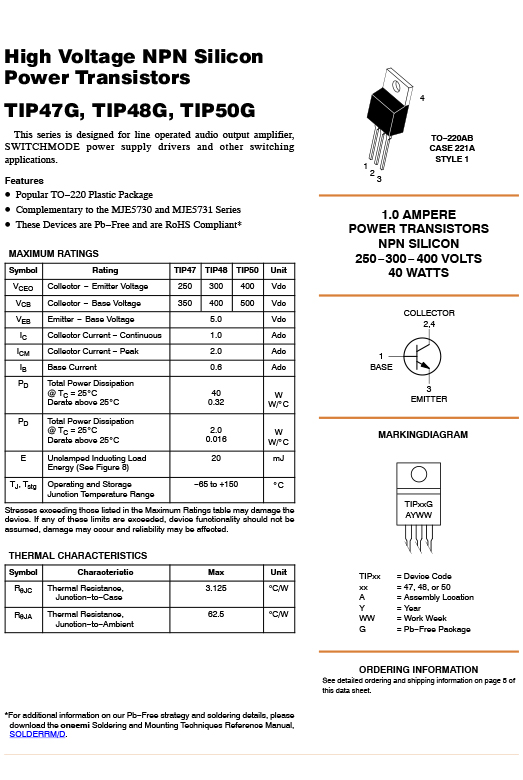

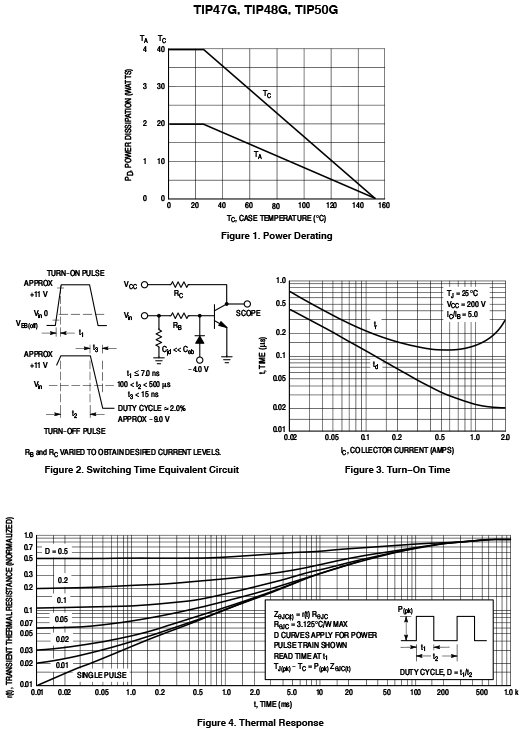

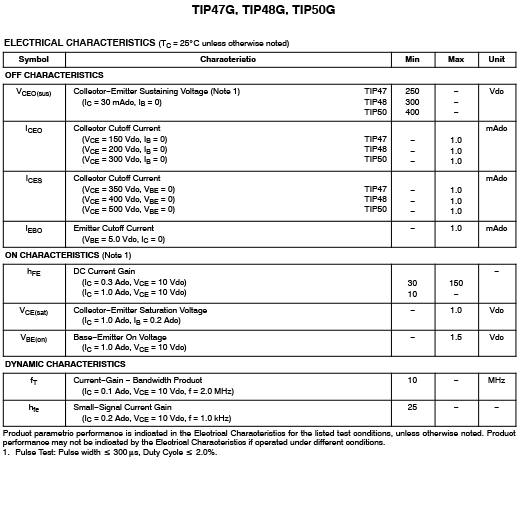

Product datasheet
For more information, please download
