Hot-selling and scarce SFH6186-3T Optocoupler, Phototransistor Output, Low Input Current 4-SMD spot stock
Manufacturer Product Number
SFH6186-3T
Description
SFH6186-3T Optocoupler, Phototransistor Output, Low Input Current 4-SMD spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The SFH618A (DIP) and SFH6186 (SMD) feature a highcurrent transfer ratio, low coupling capacitance and highisolation voltage . These couplers have a GaAs infrareddiode emitter, which is optically coupled to silicon planarphototransistor detector, and is incorporated in a plasticDIP-4 or SMD package .
The coupling devices are designed for signal transmissionbetween two electrically separated circuits.The couplers areend-stackable with 2.54 mm lead spacing . Creepage andclearance distances of > 8 mm achieved with option 6.
Product Features
• Good CTR linearity depending on forward current
• Low CTR degradation
• High collector emitter voltage, V CEO = 55 V
• Isolation test voltage, 5300 V RMS
• Low coupling capacitance
• End stackable, 0.100" (2.54 mm) spacing
• High common mode transient immunity
Product Applications
• Telecom
• Industrial controls
• Battery powered equipment
• Office machines
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SFH6186-3T |
| Category | Isolators |
| Optocouplers, Optoisolators | |
| Transistor, Photovoltaic Output Optoisolators | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Number of Channels | 1 |
| Voltage - Isolation | 5300Vrms |
| Current Transfer Ratio (Min) | 100% @ 1mA |
| Current Transfer Ratio (Max) | 200% @ 1mA |
| Turn On / Turn Off Time (Typ) | 6µs, 5.5µs |
| Rise / Fall Time (Typ) | 3.5µs, 5µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 55V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.1V |
| Current - DC Forward (If) (Max) | 60 mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-SMD |
| Base Product Number | SFH6186 |

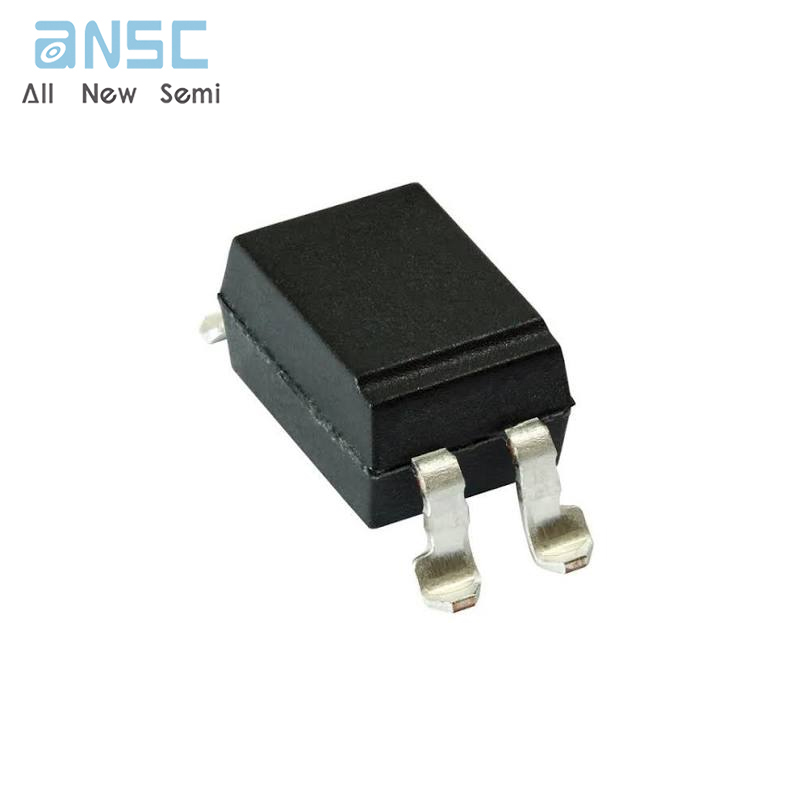

Product Photos
For more product information, please download the PDF
Other Products In The same category:
SFH6186-3T Optocoupler, Phototransistor Output, Low Input Current 4-SMD spot stock
