Product Details
COLOR TV HORIZONTAL OUTPUT APPLICATIONS(Damper Diode BUILT IN)
● High Collector-Base Voltage(VCBO=1500V)
● High Speed Switching
Product Description
| Type# | Description |
| Part# | 2SD1877 |
| Manufacturer | / |
| Part Package | TO-3PML |
| Package Description | FLANGE MOUNT, R-PSFM-T3 |
| Pin Count | 3 |
| Additional Feature | HIGH RELIABILITY |
| Case Connection | ISOLATED |
| Collector Current-Max (IC) | 4 A |
| Collector-Emitter Voltage-Max | 800 V |
| Configuration | SINGLE WITH BUILT-IN DIODE |
| DC Current Gain-Min (hFE) | 3.5 |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Operating Temperature-Max | 140 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Polarity/Channel Type | NPN |
| Power Dissipation-Max (Abs) | 50 W |
| Qualification Status | Not Qualified |
| Surface Mount | NO |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | SINGLE |
| Transistor Application | AMPLIFIER |
| Transistor Element Material | SILICON |

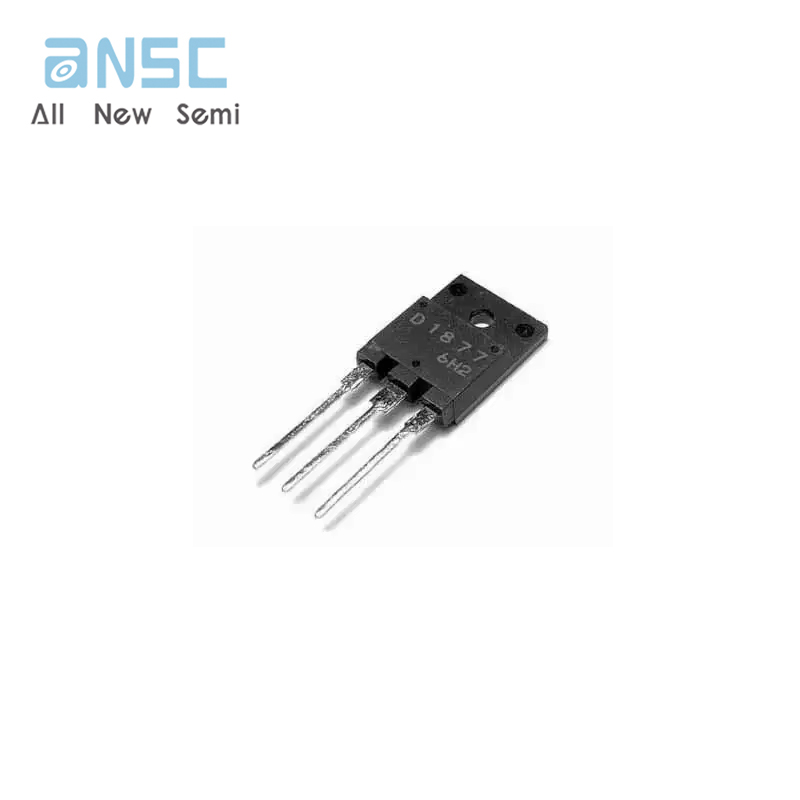

Actual image of the product
