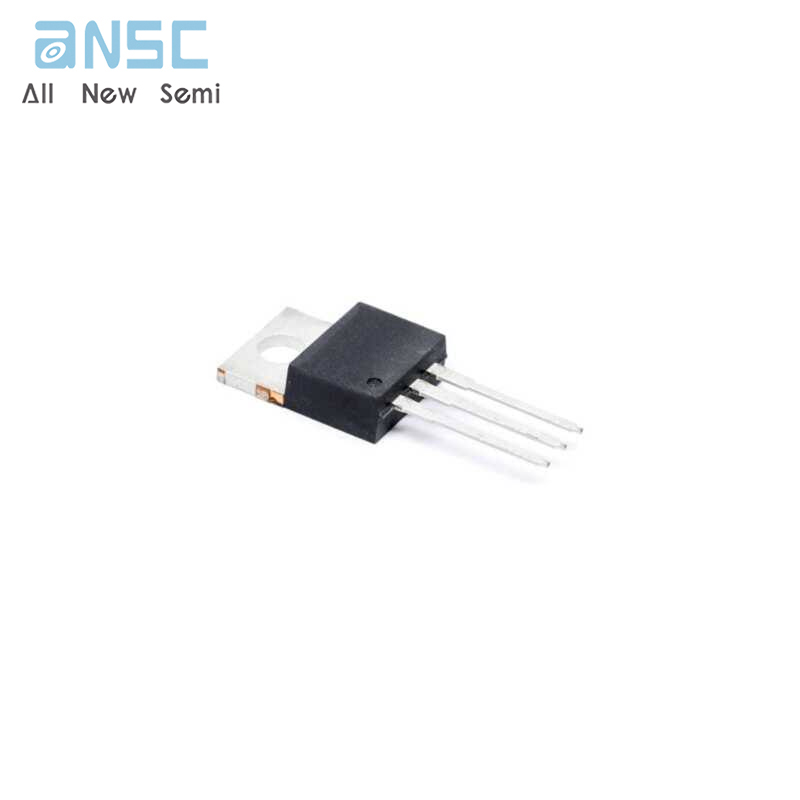

Hot-selling and scarce SIHP8N50D-GE3 Power MOSFET 500 V 8.7A (Tc) 156W (Tc) Through Hole TO-220AB spot stock
Manufacturer Product Number
SIHP8N50D-GE3
Description
SIHP8N50D-GE3 Power MOSFET 500 V 8.7A (Tc) 156W (Tc) Through Hole TO-220AB spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
• Optimal Design
- Low Area Specific On-Resistance
- Low Input Capacitance (C iss)
- Reduced Capacitive Switching Losses
- High Body Diode Ruggedness
- Avalanche Energy Rated (UIS)
• Optimal Efficiency and Operation
- Low Cost
- Simple Gate Drive Circuitry
- Low Figure-of-Merit (FOM): Ron x Q g
- Fast Switching
Product Applications
• Consumer Electronics
- Displays (LCD or Plasma TV)
• Server and Telecom Power Supplies
- SMPS
• Industrial
- Welding
- Induction Heating
- Motor Drives
• Battery Chargers
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SIHP8N50D-GE3 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | - |
| Packaging | Tube |
| Part Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V |
| Current - Continuous Drain (Id)@ 25°C | 8.7A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 850mOhm @ 4A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 30 nC @ 10 V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 527 pF @ 100 V |
| Power Dissipation (Max) | 156W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220AB |
| Package / Case | TO-220-3 |
| Base Product Number | SIHP8 |
Product Photos
For more product information, please download the PDF
