Hot-selling and scarce 2N5416 SILICON PNP TRANSISTORS CAN3 spot stock
Manufacturer Product Number
2N5416
Description
2N5416 SILICON PNP TRANSISTORS CAN3 spot stock
Package Condition
Bulk
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The 2N5415, 2N5416 are high voltage siliconepitaxial planar PNP transistors in Jedec TO-39 metal case designed for use in consumer and industrial line-operated applications.
These devices are particularly suited as drivers in high-voltage low current inverters, switching and series regulators.
Product Features
■ STMicroelectronics PREFERRED
■ SALESTYPES PNP TRANSISTORS
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-2N5416 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Transistor Type | PNP |
| Current - Collector (Ic) (Max) | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 300 V |
| Vce Saturation (Max) @ Ib, Ic | 2.5V @ 5mA, 50mA |
| Current - Collector Cutoff (Max) | 50µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 50mA, 10V |
| Power - Max | 1 W |
| Frequency - Transition | 15MHz |
| Mounting Type | Through Hole |
| Package / Case | TO-205AD, TO-39-3 Metal Can |
| Supplier Device Package | TO-39 |
| Base Product Number | 2N54 |

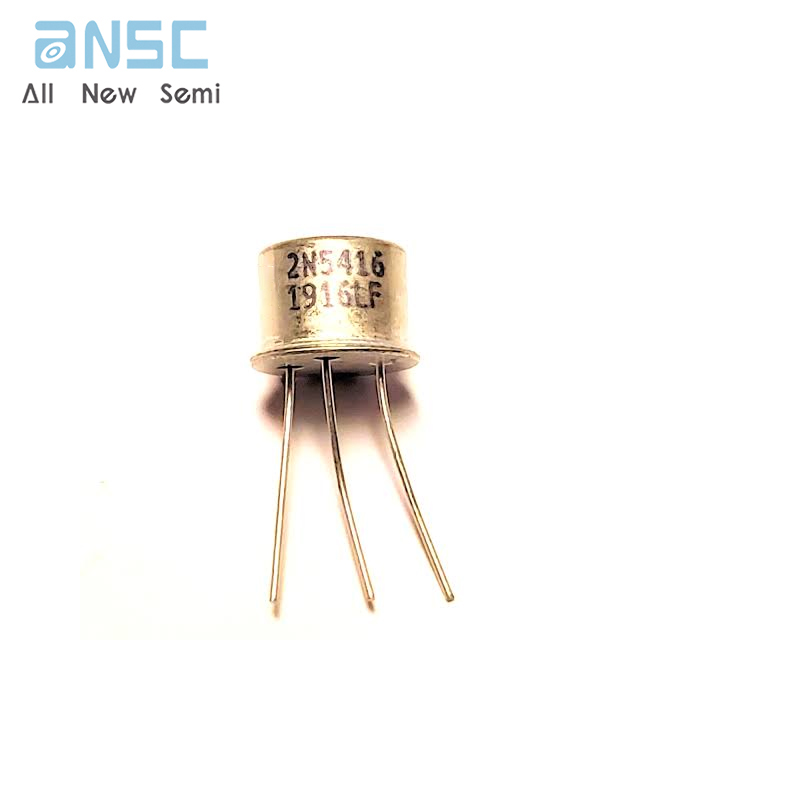

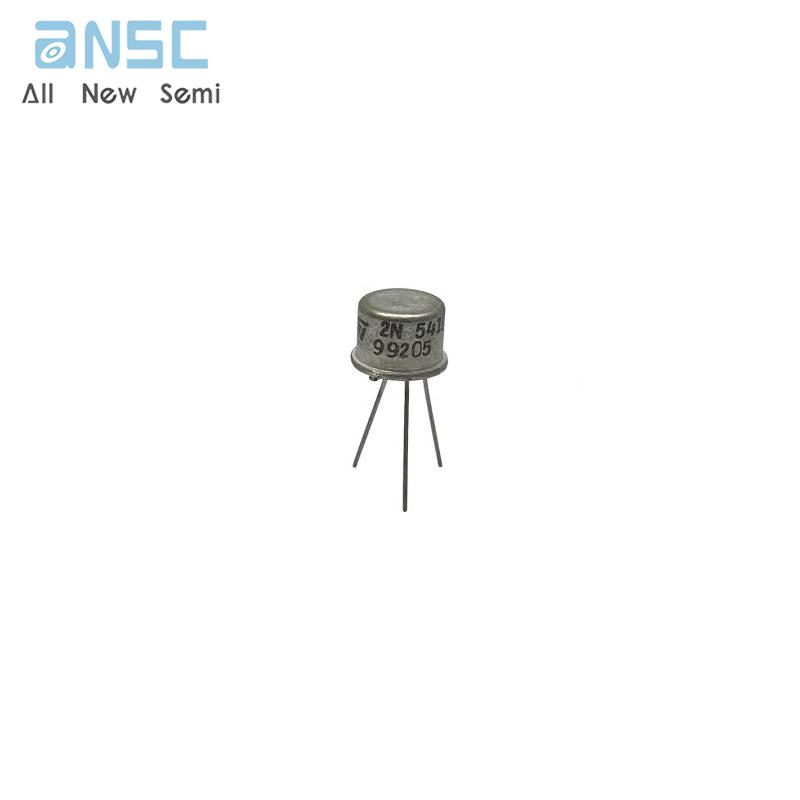

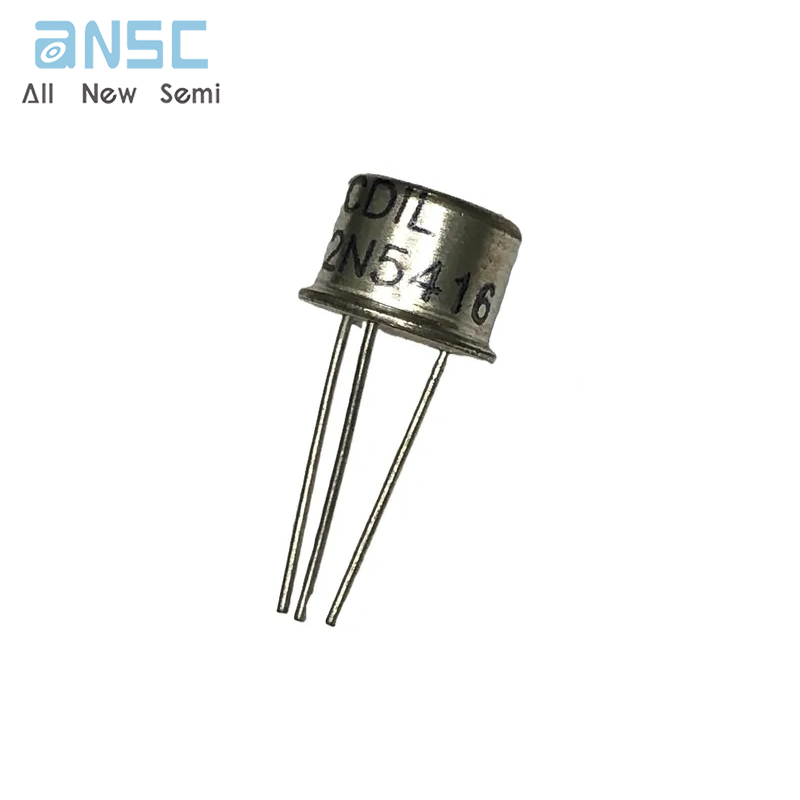

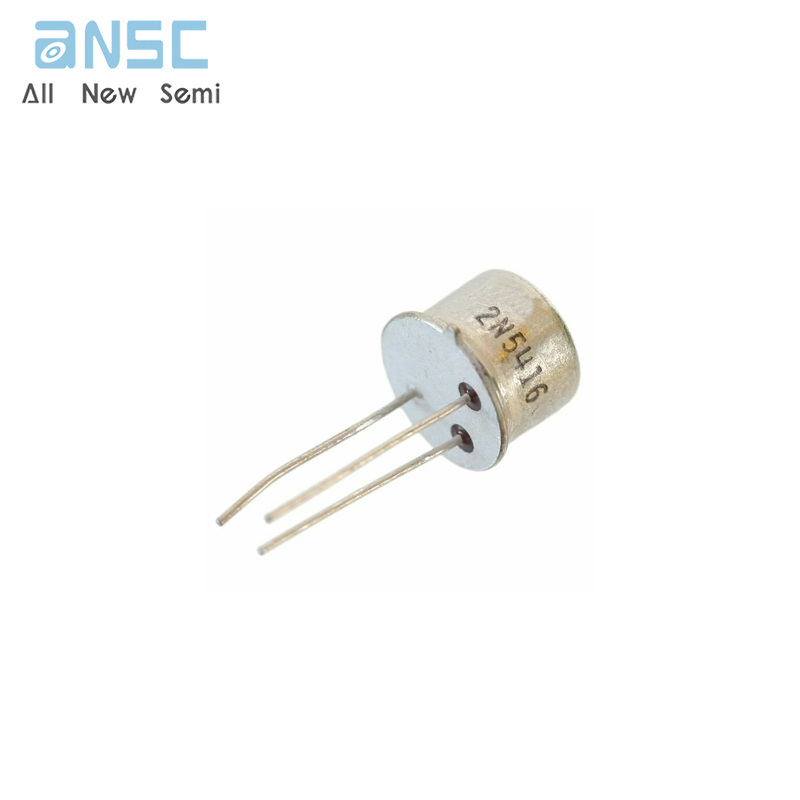

Product Photos
For more product information, please download the PDF
