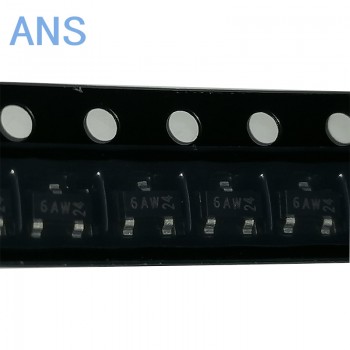

Hot selling One stop supply of electronic components BC817 NPN general purpose transistor 45V 0.5A 250mW SOT23
Manufacturer Product Number
BC817
Description
Small Signal Bipolar Transistor, 0.5A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon,SOT23
Package Condition
REEL
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
NPN transistor in a SOT23 plastic package.
PNP complement: BC807.
Product Features
• High current (max. 500 mA)
• Low voltage (max. 45 V).
Product Applications
• General purpose switching and amplification.
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-BC817 |
| Part Status | Active |
| HTS | 8541.21.00.75 |
| Automotive | No |
| PPAP | No |
| Type | NPN |
| Product Category | Bipolar Small Signal |
| Material | Si |
| Configuration | Single |
| Number of Elements per Chip | 1 |
| Maximum Collector Base Voltage (V) | 45 |
| Maximum Collector-Emitter Voltage (V) | 45 |
| Maximum Emitter Base Voltage (V) | 5 |
| Maximum Base Emitter Saturation Voltage (V) | 1.2@50mA@500mA |
| Maximum Collector-Emitter Saturation Voltage (V) | 0.7(Typ)@50mA@500mA |
| Maximum DC Collector Current (A) | 0.5 |
| Minimum DC Current Gain | 40@500mA@1V|100@100mA@1V |
| Maximum Power Dissipation (mW) | 250 |
| Maximum Transition Frequency (MHz) | 100(Typ) |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Temperature (°C) | 150 |
| Mounting | Surface Mount |
| Package Height | 1.15(Max) |
| Package Width | 1.4(Max) |
| Package Length | 3(Max) |
| PCB changed | 3 |
| Standard Package Name | SOT |
| Supplier Package | SOT-23 |
| Pin Count | 3 |
| Lead Shape | Gull-wing |
