You can contact me for the best price electronic components BOM Japan Transistor 2SK1773
Manufacturer Product Number
2SK1773
Description
2SK1773 5A 1000V 2ohm N-CHANNEL Si POWER MOSFET TO-3P 3 PIN
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
| Type | Description |
| Part# | 2SK1773 |
| Manufacturer | Original |
| Part Package | TO-3P |
| Package Description | TO-3P, 3 PIN |
| Pin Count | 3 |
| Case Connection | DRAIN |
| Configuration | SINGLE WITH BUILT-IN DIODE |
| DS Breakdown Voltage-Min | 1000 V |
| Drain Current-Max (ID) | 5 A |
| Drain-source On Resistance-Max | 2 Ω |
| FET Technology | METAL-OXIDE SEMICONDUCTOR |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Operating Mode | ENHANCEMENT MODE |
| Operating Temperature-Max | 150 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Polarity/Channel Type | N-CHANNEL |
| Power Dissipation-Max (Abs) | 100 W |
| Pulsed Drain Current-Max (IDM) | 15 A |
| Qualification Status | Not Qualified |
| Surface Mount | NO |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | SINGLE |
| Transistor Application | SWITCHING |
| Transistor Element Material | SILICON |

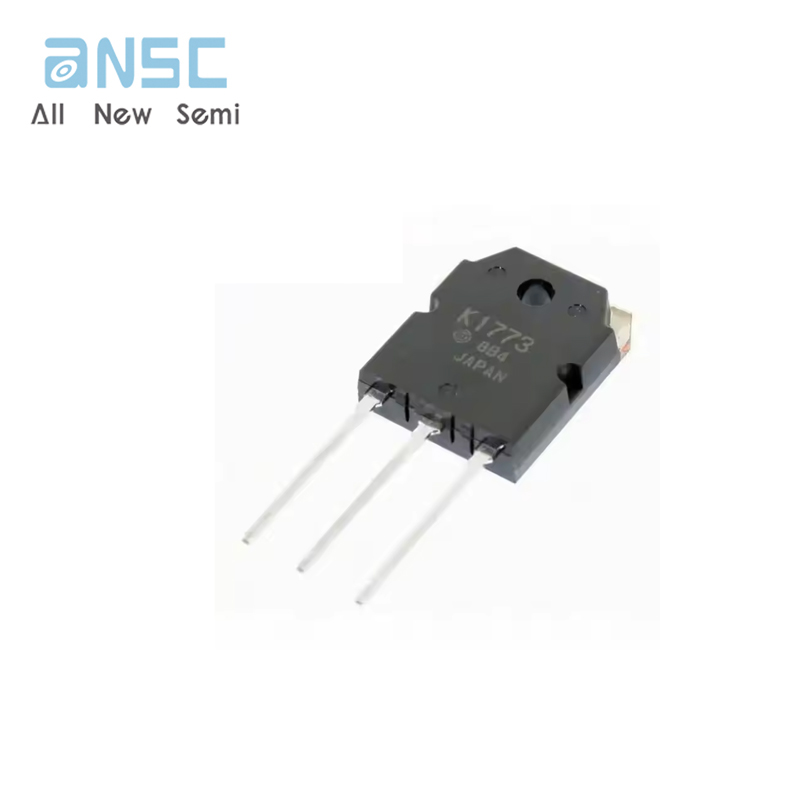

Actual image of the product
Other Products In The same category:
2SK1773 5A 1000V 2ohm N-CHANNEL Si POWER MOSFET TO-3P 3 PIN
1000In stock:
Can ship immediately
