Hot-selling and scarce STW29NK50Z N-Channel 500 V 31A (Tc) 350W (Tc) Through Hole TO-247-3 spot stock
Manufacturer Product Number
STW29NK50Z
Description
STW29NK50Z N-Channel 500 V 31A (Tc) 350W (Tc) Through Hole TO-247-3 spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding application. Such series complements ST full range of high vltage MOSFETs including revolutionary MDmesh™ products.
Product Features
■ TYPICAL RDS(on) = 0.105 Ω
■ EXTREMELY HIGH dv/dt CAPABILITY
■ 100% AVALANCHE TESTED
■ GATE CHARGE MINIMIZED
■ VERY LOW INTRINSIC CAPACITANCES
■ VERY GOOD MANUFACTURING
■ REPEATIBILITY
Product Applications
■ HIGH CURRENT, HIGH SPEED SWITCHING
■ IDEAL FOR OFF-LINE POWER SUPPLIES
■ WELDING MACHINES
■ LIGHTING
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-STW29NK50Z |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | - |
| Series | SuperMESH™ |
| Packaging | Tube |
| Part Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V |
| Current - Continuous Drain (Id) @ 25°C | 31A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 130mOhm @ 15.5A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 150µA |
| Gate Charge (Qg) (Max) @ Vgs | 266 nC @ 10 V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 6110 pF @ 25 V |
| Power Dissipation (Max) | 350W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247-3 |
| Package / Case | TO-247-3 |
| Base Product Number | STW29N |

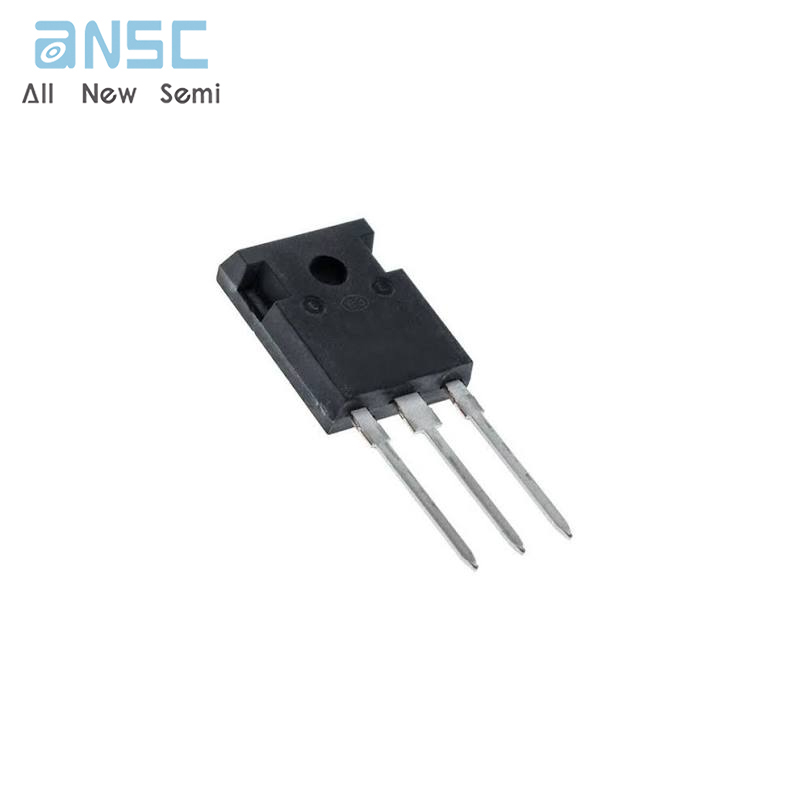

Product Photos
