Hot sale original ZVN4424Z Small Signal Field-Effect Transistor, 0.3A I(D), 240V, 1-Element, N-Channel, Silicon
Manufacturer Product Number
ZVN4424Z
Description
ZVN4424Z Small Signal Field-Effect Transistor
Package Condition
Original
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
FEATURES
* 240 Volt BVDS
* Extremely low RDS(on)=4.3Ω
* Low threshold and Fast switching
APPLICATIONS
* Earth recall and dialling switches
* Electronic hook switches
* Battery powered equipment
* Telecoms and high voltage dc-dc convertors
PARTMARKING DETAILS - N24
COMPLEMENTARY TYPE - ZVP4424Z
Product Description
| Product Attribute# | Attribute Value |
| ANSC PART# | ANSC -ZVN4424Z |
| Manufacturer | / |
| Category | Transistors |
| Additional Feature | LOW THRESHOLD |
| Case Connection | DRAIN |
| Configuration | SINGLE |
| DS Breakdown Voltage-Min | 240 V |
| Drain Current-Max (ID) | 0.3 A |
| Drain-source On Resistance-Max | 5.5 Ω |
| FET Technology | METAL-OXIDE SEMICONDUCTOR |
| Feedback Cap-Max (Crss) | 15 pF |
| Moisture Sensitivity Level | 1 |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Operating Mode | ENHANCEMENT MODE |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 260 |
| Polarity/Channel Type | N-CHANNEL |
| Qualification Status | Not Qualified |
| Surface Mount | YES |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | FLAT |
| Terminal Position | SINGLE |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| Transistor Application | SWITCHING |
| Transistor Element Material | SILICON |

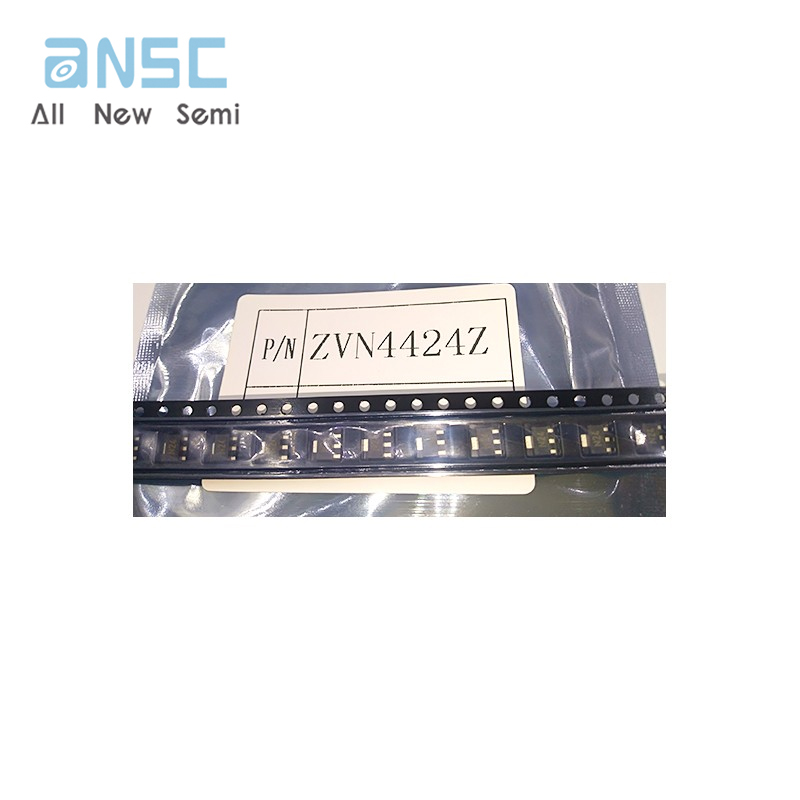

Actual image of the product

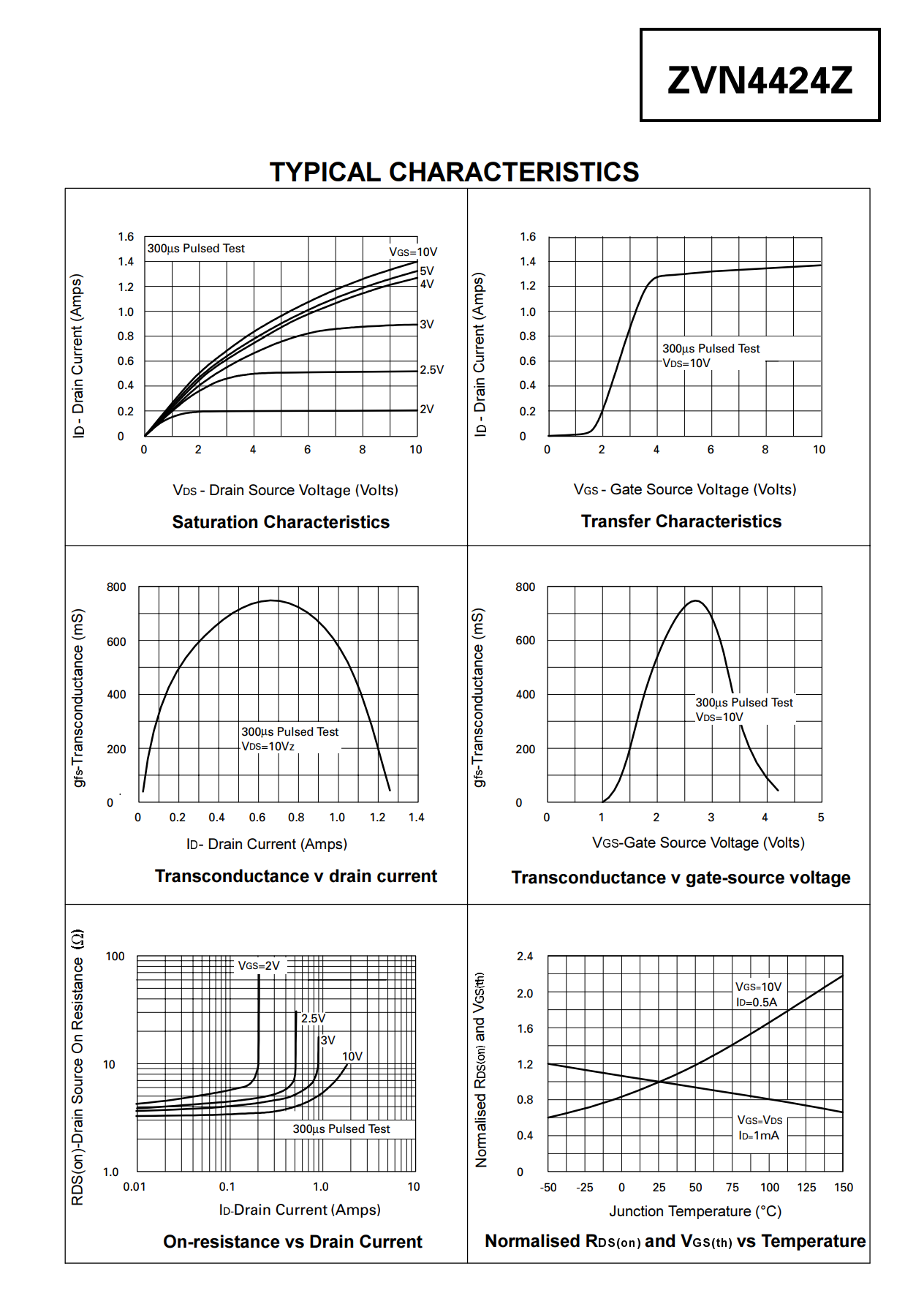

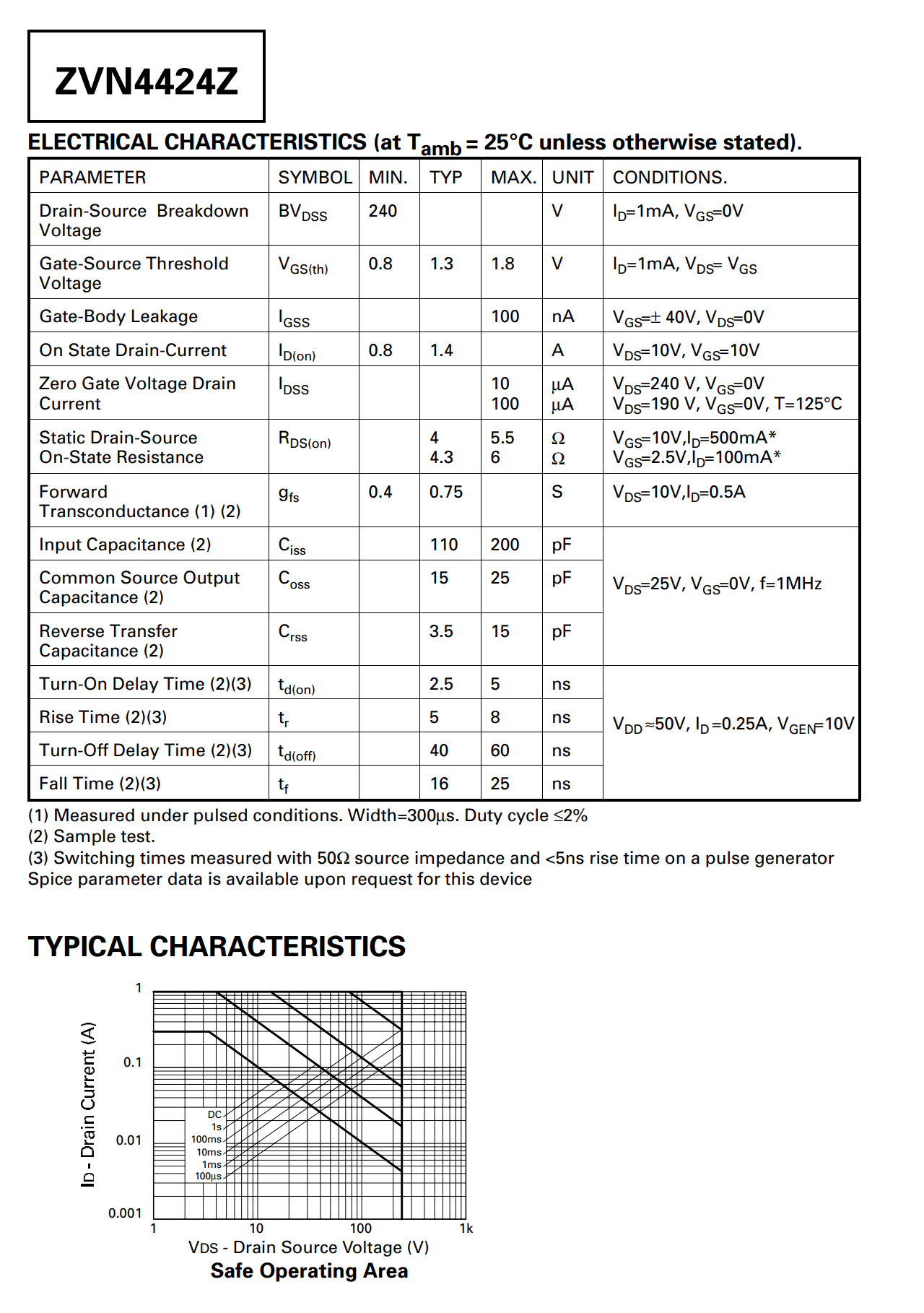

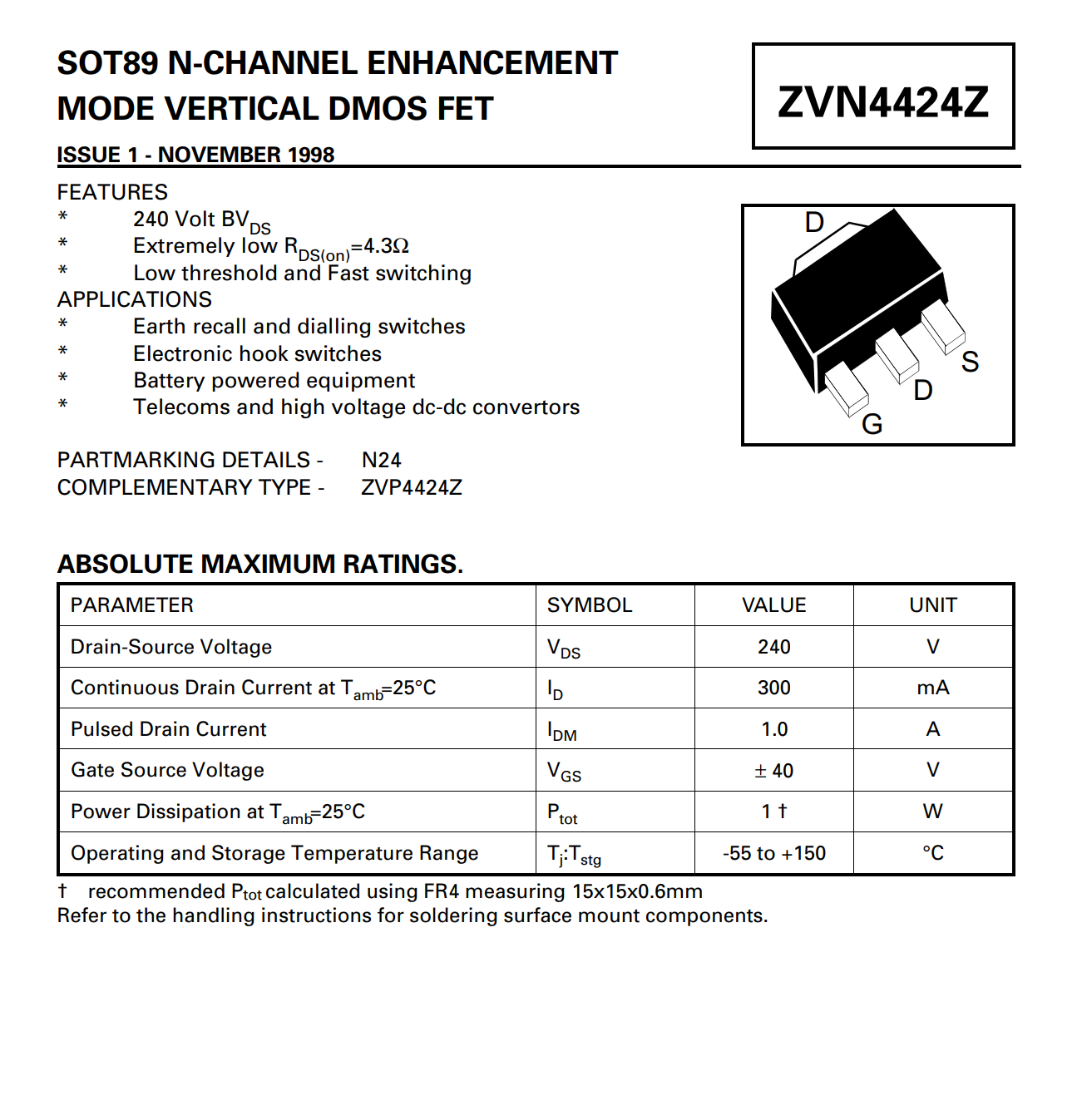

Product datasheet
For more information, please download
