Hot sale original 2N3866 TRANS NPN 30V 0.4A TO39 Bipolar (BJT) Transistor NPN 30V 400mA 1W Through Hole TO-39
Manufacturer Product Number
2N3866
Description
2N3866 Bipolar (BJT) Transistor NPN 30V 400mA 1W Through Hole TO-39
Package Condition
Bulk
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
Brief Description: The 2N3866 is a NPN bipolar junction transistor (BJT) .
It is a single-element transistor with a TO-205AD or TO-39-3 metal can package,
designed for general-purpose applications.
Product Features
-
Collector-base voltage (VCBO): 60V
-
Collector-emitter breakdown voltage (VCEO): 30V
-
DC current gain (hFE) at 50mA and 5V: 15
-
Maximum collector current: 400mA
-
Maximum power dissipation: 1W
-
Operating temperature: -65°C to 200°C
-
Frequency: 800MHz
-
Transition frequency: 400MHz
-
Vce saturation: 1V at 10mA and 100mA
Application Grade: The 2N3866 is a general-purpose transistor suitable for a wide range of applications, including:
-
Low-power amplifiers
-
Switching applications
-
Driver circuits
-
General-purpose switching and amplification
Product Applications
-
Audio amplifiers
-
Power supplies
-
Motor control
-
Industrial control systems
-
Automotive electronics
-
Consumer electronics
This transistor is suitable for applications where high-frequency operation, high-power dissipation, and a wide operating temperature range are required. Its non-RoHS compliant status and tin/lead terminal finish may limit its use in certain applications, but it remains a popular choice for many general-purpose applications.
Product Description
|
Type |
Description |
|---|---|
| ANSC PART# | ANSC - 2N3866 |
|
Category |
Discrete Semiconductor Products Transistors Bipolar (BJT) Single Bipolar Transistors |
|
Mfr |
/ |
|
Series |
- |
|
Packaging |
Bulk |
|
Part Status |
Obsolete |
|
Transistor Type |
NPN |
|
Current - Collector (Ic) (Max) |
400 mA |
|
Voltage - Collector Emitter Breakdown (Max) |
30 V |
|
Vce Saturation (Max) @ Ib, Ic |
1V @ 10mA, 100mA |
|
Current - Collector Cutoff (Max) |
20µA |
|
DC Current Gain (hFE) (Min) @ Ic, Vce |
15 @ 50mA, 5V |
|
Power - Max |
1 W |
|
Frequency - Transition |
- |
|
Operating Temperature |
-65°C ~ 200°C (TJ) |
|
Mounting Type |
Through Hole |
|
Package / Case |
TO-205AD, TO-39-3 Metal Can |
|
Supplier Device Package |
TO-39 (TO-205AD) |

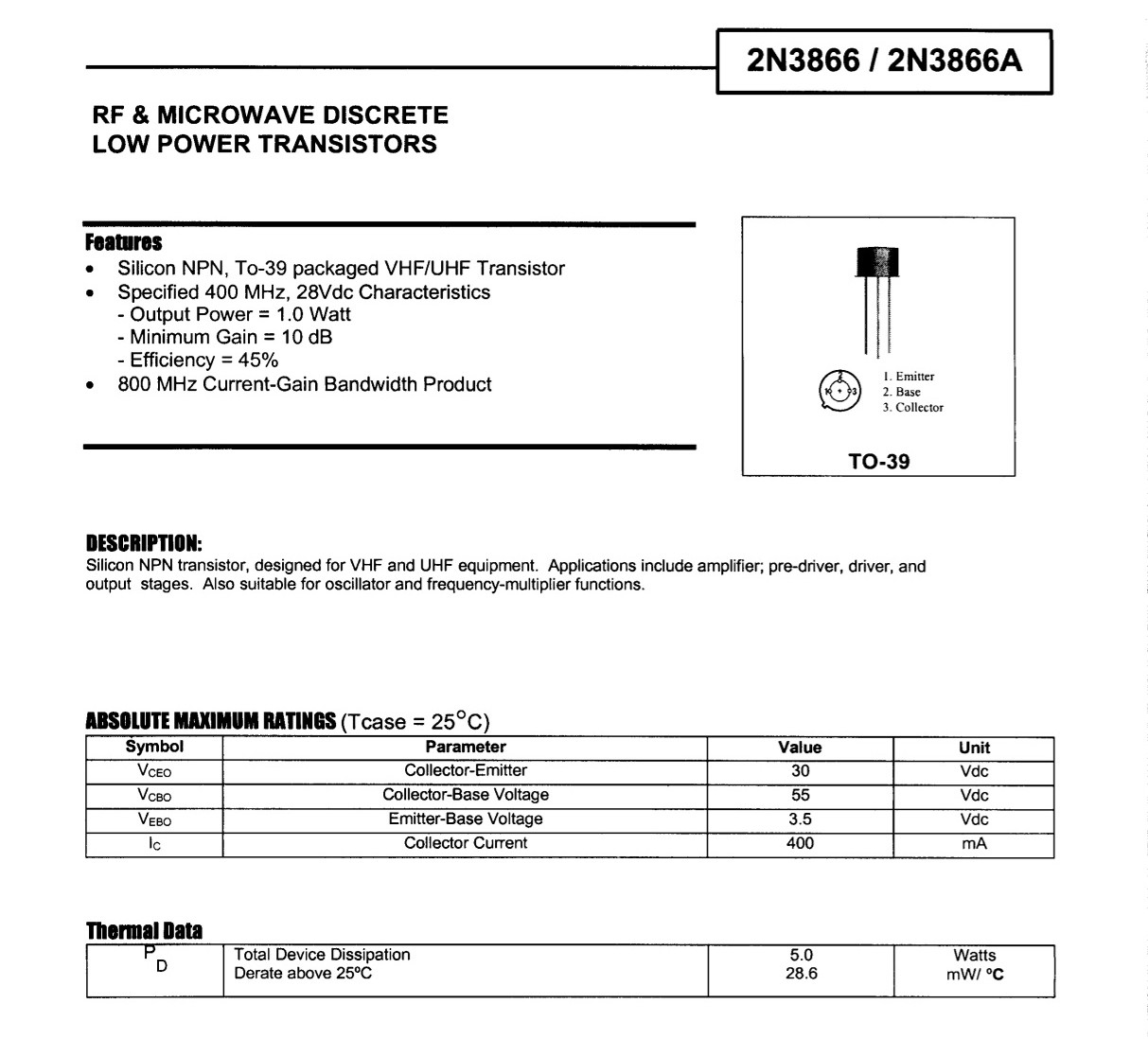

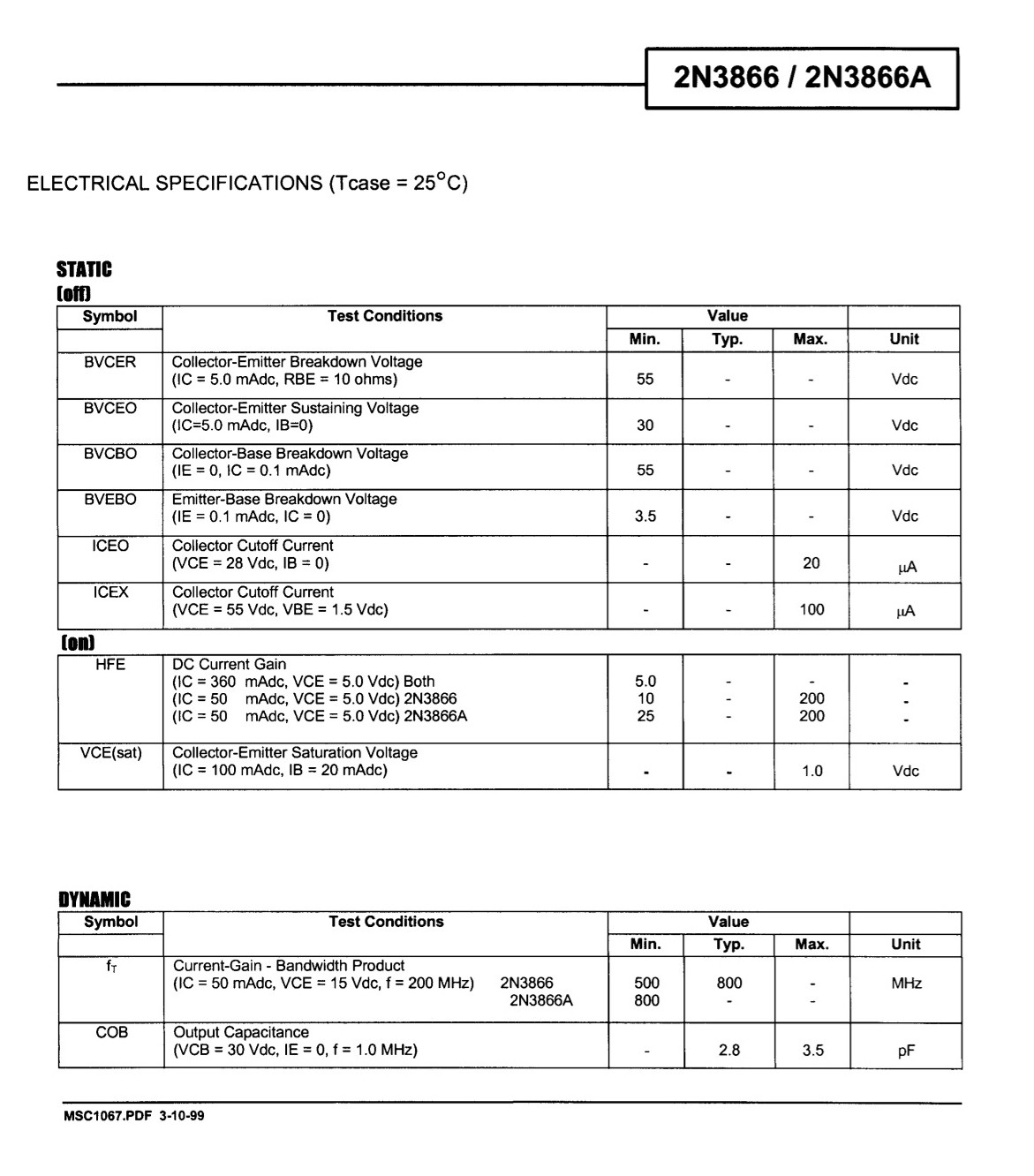

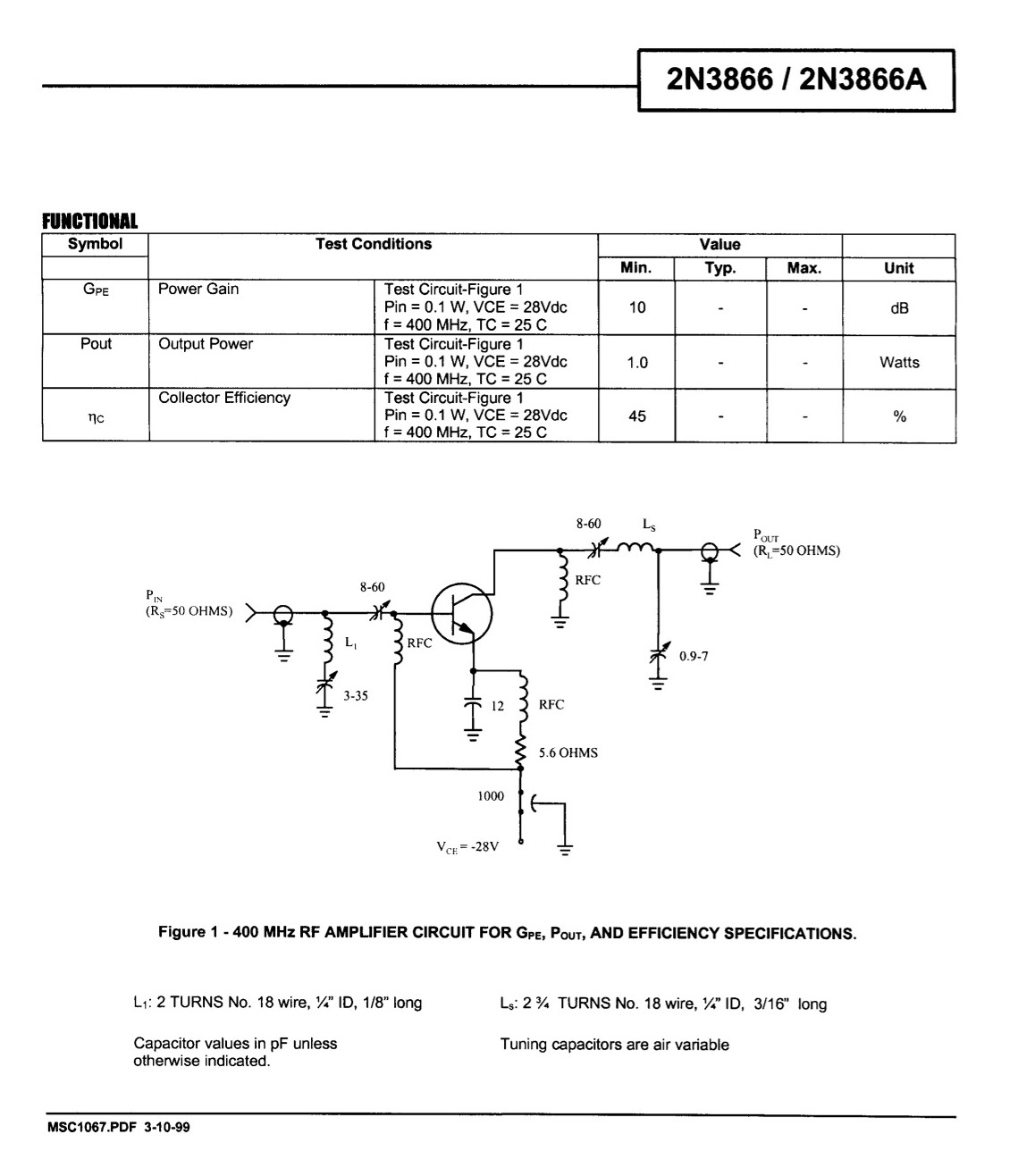

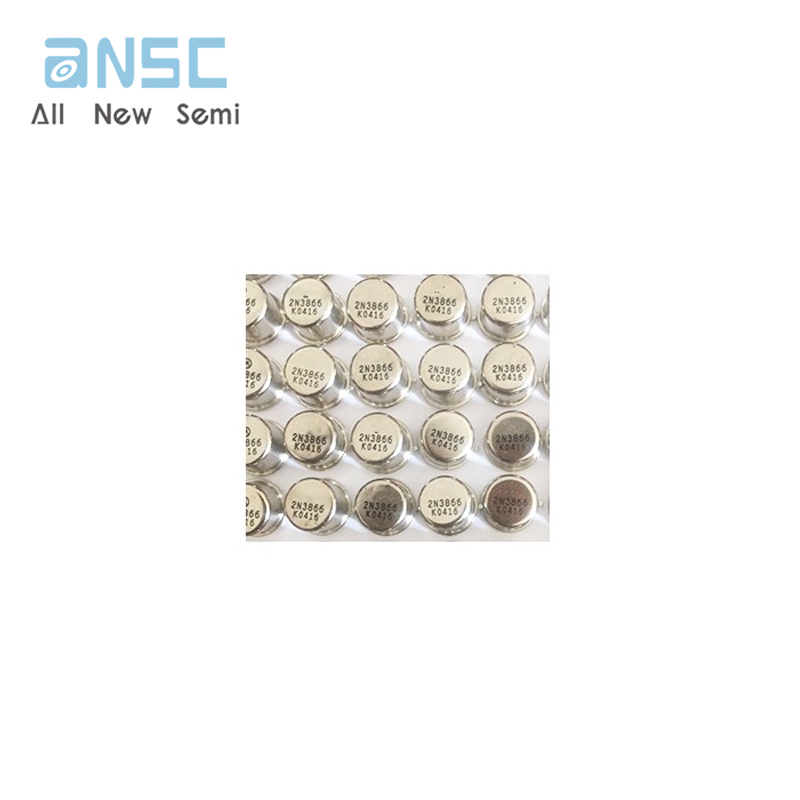

Actual image of the product
