Hot-selling and scarce TIP102 COMPLEMENTARY SILICON POWER DARLINGTON TRANSISTORS TO-220 spot stock
Manufacturer Product Number
TIP102
Description
TIP102 COMPLEMENTARY SILICON POWER DARLINGTON TRANSISTORS TO-220 spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The TIP102 is a silicon Epitaxial-Base NPN power transistor in monolithic Darlington configuration mounted in TO-220 plastic package. It is intented for use in power linear and switching applications.
The complementary PNP type is TIP107.
Product Features
■ STMicroelectronics PREFERRED SALESTYPES
■ COMPLEMENTARY PNP - NPN DEVICES
■ INTEGRATED ANTIPARALLEL COLLECTOR-EMITTER DIODE
Product Applications
■ LINEAR AND SWITCHING INDUSTRIAL EQUIPMENT
■ AUDIO POWER AMPLIFIER
■ GENERAL POWER SWITCHING
■ DC-AC CONVERTER
■ EASY DRIVER FOR LOW VOLTAGE DC MOTOR
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TIP102 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | - |
| Packaging | Tube |
| Part Status | Active |
| Transistor Type | NPN - Darlington |
| Current - Collector (Ic) (Max) | 8 A |
| Voltage - Collector Emitter Breakdown (Max) | 100 V |
| Vce Saturation (Max) @ Ib, Ic | 2.5V @ 80mA, 8A |
| Current - Collector Cutoff (Max) | 50µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 1000 @ 3A, 4V |
| Power - Max | 2 W |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220 |
| Base Product Number | TIP102 |

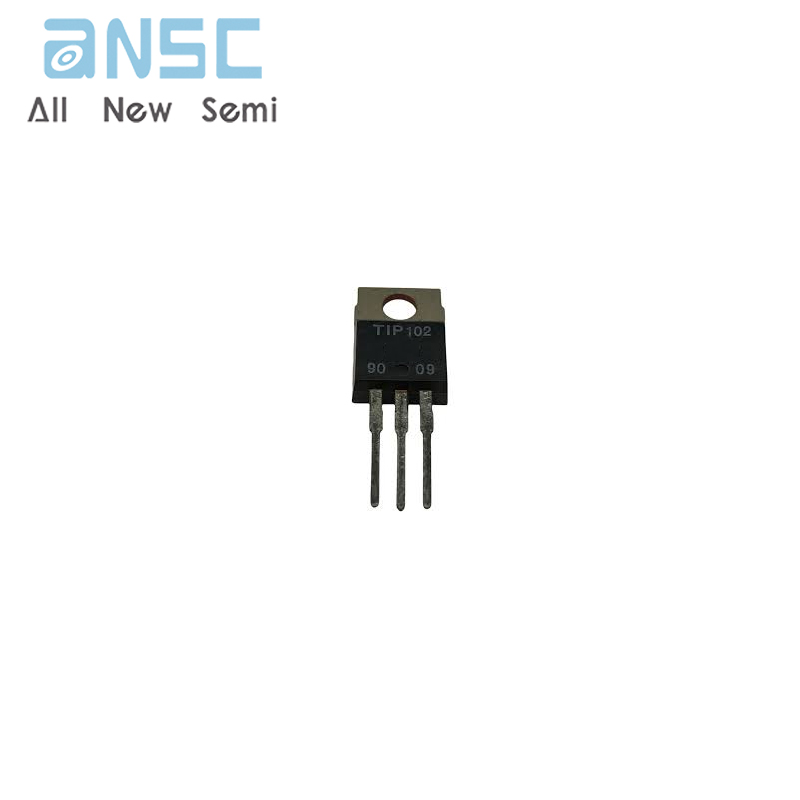

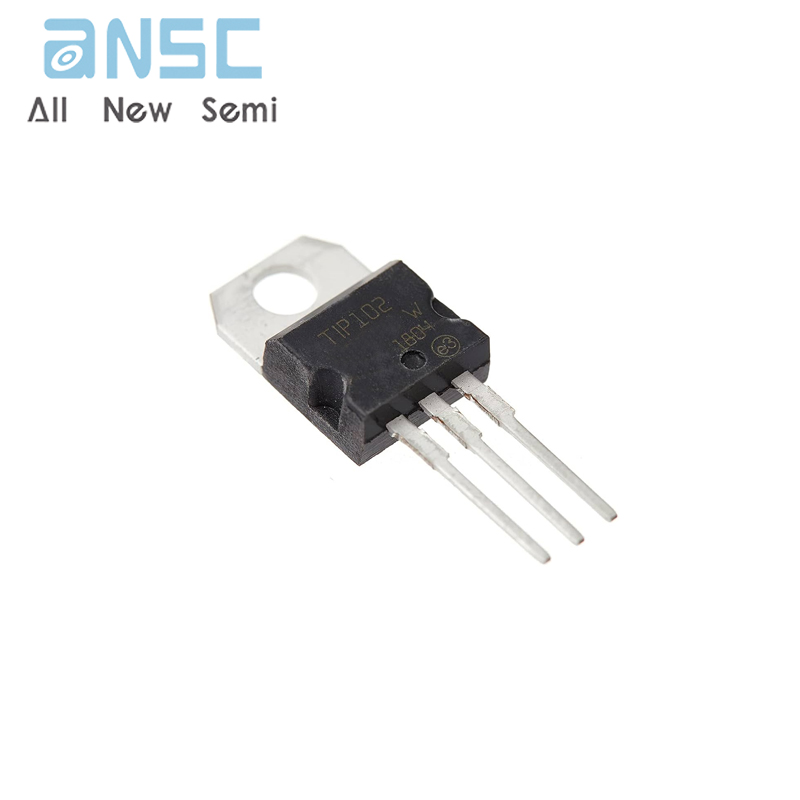

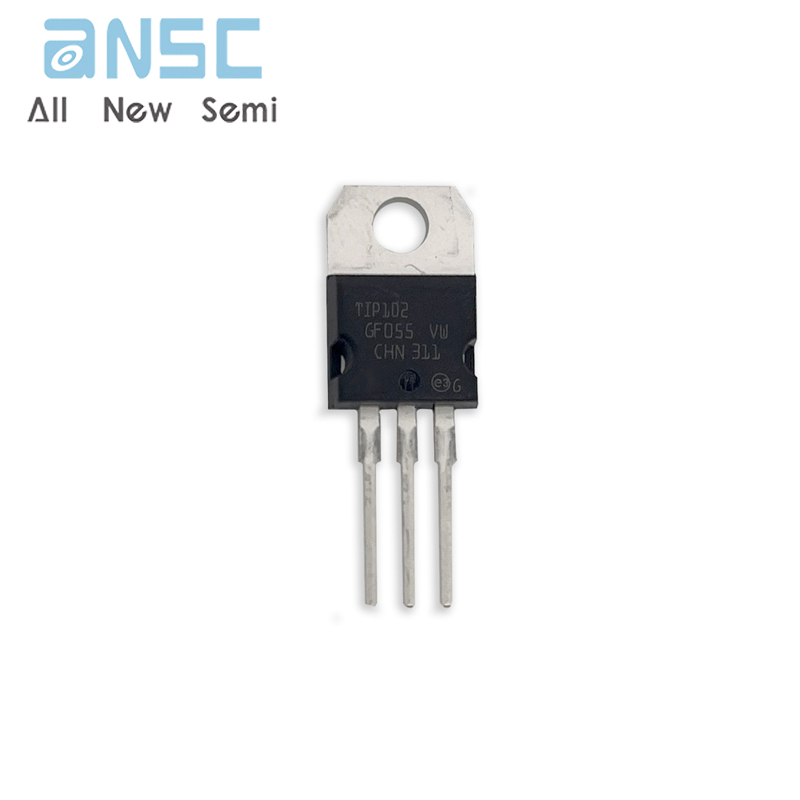

Product Photos
For more product information, please download the PDF
