Hot sale Original NVMFS5C426NWFAFT1G Transistors N-Channel 40 V 41A (Ta), 235A (Tc) 3.8W (Ta), 128W (Tc) Surface Mount
Manufacturer
Manufacturer Product Number
NVMFS5C426NWFAFT1G
Description
NVMFS5C426NWFAFT1G Transistors MOSFET N-CH 40V 41A/235A 5DFN
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
Brief Description: The NVMFS5C426NWFAFT1G is an N-Channel MOSFET, designed for automotive applications. It is a single-channel, high-power device with a maximum drain-to-source voltage of 40V and a maximum continuous drain current of 41A at 25°C.
Features:
-
High-power N-Channel MOSFET
-
Maximum drain-to-source voltage: 40V
-
Maximum continuous drain current: 41A at 25°C
-
Maximum RDS(on): 1.3mΩ at 50A, 10V
-
Power dissipation: 3.8W at 128W
-
Operating temperature: -55°C to 175°C
-
Mounting type: Surface Mount
-
Moisture sensitivity level: MSL 1 (Unlimited)
-
RoHS3 compliant and Pb-free
Application Grade: Automotive, AEC-Q101
Applications:
-
High-power switching applications in automotive systems
-
Power management in automotive systems
-
High-current applications requiring low RDS(on)
-
High-temperature applications requiring a wide operating temperature range
Product Description
| Type# | Description |
| ANSC PART# | ANSC- NVMFS5C426NWFAFT1G |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | / |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 41A (Ta), 235A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 1.3mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 65 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4300 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.8W (Ta), 128W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Mounting Type | Surface Mount, Wettable Flank |
| Supplier Device Package | 5-DFNW (4.9x5.9) (8-SOFL-WF) |
| Package / Case | 8-PowerTDFN, 5 Leads |
| Base Product Number | NVMFS5 |

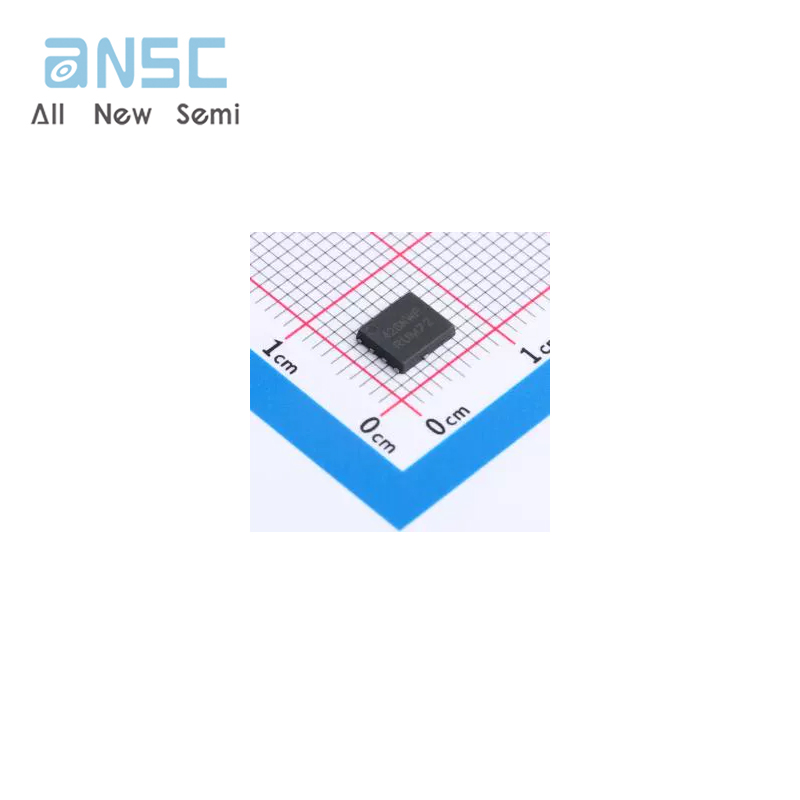

Actual image of the product

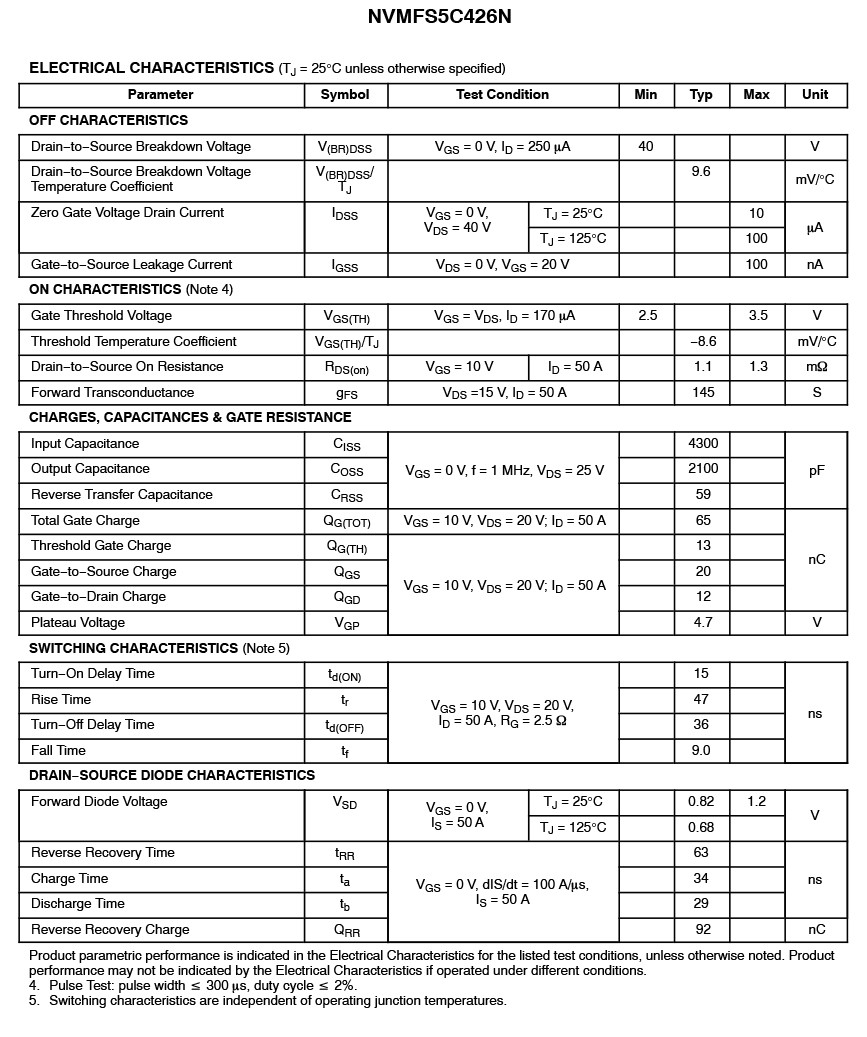

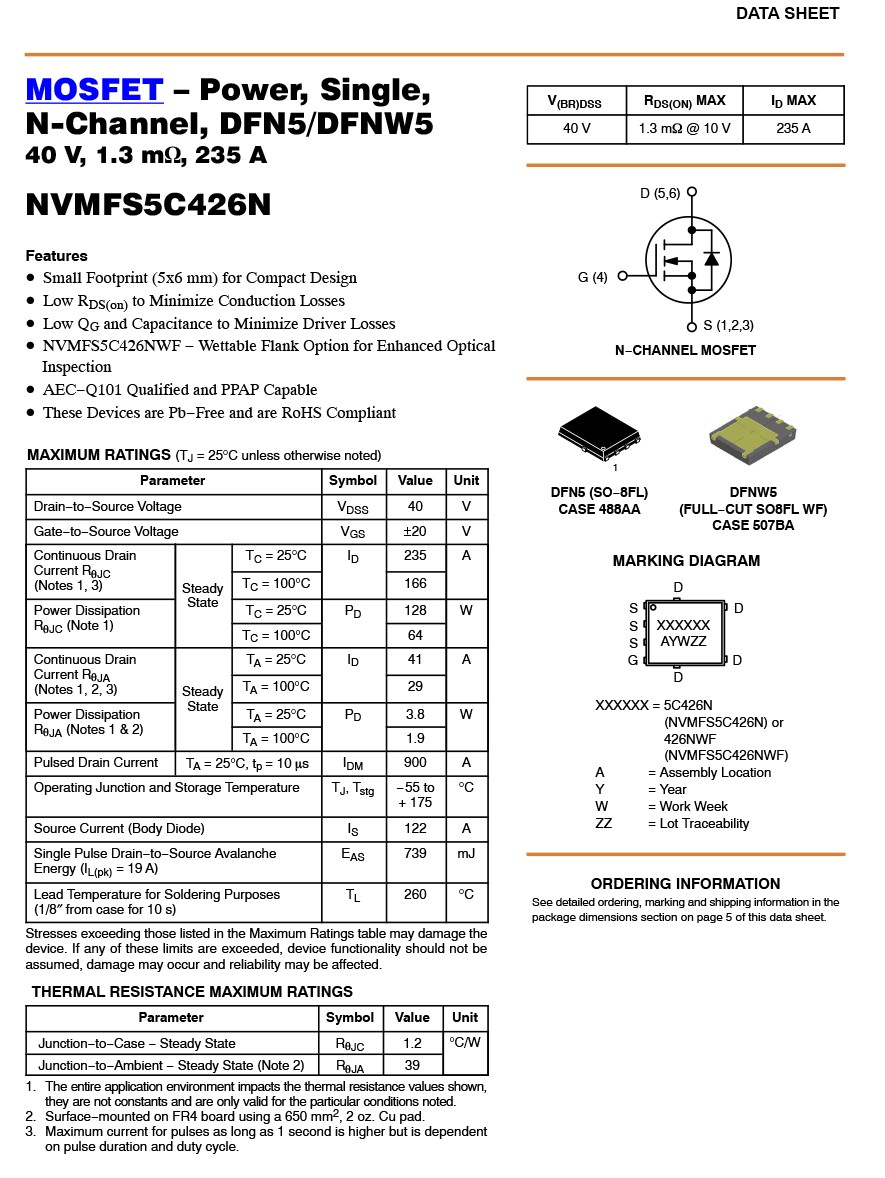

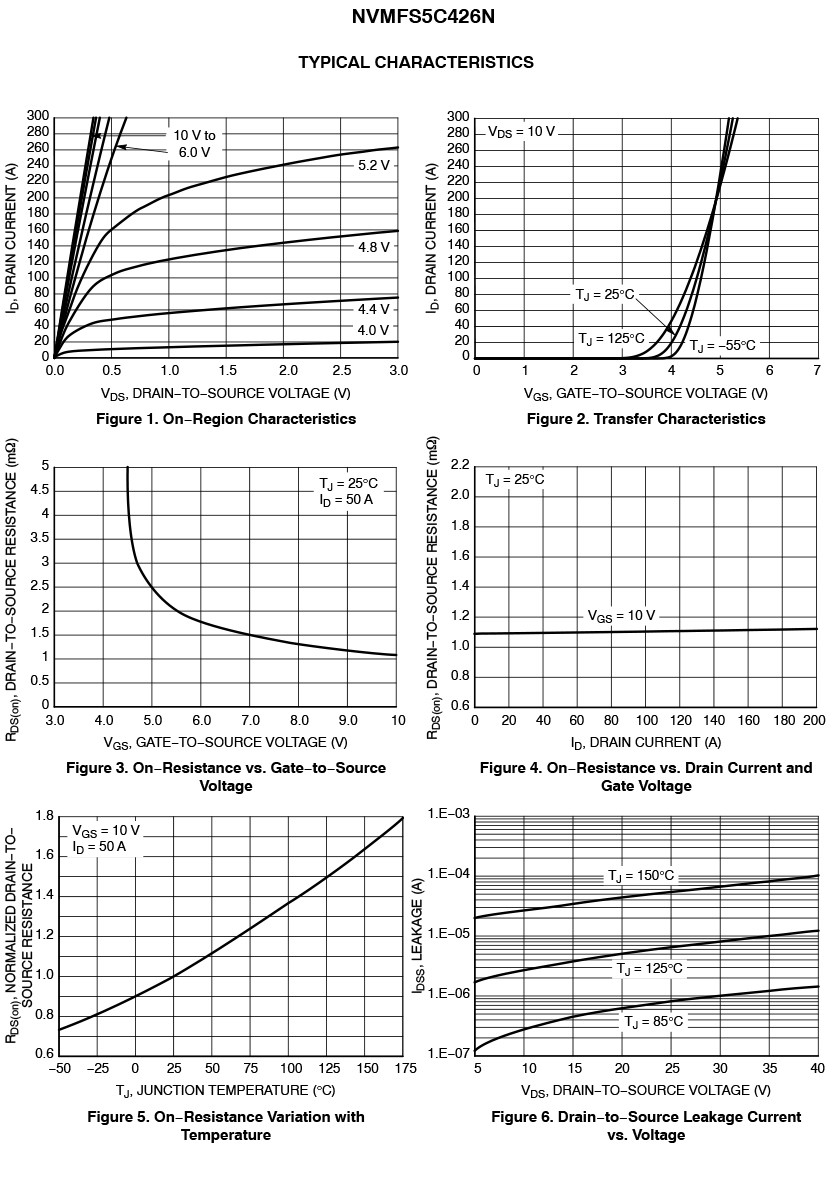

Product datasheet
For more information, please download
