Hot sale Original FCPF20N60 Transistor MOSFET N-CH 600V 20A TO220F N-Channel 600 V 20A (Tc) 39W (Tc) Through Hole TO-220F-3
Manufacturer Product Number
FCPF20N60
Description
Original FCPF20N60 Transistor MOSFET N-CH 600V 20A TO220F N-Channel 600 V 20A (Tc) 39W (Tc) Through Hole TO-220F-3
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
Description
SuperFETTM is, proprietary, new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance.
This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, and with stand extreme dv/dt rate and higher avalanche energy.Consequently, SuperFET is very suitable for various AC/DC power conversion in switching mode operation for system miniaturization and higher efficiency.
Features
• 650V @TJ = 150°C
• Typ. RDS(on) = 0.15Ω
• Ultra low gate charge (typ. Qg = 75nC)
• Low effective output capacitance (typ. Coss.eff = 165pF)
• 100% avalanche tested
Product Description
| Type | Description |
| ANSC PART# | ANSC - FCPF20N60 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | Original |
| Series | SuperFET™ |
| Packaging | Tube |
| Part Status | Not For New Designs |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 20A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 190mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 98 nC @ 10 V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 3080 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 39W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220F-3 |
| Package / Case | TO-220-3 Full Pack |
| Base Product Number | FCPF20 |

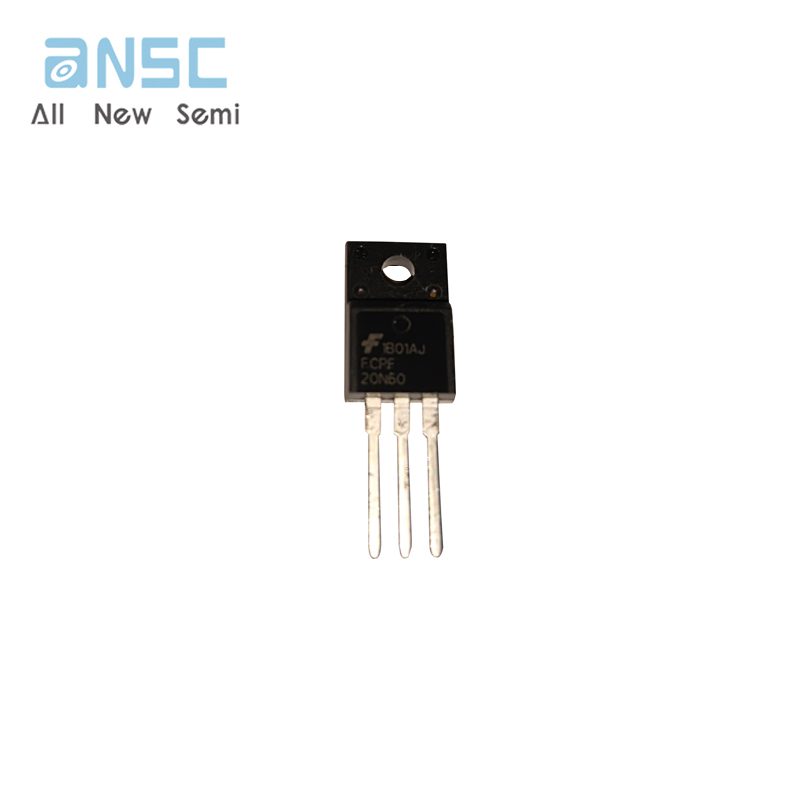

Actual image of the product

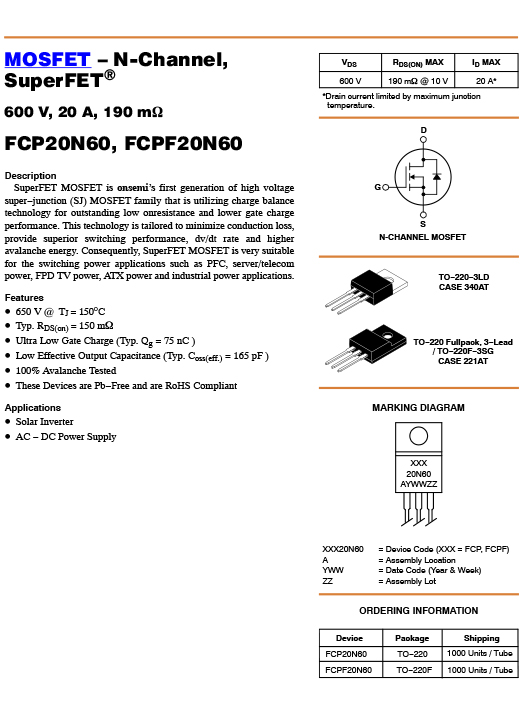

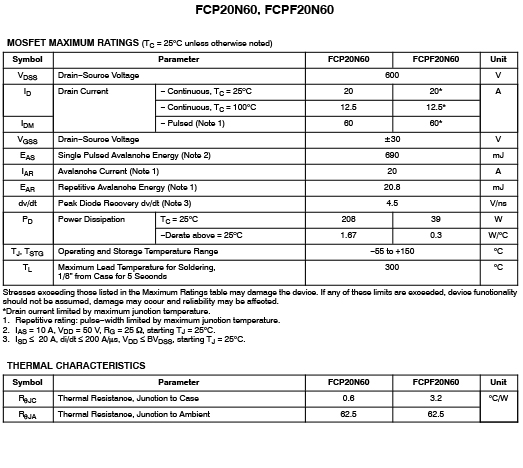

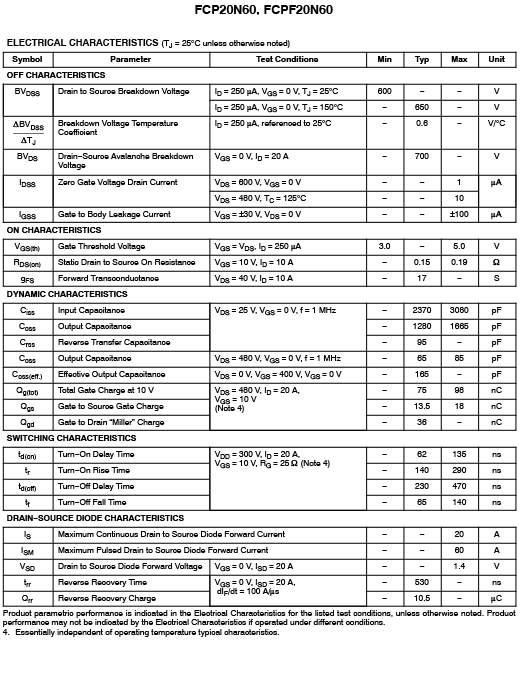

Product datasheet
For more information, please download
