Hot-selling and scarce AO3413 P-Channel Enhancement Mode Field Effect Transistor SOT23 spot stock
Manufacturer Product Number
AO3413
Description
AO3413 P-Channel Enhancement Mode Field Effect Transistor SOT23 spot stock

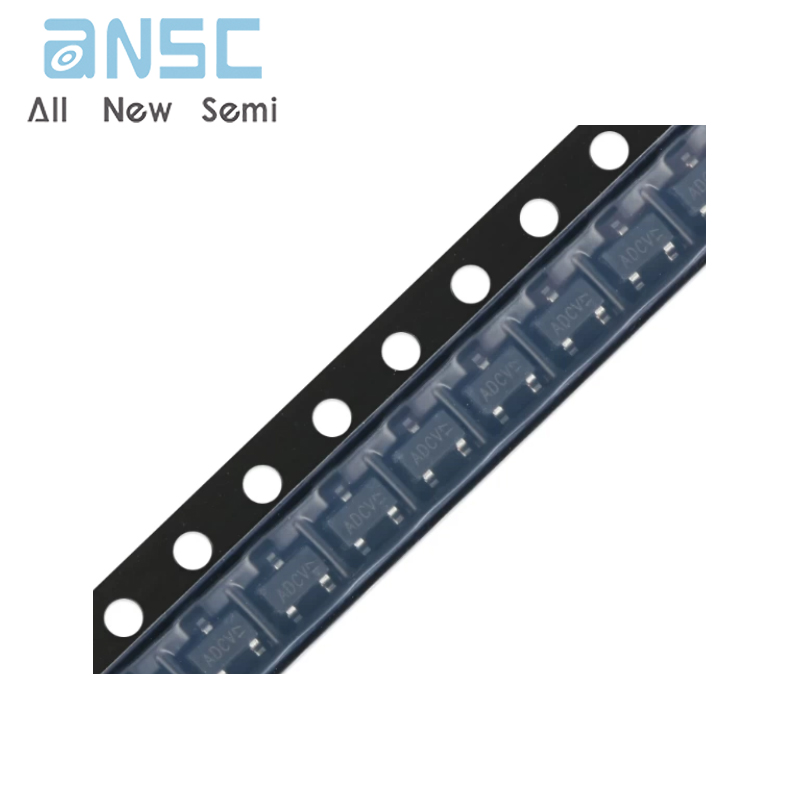

Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The AO3413 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 1.8V. This device is suitable for use as a load switch or in PWM applications.
Product Features
VDS (V) = -20V
ID = -3 A
RDS(ON) < 97mΩ (VGS = -4.5V)
RDS(ON) < 130mΩ (VGS = -2.5V)
RDS(ON) < 190mΩ (VGS = -1.8V)
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-AO3413 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id)@ 25°C | 3A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 97mOhm @ 3A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 6.1 nC @ 4.5 V |
| Vgs (Max) | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 540 pF @ 10 V |
| Power Dissipation (Max) | 1.4W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-3 |
| Package / Case | 3-SMD, SOT-23-3 Variant |
| Base Product Number | AO34 |

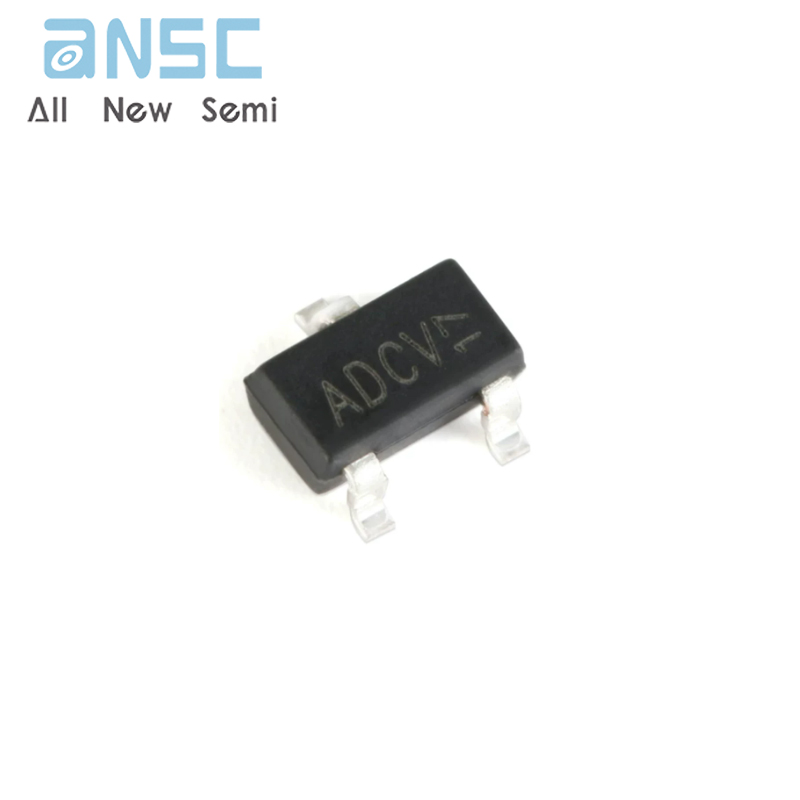

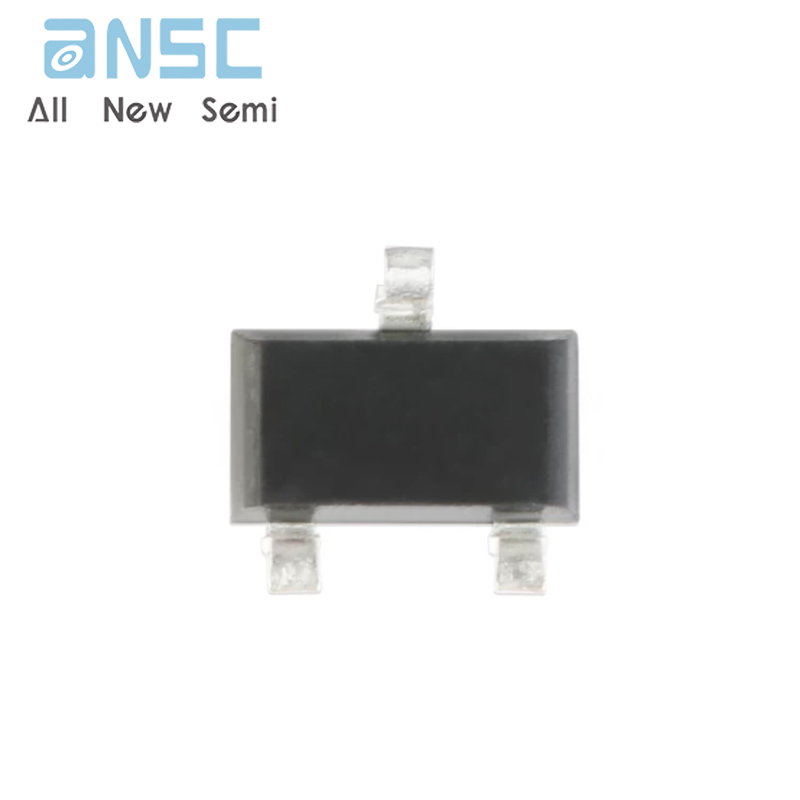

Product Photos
For more product information, please download the PDF
