Hot sale original 2N3054 Power Bipolar Transistor 4A I(C) 60V V(BR)CEO 1-Element NPN Silicon TO-213AA Metal 2 Pin
Manufacturer Product Number
2N3054
Description
2N3054 Power Bipolar Transistor 1-Element NPN Silicon TO-213AA
Package Condition
Original
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Applications
2N3054 applications of single MOSFETs transistors.
Motor drives and Uninterruptible Power Supplies
Micro Solar Inverter
DC/DC converters
Power Tools
Motor Drives and Uninterruptible Power Supples
Synchronous Rectification
Battery Protection Circuit
Telecom 1 Sever Power Supplies
Industrial Power Supplies
PFC stages, hard switching PWM stages and resonant switching
Product Description
| Type | Description |
| PART# | 2N3054 |
| Manufacturer | / |
| Case Connection | COLLECTOR |
| Collector Current-Max (IC) | 4 A |
| Collector-Emitter Voltage-Max | 60 V |
| Configuration | SINGLE |
| DC Current Gain-Min (hFE) | 25 |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Package Body Material | METAL |
| Package Shape | ROUND |
| Package Style | FLANGE MOUNT |
| Polarity/Channel Type | NPN |
| Power Dissipation Ambient-Max | 75 W |
| Qualification Status | Not Qualified |
| Surface Mount | NO |
| Terminal Finish | TIN LEAD |
| Terminal Form | PIN/PEG |
| Terminal Position | BOTTOM |
| Transistor Application | SWITCHING |
| Transistor Element Material | SILICON |
| Transition Frequency-Nom (fT) | 3 MHz |

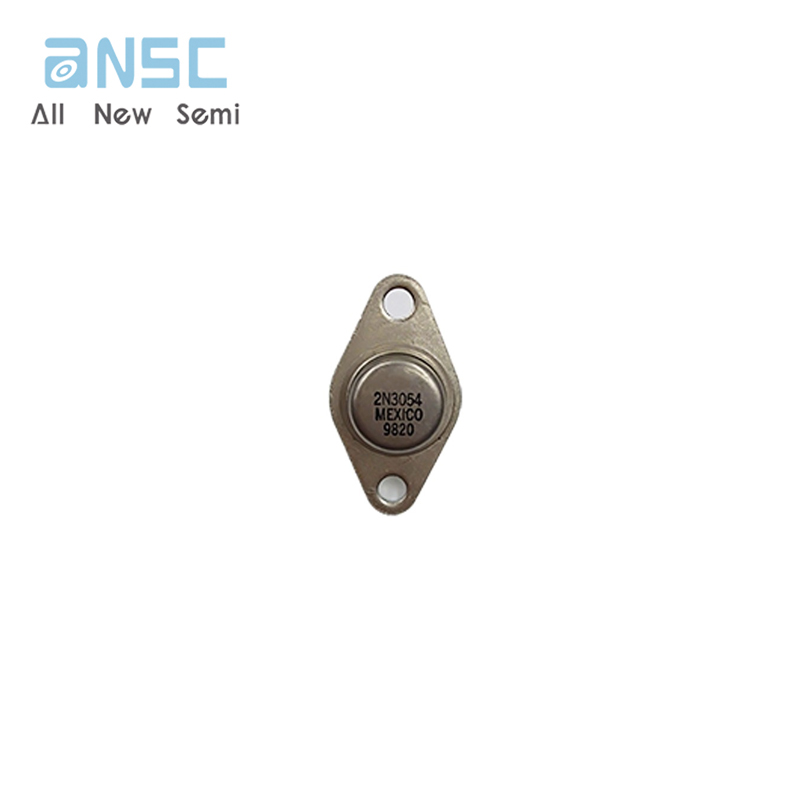

Product Photos

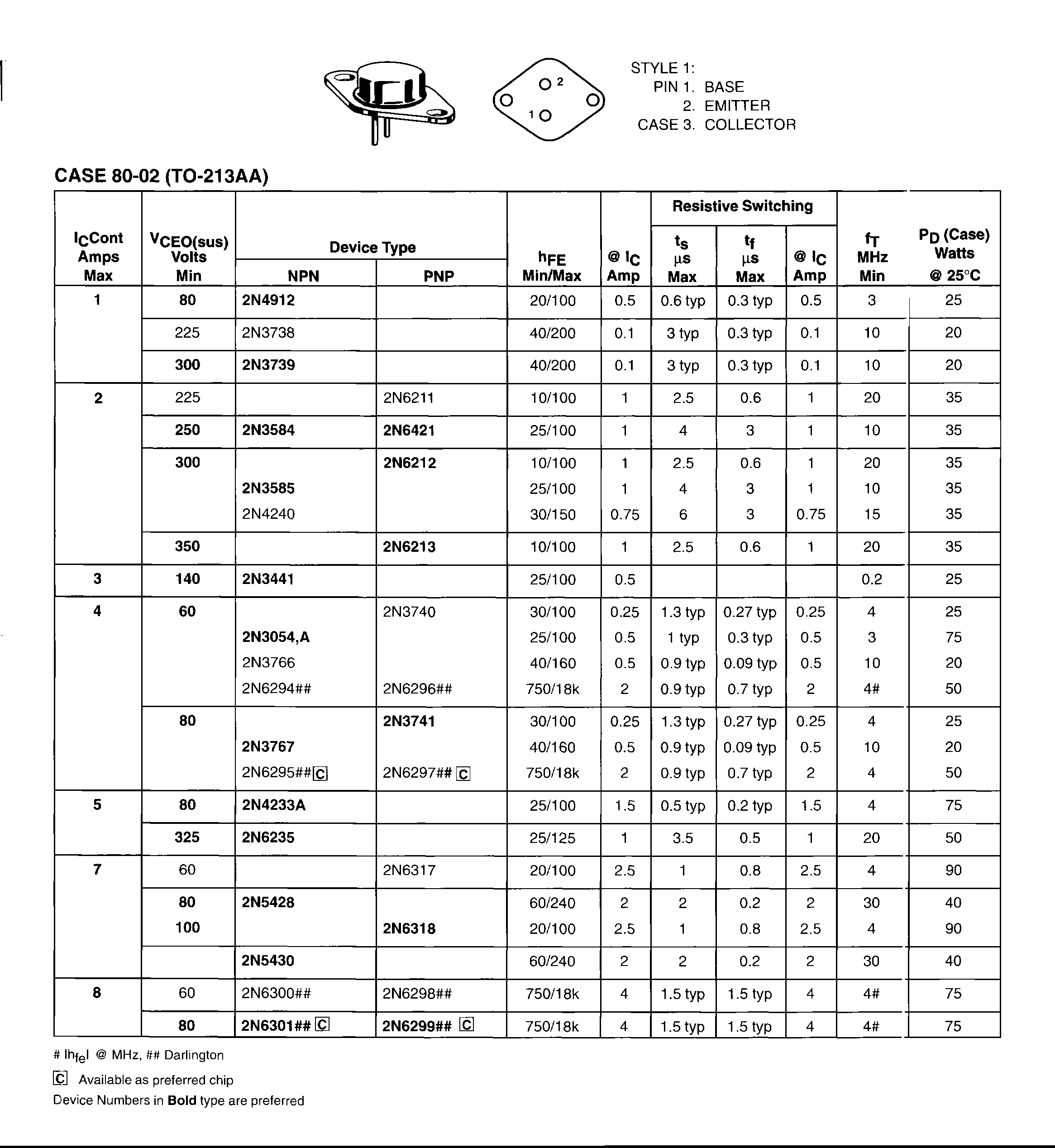

Product datasheet
