Hot offer BOM distribution service electronic components Silicon PNP epitaxial planer type 2SB976 Professional supply Original

Manufacturer Product Number

2SB976

Description

2SB976 Small Signal Bipolar Transistor 5A I(C) 18V V(BR)CEO 1-Element PNP Silicon TO-92

Package Condition

Original

Datasheet

2SB976

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

Silicon PNP epitaxial planar type

For low-frequency output amplification

For DC-DC converter

For stroboscope

■ Features

• Low collector-emitter saturation voltage VCE(sat)

• Large collector current IC

Product Description

Type	Description
ANSC PART#	ANSC-2SB976
Ihs Manufacturer	/
Part Package Code	TO-92
Package Description	CYLINDRICAL, O-PBCY-T3
Pin Count	3
Collector Current-Max (IC)	5 A
Collector-Emitter Voltage-Max	18 V
Configuration	SINGLE
DC Current Gain-Min (hFE)	125
Number of Elements	1
Number of Terminals	3
Operating Temperature-Max	150 °C
Package Body Material	PLASTIC/EPOXY
Package Shape	ROUND
Package Style	CYLINDRICAL
Polarity/Channel Type	PNP
Power Dissipation-Max (Abs)	0.75 W
Qualification Status	Not Qualified
Surface Mount	NO
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Position	BOTTOM
Transistor Application	SWITCHING
Transistor Element Material	SILICON
Transition Frequency-Nom (fT)	120 MHz

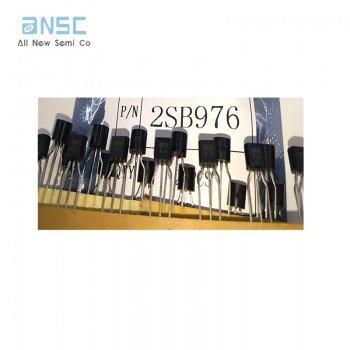

Actual image of the product

2SB976
