Hot sale Original CSD16401Q5 MOSFET N-CH 25V 38A/100A 8VSON N-Channel 25 V 38A (Ta), 100A (Tc) 3.1W (Ta) Surface Mount

Manufacturer Product Number
CSD16401Q5
Description

CSD16401Q5 MOSFET N-CH 25V 38A/100A 8VSON N-Channel 25 V 38A (Ta), 100A (Tc) 3.1W (Ta) Surface Mount 8-VSON-CLIP (5x6)

Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

​

1 Features
• Ultra-Low Qg and Qgd
• Low Thermal Resistance
• Avalanche Rated
• SON 5-mm × 6-mm Plastic Package

2 Applications
• Point-of-Load Synchronous Buck Converter
for Applications in Networking, Telecom and
Computing Systems
• Optimized for Synchronous FET Applications

3 Description
This 25-V, 1.3-mΩ, 5-mm × 6-mm SON NexFET™
power MOSFET has been designed to minimize
losses in power conversion applications.

Product Description

Type Description
ANSC PART# ANSC- CSD16401Q5
Category Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
Mfr Original
Series NexFET™
Packaging Tape & Reel (TR)
Cut Tape (CT)
/
Part Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 25 V
Current - Continuous Drain (Id) @ 25°C 38A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 1.6mOhm @ 40A, 10V
Vgs(th) (Max) @ Id 1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 29 nC @ 4.5 V
Vgs (Max) +16V, -12V
Input Capacitance (Ciss) (Max) @ Vds 4100 pF @ 12.5 V
FET Feature -
Power Dissipation (Max) 3.1W (Ta)
Operating Temperature -55°C ~ 150°C (TJ)
Grade -
Qualification -
Mounting Type Surface Mount
Supplier Device Package 8-VSON-CLIP (5x6)
Package / Case 8-PowerTDFN
Base Product Number CSD16401

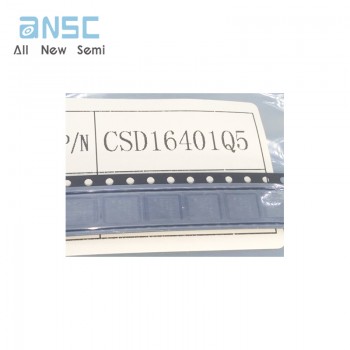

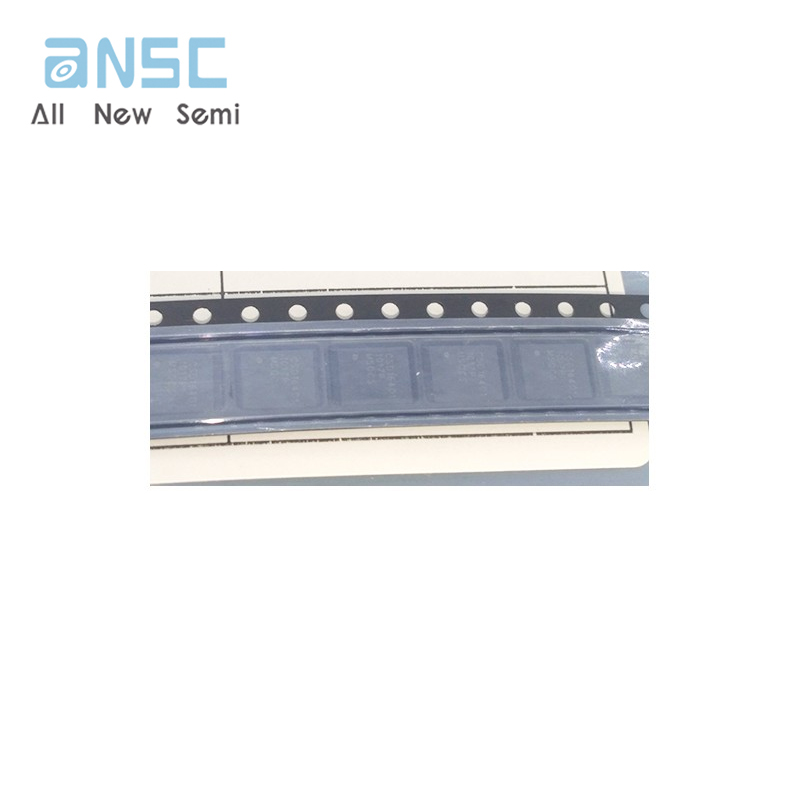

Actual image of the product

CSD16401Q5

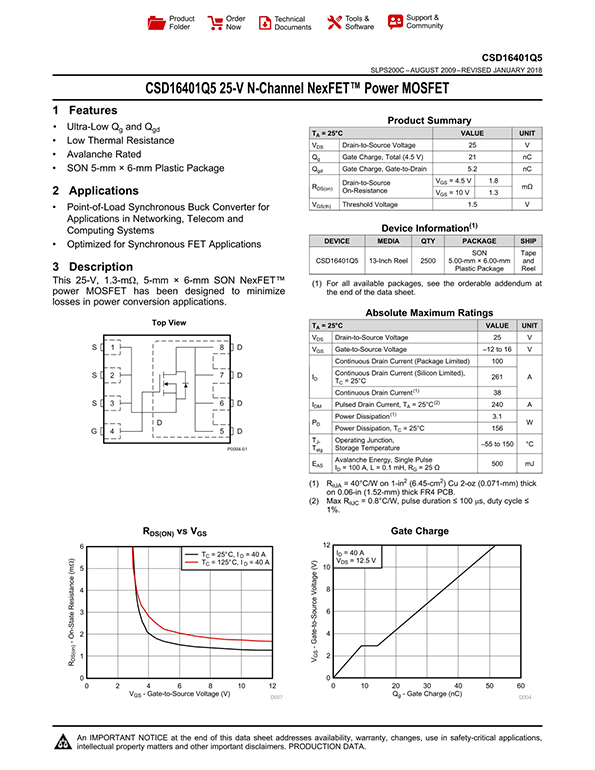

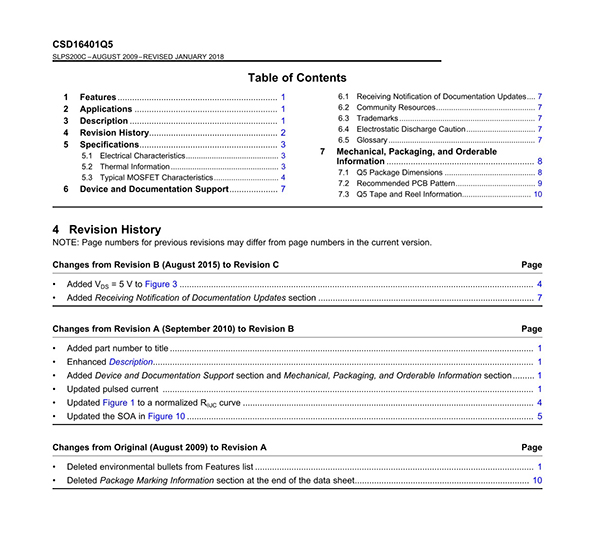

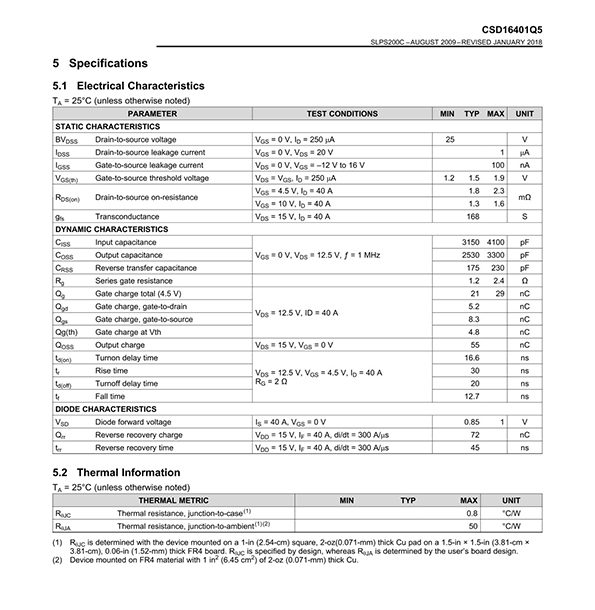

Product datasheet
