Hot sale original electronics PDTA143TT Resistor Equipped Transistors (RETs) PNP resistor-equipped transistors 4.7 kOhm

Manufacturer Product Number

PDTA143TT

Description

PDTA143TT Resistor Equipped Transistors (RETs) PNP resistor-equipped transistors 4.7 kOhm

Package Condition

Original

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

DESCRIPTION

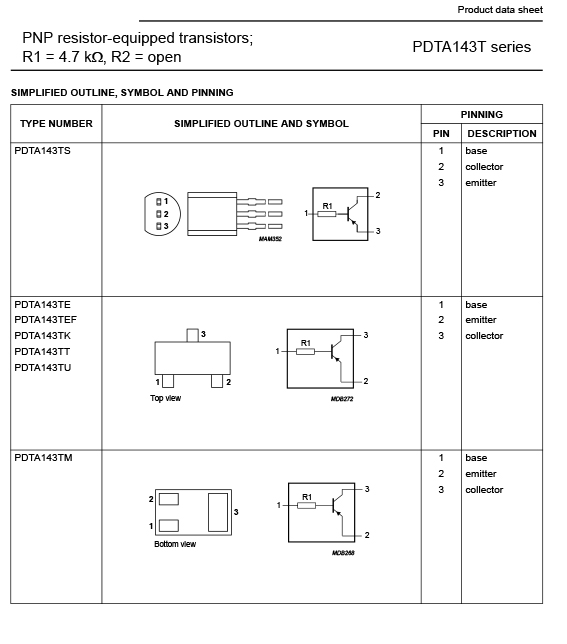

PNP resistor-equipped transistor (see “Simplified outline, symbol and pinning” for package details).

FEATURES

• Built-in bias resistors

• Simplified circuit design

• Reduction of component count

• Reduced pick and place costs.

Product Description

Type	Description
ANSC PART#	ANSC- PDTA143TT
Ihs Manufacturer	Original
Part Package Code	D2PAK
Package Description	PLASTIC PACKAGE-3
Pin Count	3
Reach Compliance Code	compliant
ECCN Code	EAR99
Additional Feature	BUILT-IN BIAS RESISTORS
Collector Current-Max (IC)	0.1 A
Collector-Emitter Voltage-Max	50 V
Configuration	SINGLE WITH BUILT-IN RESISTOR
DC Current Gain-Min (hFE)	200
Moisture Sensitivity Level	1
Number of Elements	1
Number of Terminals	3
Operating Temperature-Max	150 °C
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE
Peak Reflow Temperature (Cel)	260
Polarity/Channel Type	PNP
Power Dissipation-Max (Abs)	0.25 W
Qualification Status	Not Qualified
Surface Mount	YES
Terminal Finish	Tin (Sn)
Terminal Form	GULL WING
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Transistor Application	SWITCHING
Transistor Element Material	SILICON

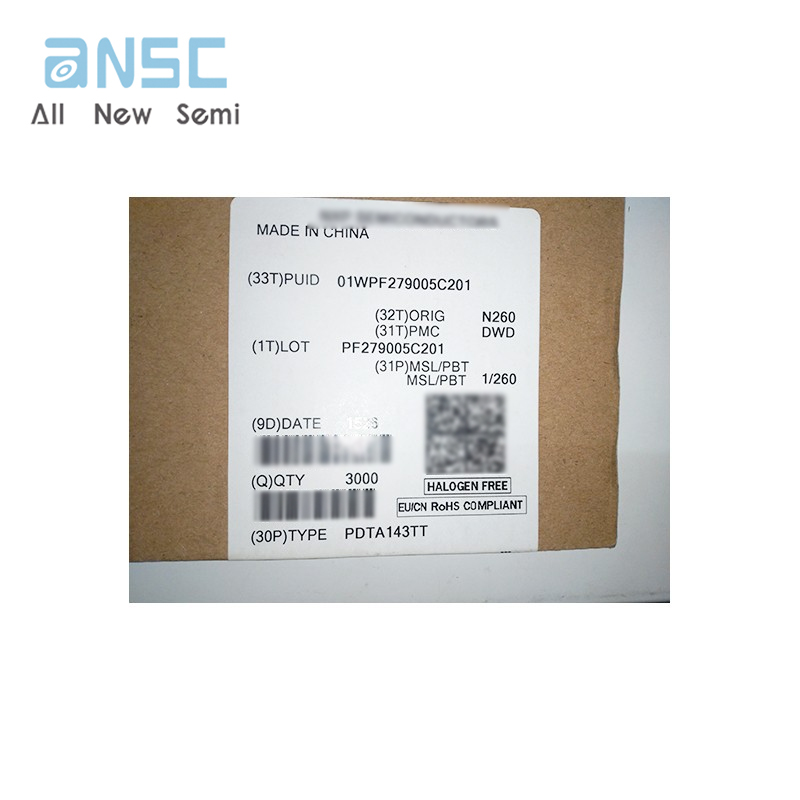

Actual image of the product

PDTA143TT

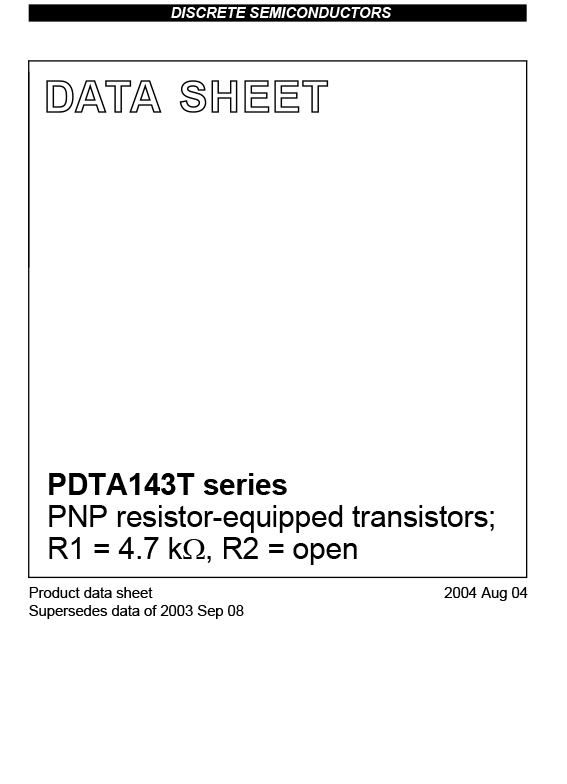

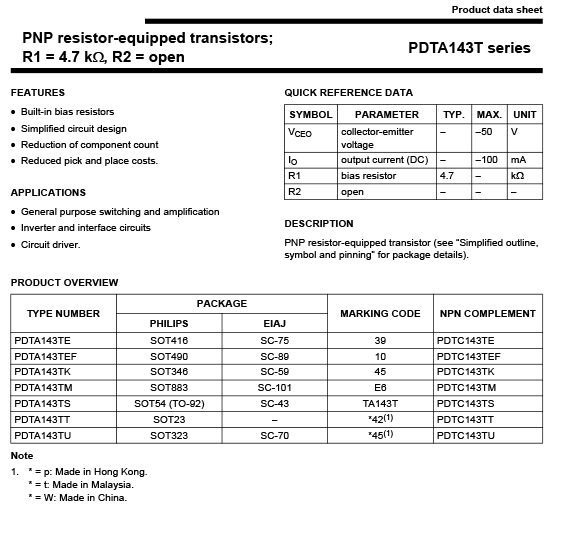

Product datasheet

For more information, please download
