Hot sale Original IXFH14N100Q2 MOSFET Transistors N-Channel 1000V 14A(Tc) 500W(Tc) Through Hole

Product Overview

An avalanche break down occurs, and the applied energy is called avalanche energy, with a rating of 2500 mJ Avalanche energy.An op amp's input capacitance is defined as the capacitance between both of its input terminals with either input grounded, and 2800pF @ 25V is its maximum input capacitance.The drain current is the maximum continuous current the device can conduct, and this device has 14A continuous drain current (ID).A drainage-to-source breakdown voltage corresponds to the voltage at which a specified value of ID flows, where VGS is 1kV, and this device has a drainage-to-source breakdown voltage of 1kVV.Peak drain current is 56A, which is the maximum pulsed drain current.Before drain current conduction begins, the device's input capacitance must be charged, so the delay time is 12 ns.An FET transistor's gate-source voltage, VGS, indicates how much voltage is applied across the transistor's gate-source terminal and it can range from 30V to 1.In this case, the threshold voltage of the transistor is 5V, which means that it will not activate any of its functions when its threshold voltage reaches 5V.For this transistor to work, a voltage 1000V is required between drain and source (Vdss).

Product Features

the avalanche energy rating (Eas) is 2500 mJ

a continuous drain current (ID) of 14A

a drain-to-source breakdown voltage of 1kV voltage

based on its rated peak drain current 56A.

a threshold voltage of 5V

a 1000V drain to source voltage (Vdss)

Product Applications

IXFH14N100Q2 applications of single MOSFETs transistors.

AC-DC Power Supply

Synchronous Rectification for ATX 1 Server I Telecom PSU

Motor drives and Uninterruptible Power Supplies

Micro Solar Inverter

DC/DC converters

Power Tools

Motor Drives and Uninterruptible Power Supples

Synchronous Rectification

Battery Protection Circuit

Telecom 1 Sever Power Supplies

Product Description

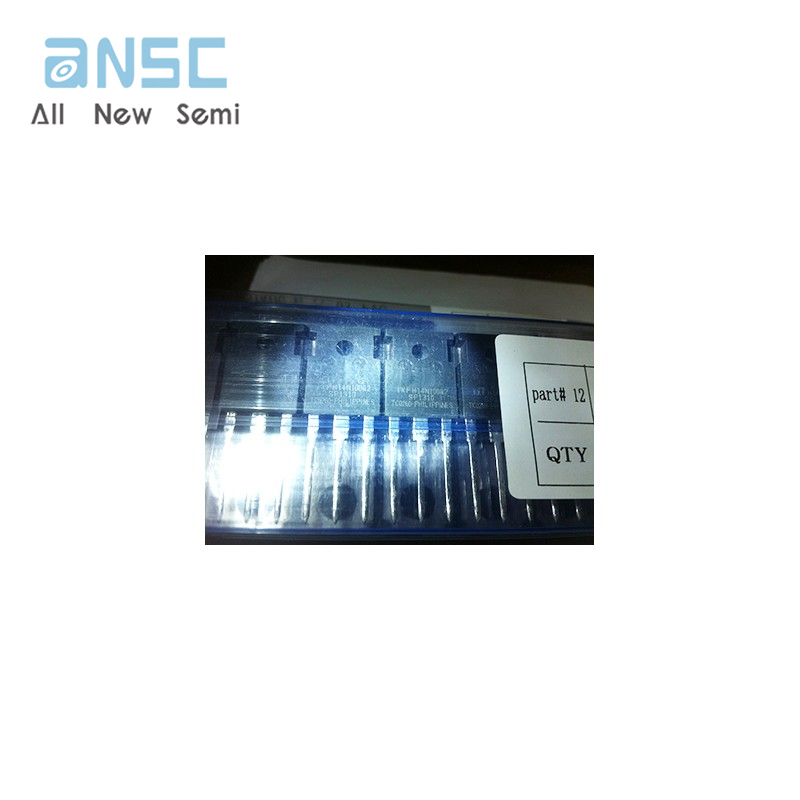

Actual image of the product

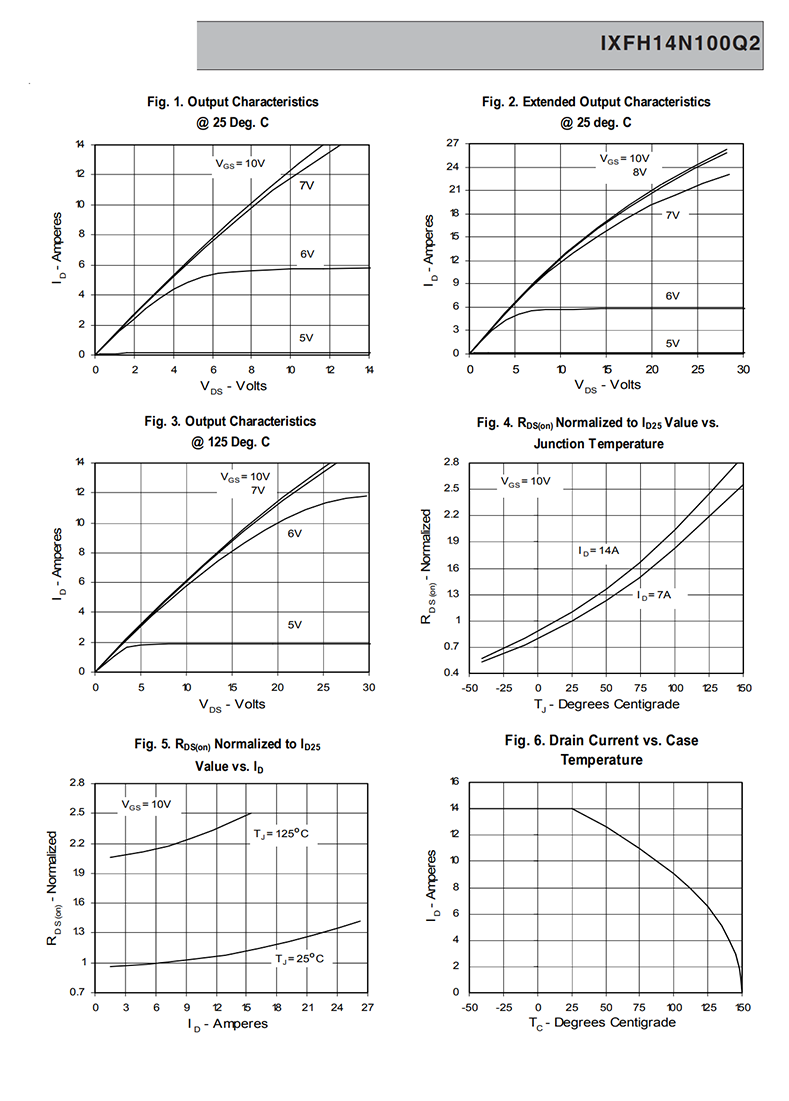

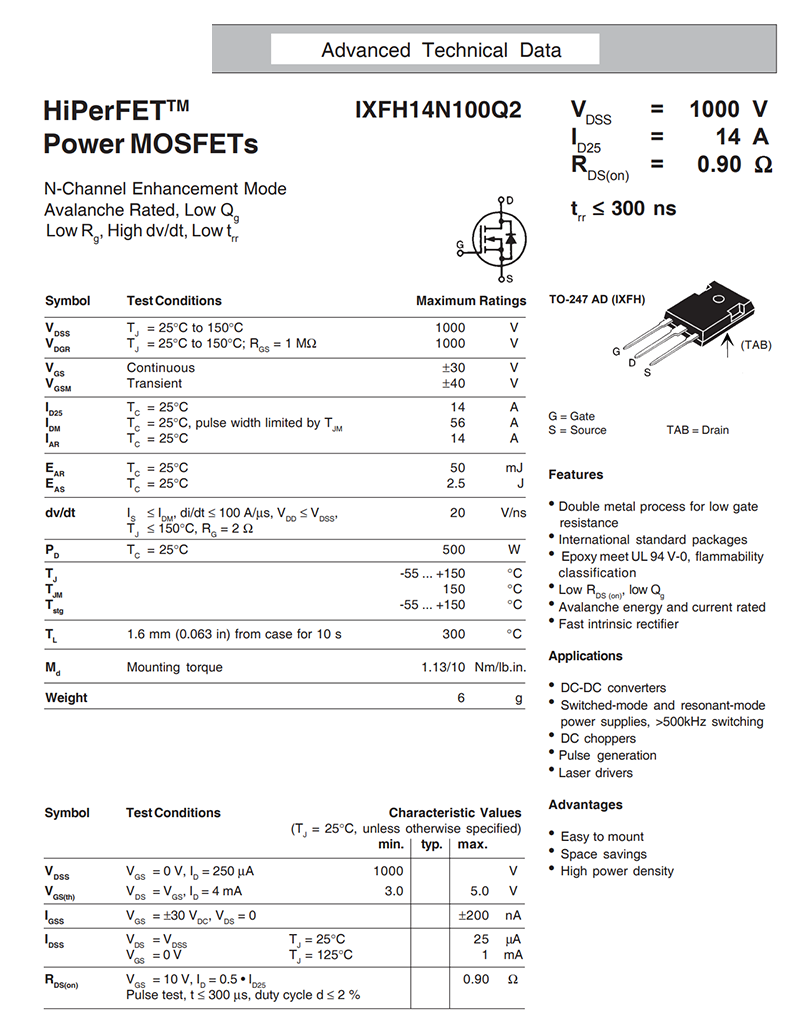

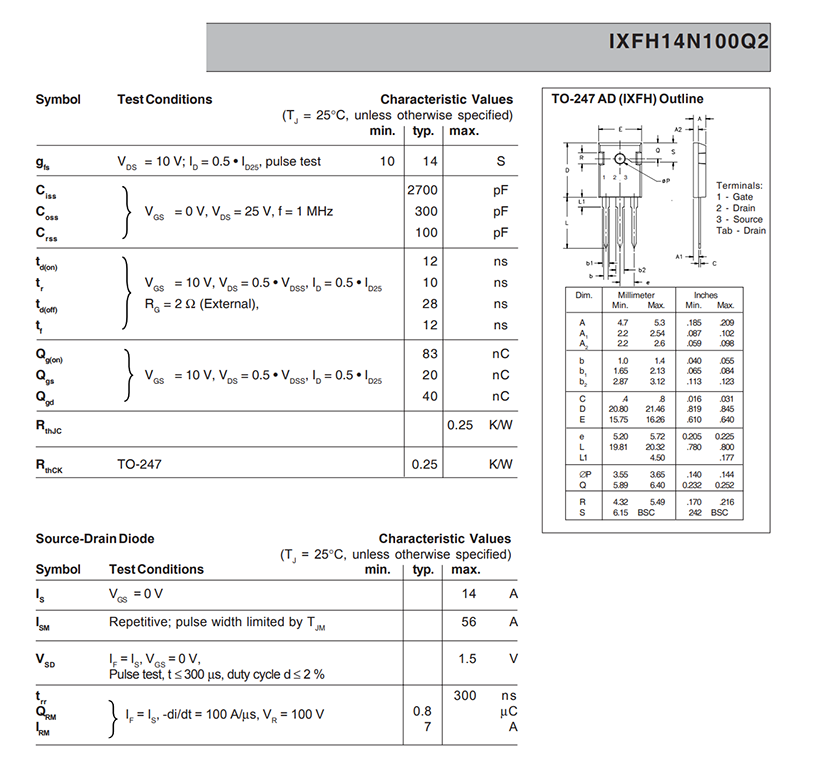

Product datasheet

For more information, please download
