Hot sale original TN5325N8-G MOSFET N-CH 250V 316MA TO243AA N-Channel 250 V 316mA (Tj) 1.6W (Ta) Surface Mount TO-243AA (SOT-89)
Manufacturer Product Number
TN5325N8-G
Description
TN5325N8-G Transistors MOSFET N-CH 250V 316MA TO243AA
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| General Description This low threshold, enhancement-mode (normally-off) transistor utilizes a vertical DMOS structure and Supertex’s well-proven, silicon-gate manufacturing process. This combination produces a device with the power handling capabilities of bipolar transistors and the high input impedance and positive temperature coefficient inherent in MOS devices. Characteristic of all MOS structures, this device is free from thermal runaway and thermally-induced secondary breakdown. Features ► Low threshold (2.0V max.) ► High input impedance and high gain ► Free from secondary breakdown ► Low CISS and fast switching speeds Applications ► Logic level interfaces - ideal for TTL and CMOS ► Solid state relays ► Battery operated systems ► Photo voltaic drives ► Analog switches ► General purpose line drivers ► Telecom switches |
Product Description
| Type# | Description |
| ANSC PART# | ANSC-TN5325N8-G |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | / |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 250 V |
| Current - Continuous Drain (Id) @ 25掳C | 316mA (Tj) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 7Ohm @ 1A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 1mA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 110 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.6W (Ta) |
| Operating Temperature | - |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-243AA (SOT-89) |
| Package / Case | TO-243AA |
| Base Product Number | TN5325 |

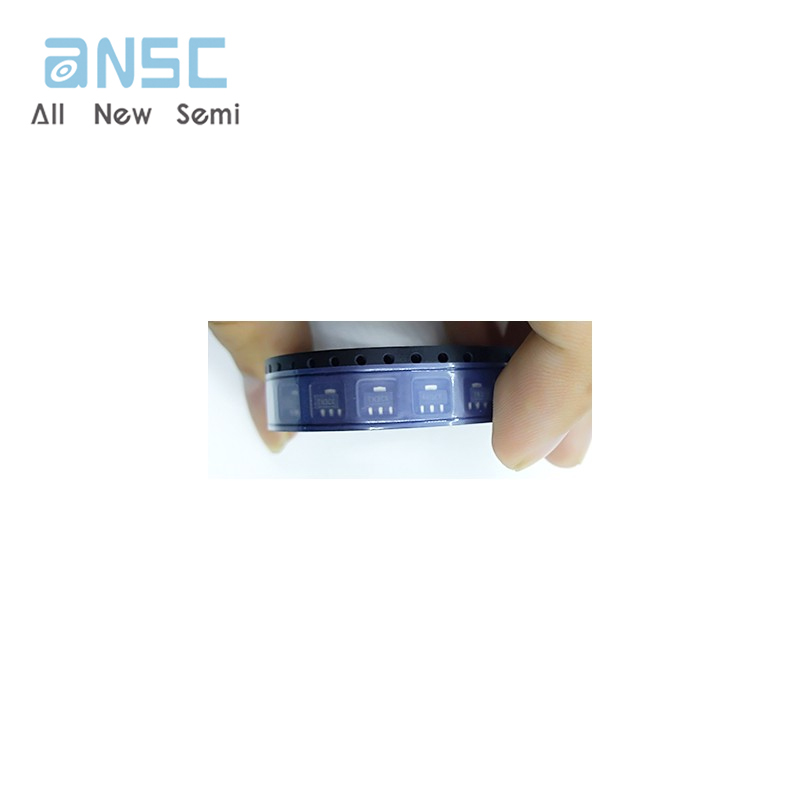

Actual image of the product

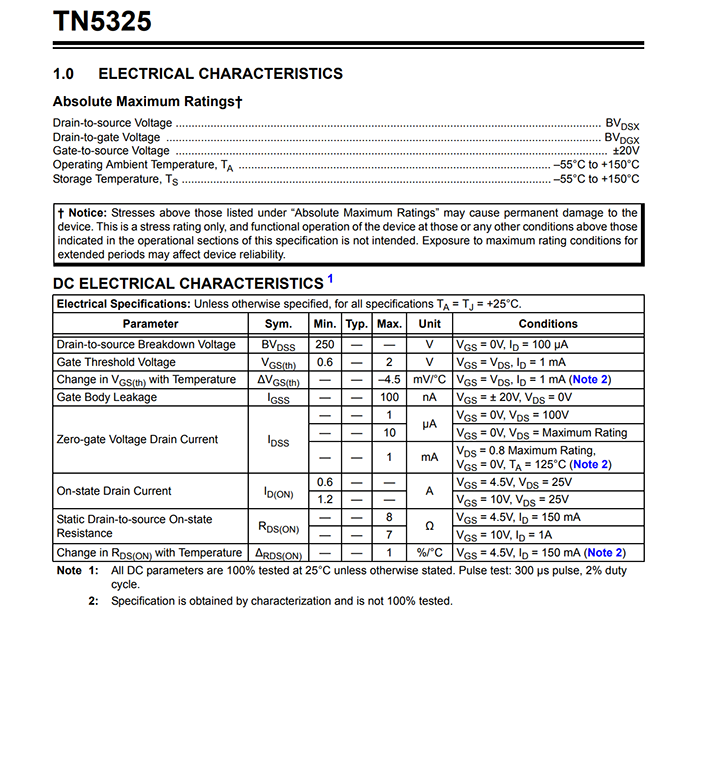

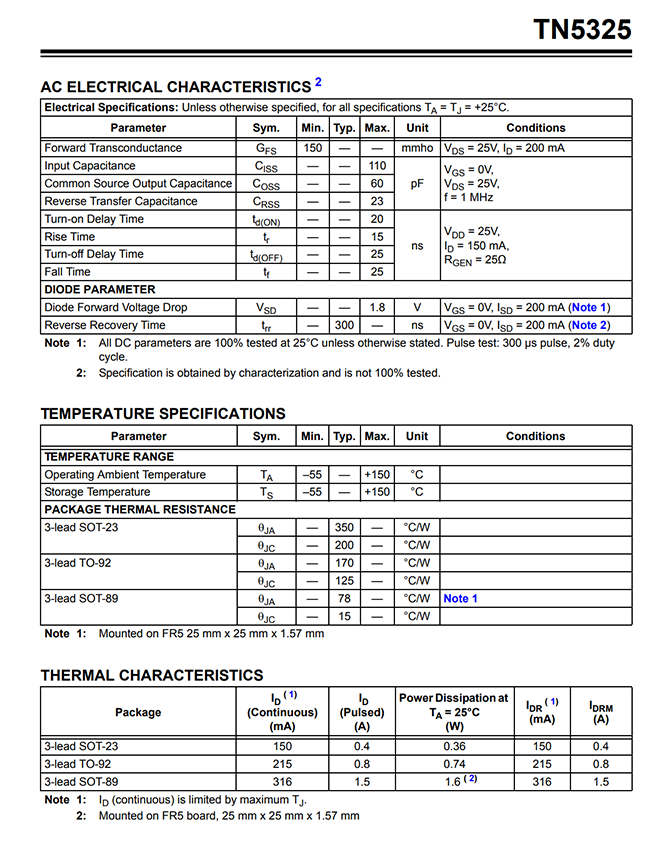

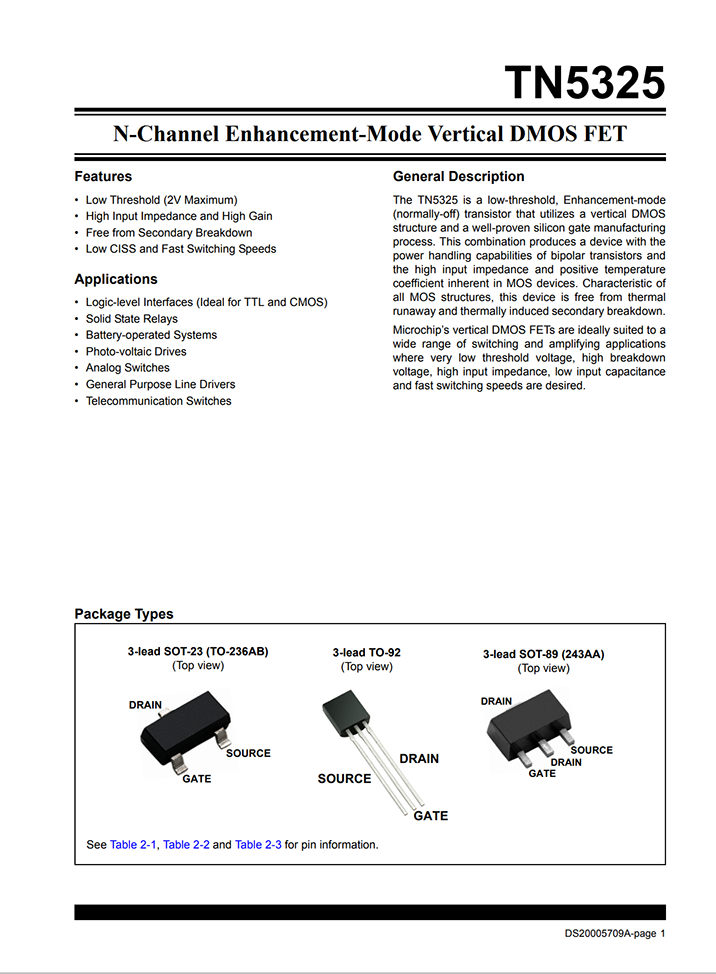

Product datasheet
For more information, please download
