Hot sale Original BSS84PH6433XTMA1 Transistor MOSFET P-Channel 60 V 170mA (Ta) 360mW (Ta) Surface Mount PG-SOT23
Manufacturer
Manufacturer Product Number
BSS84PH6433XTMA1
Description
Original BSS84PH6433XTMA1 Transistor MOSFET P-CH 60V 170MA SOT23-3 P-Channel 60 V 170mA (Ta) 360mW (Ta) Surface Mount PG-SOT23
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Product Description
BSS84PH6433XTMA1 is a type of SIPMOS? small-signal transistor manufactured by Infineon Technologies for automotive applications. It acts as a variable current switch that can control the output current based on the input voltage. It is the key active component of all modern electrical appliances and is one of the most important semiconductor devices. Its amplification and switching functions have led to a leap in electronic technology. The appearance of these transistors laid the foundation for the generation of integrated circuits, microprocessors, and computer memory.
Product Features
Ultra logic level
Avalanche rated
Enhancement mode
dv/dt rated
Available in the PG-SOT-23 package
Product Applications
DC-DC converter
Automotive applications
Product Description
|
Type |
Description |
|---|---|
|
ANSC PART# |
ANSC - BSS84PH6433XTMA1 |
|
Category |
Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs |
|
Mfr |
Infineon Technologies |
|
Series |
SIPMOS® |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Obsolete |
|
FET Type |
P-Channel |
|
Technology |
MOSFET (Metal Oxide) |
|
Drain to Source Voltage (Vdss) |
60 V |
|
Current - Continuous Drain (Id) @ 25°C |
170mA (Ta) |
|
Drive Voltage (Max Rds On, Min Rds On) |
4.5V, 10V |
|
Rds On (Max) @ Id, Vgs |
8Ohm @ 170mA, 10V |
|
Vgs(th) (Max) @ Id |
2V @ 20µA |
|
Gate Charge (Qg) (Max) @ Vgs |
1.5 nC @ 10 V |
|
Vgs (Max) |
±20V |
|
Input Capacitance (Ciss) (Max) @ Vds |
19 pF @ 25 V |
|
FET Feature |
- |
|
Power Dissipation (Max) |
360mW (Ta) |
|
Operating Temperature |
-55°C ~ 150°C (TJ) |
|
Mounting Type |
Surface Mount |
|
Supplier Device Package |
PG-SOT23 |
|
Package / Case |
TO-236-3, SC-59, SOT-23-3 |
|
Base Product Number |
BSS84 |

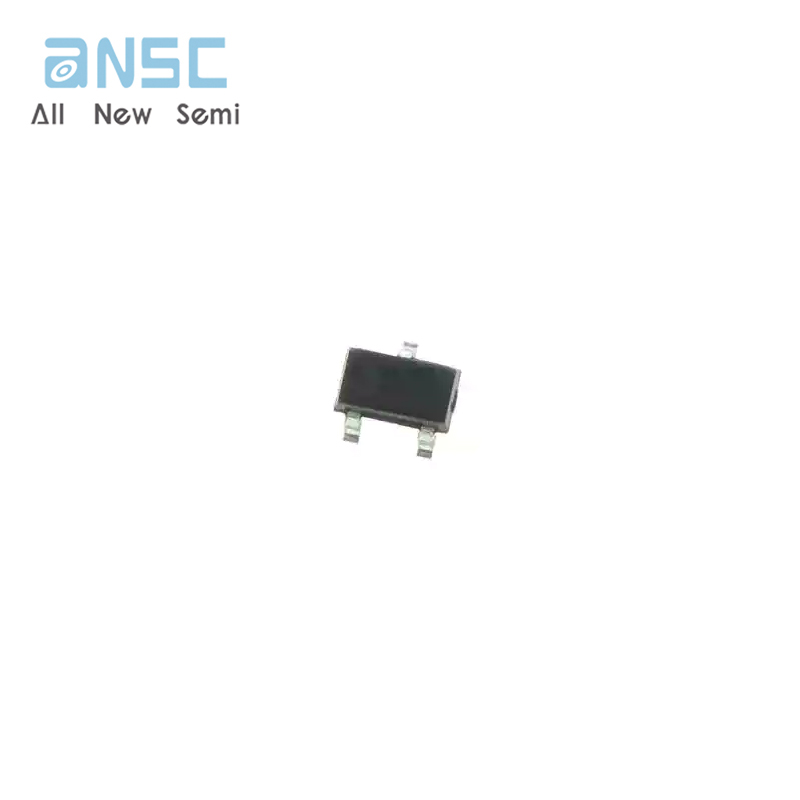

Actual image of the product

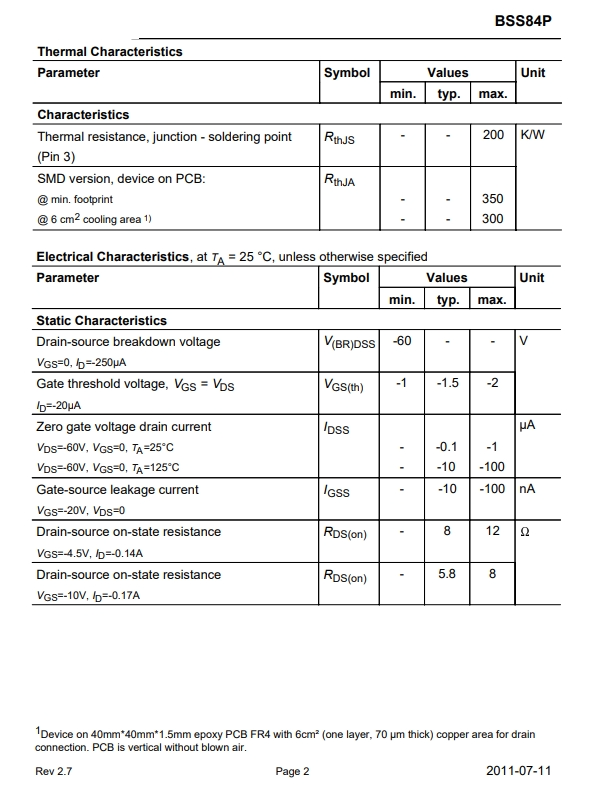

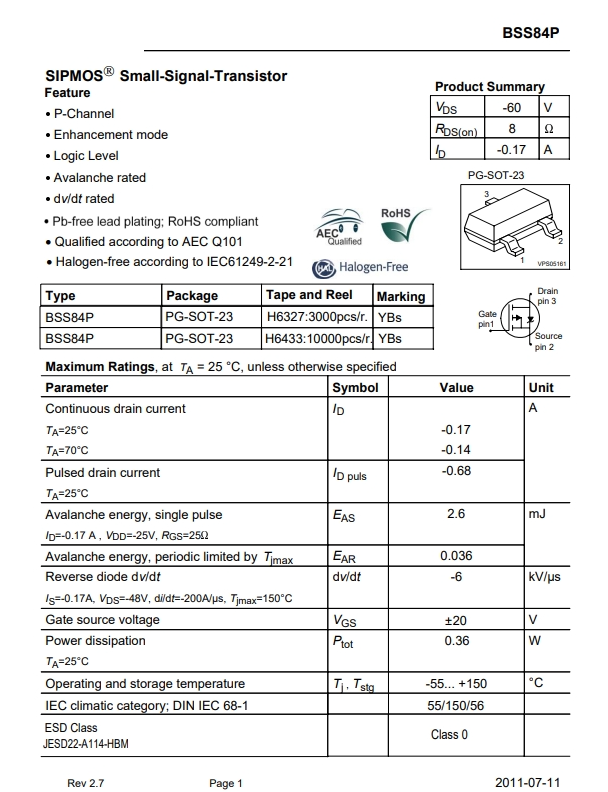

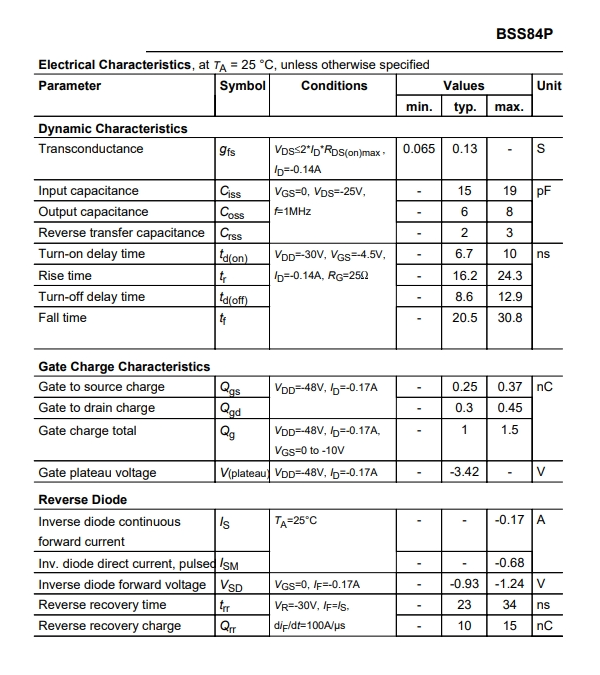

Product datasheet
For more information, please download
