You can contact me for the best price CM900HG-130X Transistor Insulated Gate Bipolar Transistor MODULE Hot sale Original
Manufacturer Product Number
CM900HG-130X
Description
CM900HG-130X Insulated Gate Bipolar Transistor
Package Condition
Original
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
| Type# | Description |
| ANSC PART# | ANSC - CM900HG-130X |
| Manufacturer | / |
| Package Description | / |
| Samacsys Manufacturer | / |
| Additional Feature | HIGH RELIABILITY |
| Case Connection | ISOLATED |
| Collector Current-Max (IC) | 900 A |
| Collector-Emitter Voltage-Max | 6500 V |
| Configuration | COMPLEX |
| Fall Time-Max (tf) | 1500 ns |
| Gate-Emitter Thr Voltage-Max | 7.5 V |
| Gate-Emitter Voltage-Max | 20 V |
| Number of Elements | 3 |
| Number of Terminals | 9 |
| Operating Temperature-Max | 150 °C |
| Operating Temperature-Min | -50 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Polarity/Channel Type | N-CHANNEL |
| Power Dissipation-Max (Abs) | 12500 W |
| Reference Standard | IEC-60747; UL RECOGNIZED |
| Rise Time-Max (tr) | 500 ns |
| Surface Mount | NO |
| Terminal Form | UNSPECIFIED |
| Terminal Position | UPPER |
| Transistor Application | POWER CONTROL |
| Transistor Element Material | SILICON |
| Turn-off Time-Max (toff) | 12000 ns |
| Turn-off Time-Nom (toff) | 6400 ns |
| Turn-on Time-Max (ton) | 1950 ns |
| VCEsat-Max | 3.8 V |

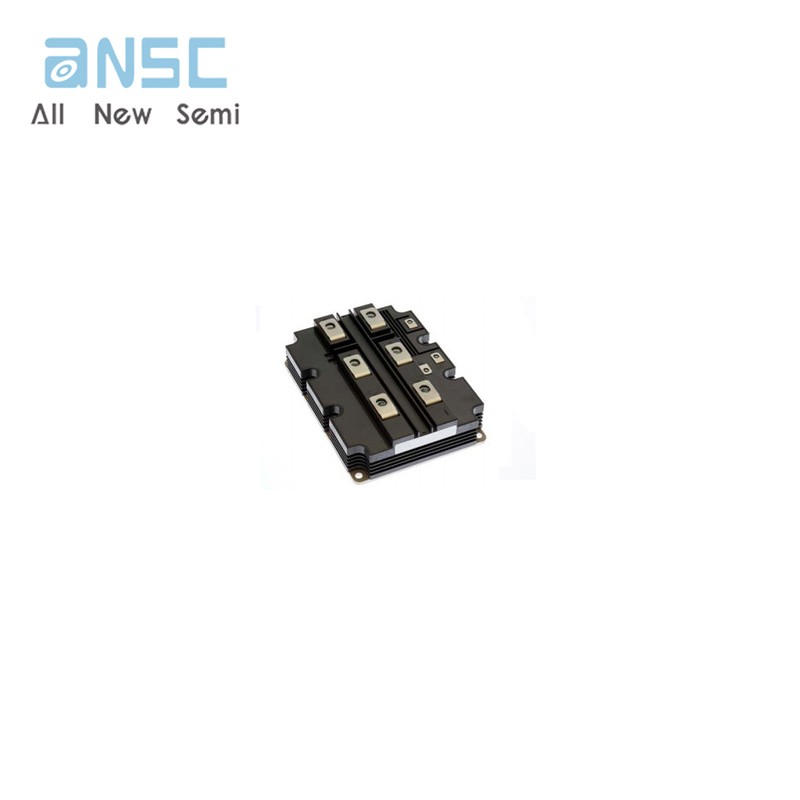

Actual image of the product

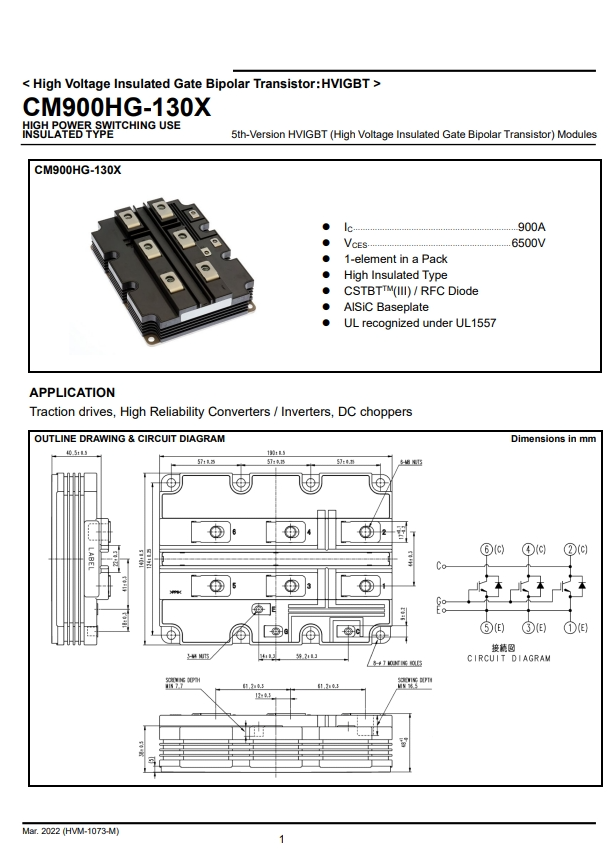

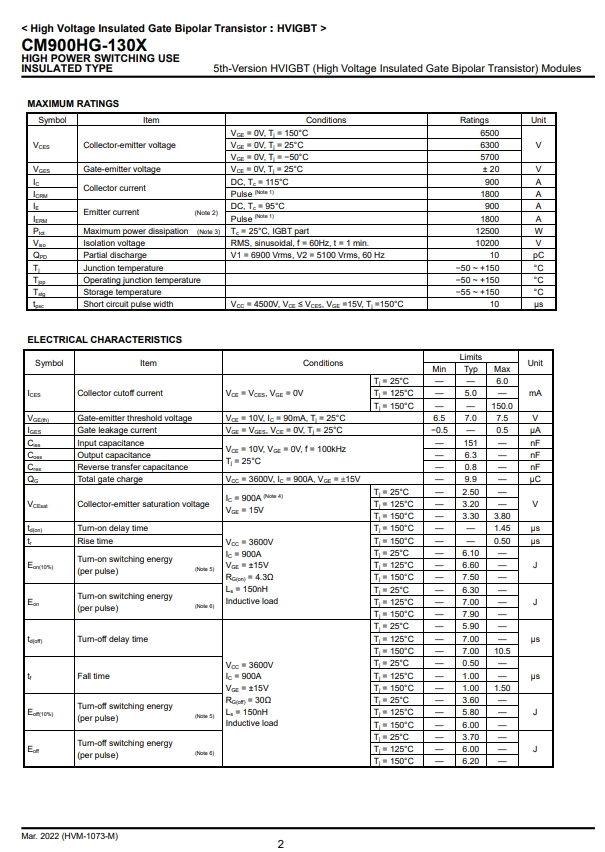

Product datasheet
For more information, please download
