Hot sale Original STD2N62K3 Transistors N-Channel 620 V 2.2A (Tc) 45W (Tc) Surface Mount MOSFET N-CH 620V 2.2A DPAK
Manufacturer
Manufacturer Product Number
STD2N62K3
Description
Original STD2N62K3 Transistors N-Channel 620 V 2.2A (Tc) 45W (Tc) Surface Mount MOSFET N-CH 620V 2.2A DPAK
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Product Description
These MDmeshTM K3 Power MOSFETs are the product of STMicroelectronics' MD meshTM technology being improved, as well as a new optimized vertical structure. These devices have a low on-resistance, excellent dynamic performance, and great avalanche capability, making them ideal for the most demanding applications.
Product Features
100% avalanche tested
Extremely high DV/DT capability
Very low intrinsic capacitance
Improved diode reverse recovery characteristics
Zener-protected
Product Applications
Power Management
Consumer Electronics
Portable Devices
Industrial
Product Description
|
Type |
Description |
|---|---|
|
ANSC PART# |
ANSC - STD2N62K3 |
|
Category |
Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs |
|
Mfr |
STMicroelectronics |
|
Series |
SuperMESH3™ |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
FET Type |
N-Channel |
|
Technology |
MOSFET (Metal Oxide) |
|
Drain to Source Voltage (Vdss) |
620 V |
|
Current - Continuous Drain (Id) @ 25°C |
2.2A (Tc) |
|
Drive Voltage (Max Rds On, Min Rds On) |
10V |
|
Rds On (Max) @ Id, Vgs |
3.6Ohm @ 1.1A, 10V |
|
Vgs(th) (Max) @ Id |
4.5V @ 50µA |
|
Gate Charge (Qg) (Max) @ Vgs |
15 nC @ 10 V |
|
Vgs (Max) |
±30V |
|
Input Capacitance (Ciss) (Max) @ Vds |
340 pF @ 50 V |
|
FET Feature |
- |
|
Power Dissipation (Max) |
45W (Tc) |
|
Operating Temperature |
150°C (TJ) |
|
Mounting Type |
Surface Mount |
|
Supplier Device Package |
DPAK |
|
Package / Case |
TO-252-3, DPAK (2 Leads + Tab), SC-63 |
|
Base Product Number |
STD2N62 |

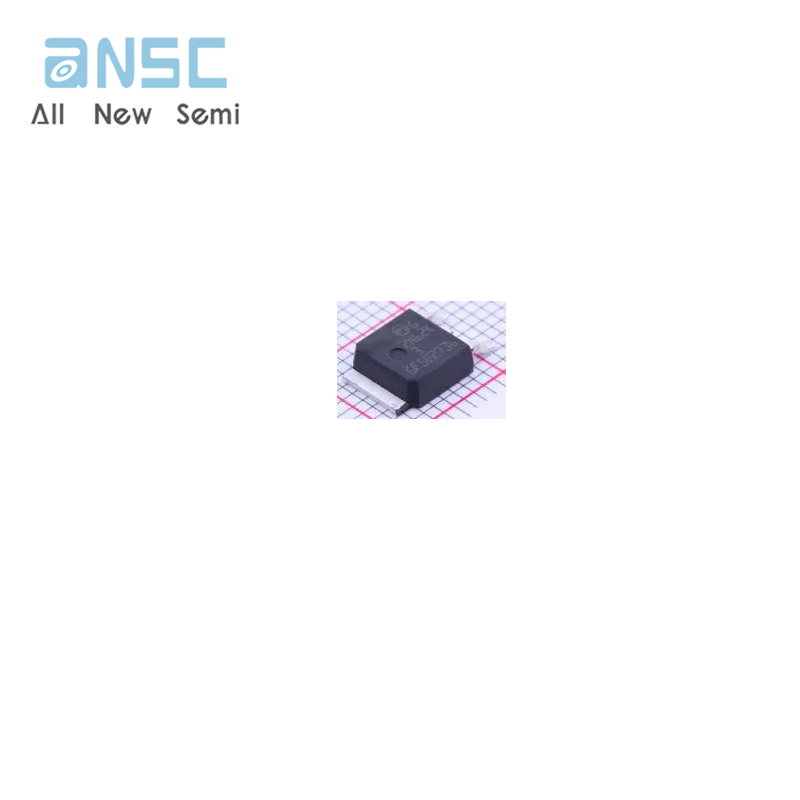

Actual image of the product

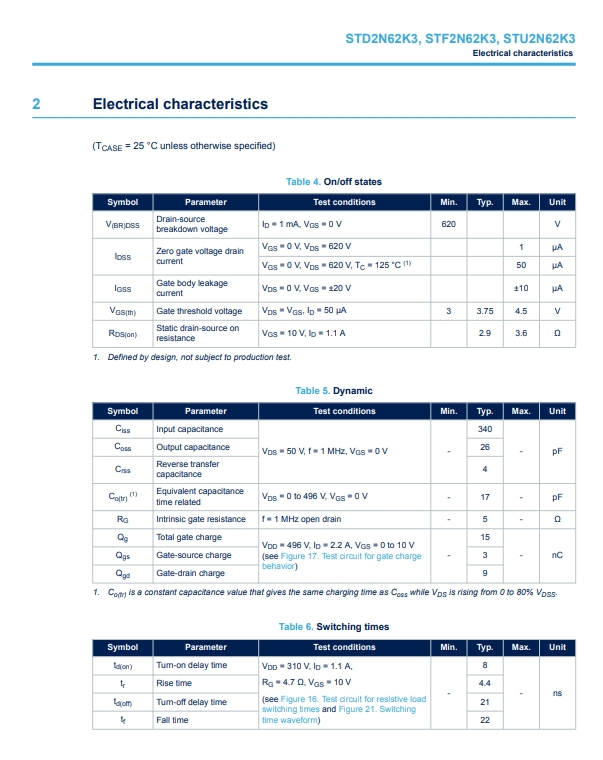

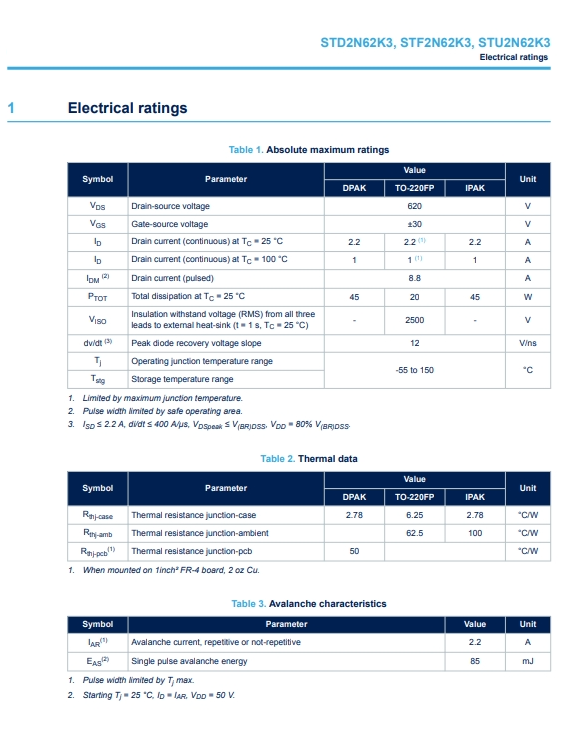

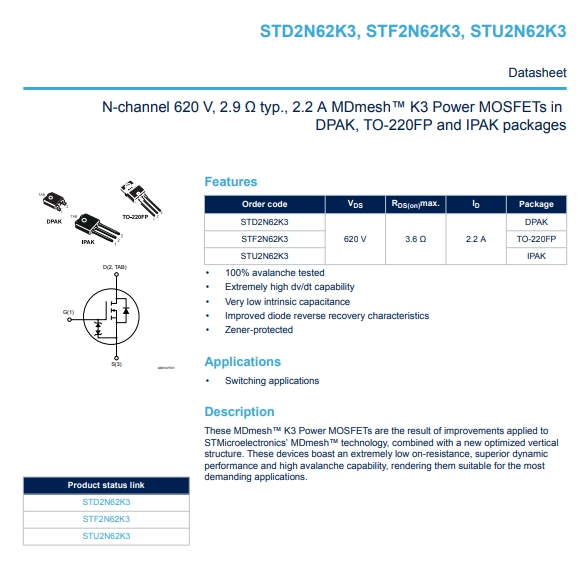

Product datasheet
For more information, please download
