Hot sale original IPD60R600C6 Transistor 7.3A I(D) 600V 0.6ohm 1-Element N-Channel Silicon Metal-oxide Semiconductor
Manufacturer Product Number
IPD60R600C6
Description
IPD60R600C6 Transistor 7.3A I(D) 600V 0.6ohm 1-Element N-Channel Silicon Metal-oxide Semiconductor FET TO-252 GREEN PLASTIC PACKAGE-3
Package Condition
Original
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

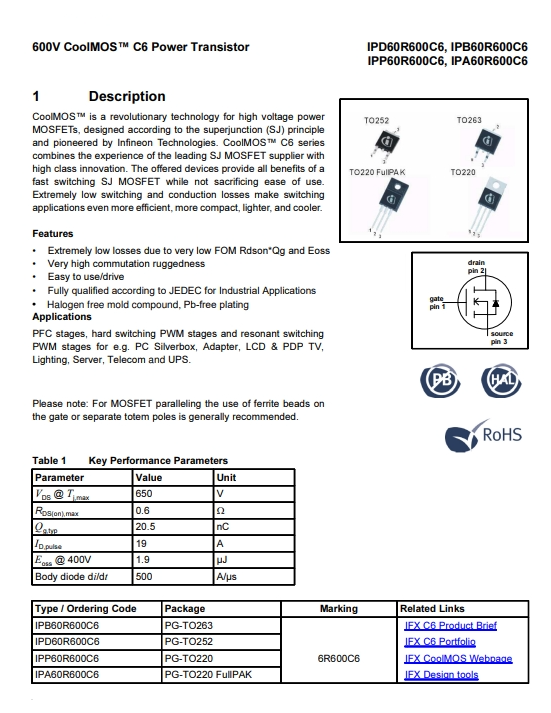

Description
CoolMOS™ is a revolutionary technology for high voltage powerMOSFETs, designed according to the superjunction (SJ) principle. CoolMOS™ C6 series combines the experience of the leading SJ MOSFET supplier with high class innovation. The offered devices provide all benefits of a fast switching SJ MOSFET while not sacrificing ease of use.Extremely low switching and conduction losses make switching applications even more efficient, more compact, lighter, and cooler.
Features
• Extremely low losses due to very low FOM Rdson*Qgand Eoss
• Very high commutation ruggedness
• Easy to use/drive
• JEDEC1) qualified, Pb-free plating
Applications
PFC stages, hard switching PWM stages and resonant switching
PWM stages for e.g. PC Silverbox, Adapter, LCD & PDP TV,
Lighting, Server, Telecom, UPS and Solar.
Product Description
| Type# | Description |
| ANSC PART# | ANSC-IPD60R600C6 |
| Manufacturer | / |
| Part Package | TO-252 |
| Package Description | GREEN, PLASTIC PACKAGE-3 |
| Pin Count | 4 |
| Samacsys Manufacturer | / |
| Avalanche Energy Rating (Eas) | 133 mJ |
| Case Connection | DRAIN |
| Configuration | SINGLE WITH BUILT-IN DIODE |
| DS Breakdown Voltage-Min | 600 V |
| Drain Current-Max (ID) | 7.3 A |
| Drain-source On Resistance-Max | 0.6 Ω |
| FET Technology | METAL-OXIDE SEMICONDUCTOR |
| Moisture Sensitivity Level | 1 |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Operating Mode | ENHANCEMENT MODE |
| Operating Temperature-Max | 150 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 260 |
| Polarity/Channel Type | N-CHANNEL |
| Power Dissipation-Max (Abs) | 63 W |
| Pulsed Drain Current-Max (IDM) | 19 A |
| Qualification Status | Not Qualified |
| Surface Mount | YES |
| Terminal Finish | Tin (Sn) |
| Terminal Form | GULL WING |
| Terminal Position | SINGLE |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Transistor Application | SWITCHING |
| Transistor Element Material | SILICON |

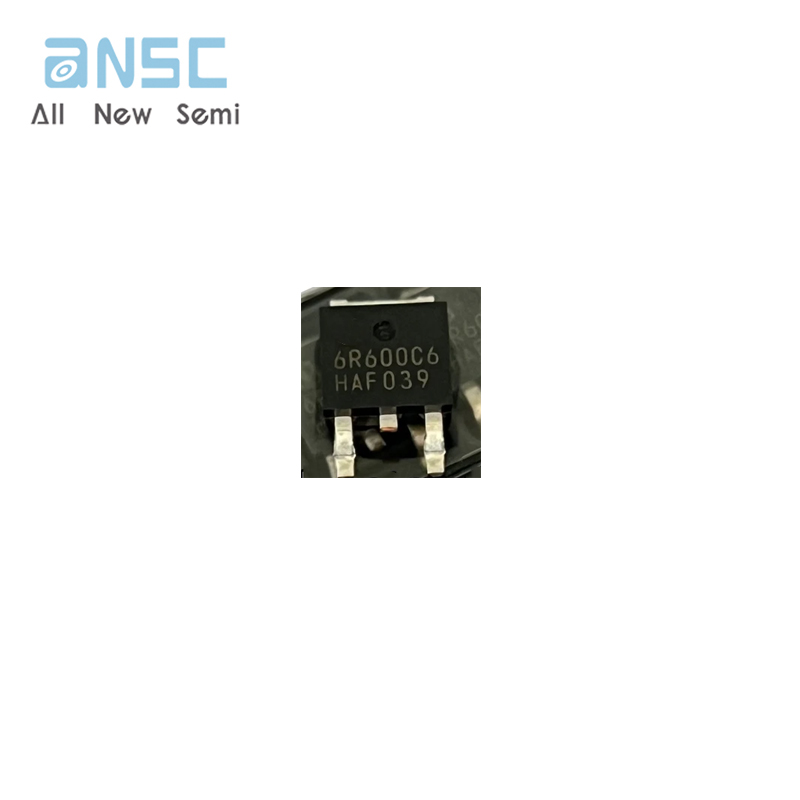

Actual image of the product

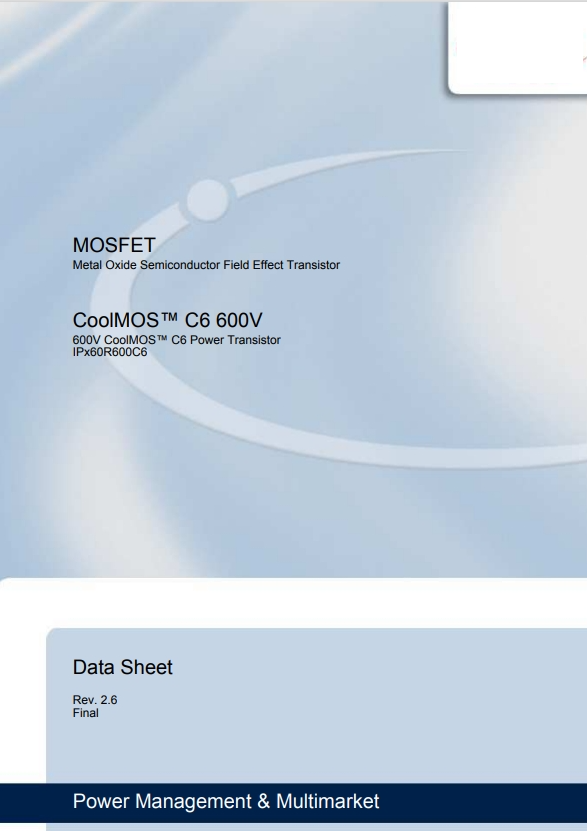

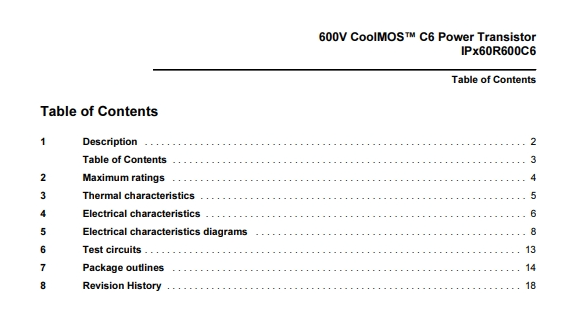

Product datasheet
For more information, please download
