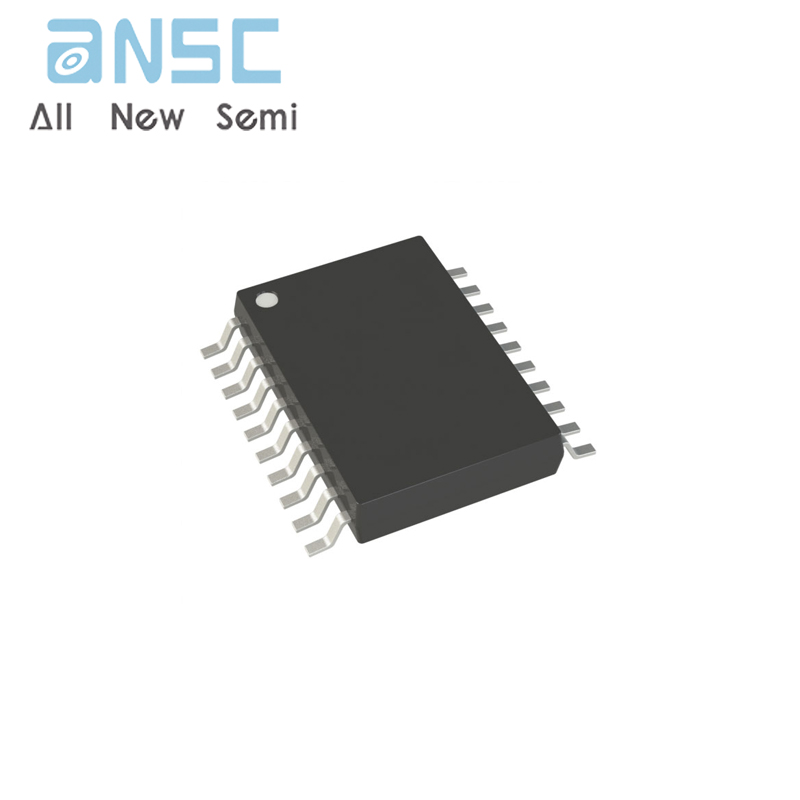

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Spot sales of MAX3002EUP+T +1.2V to +5.5V, ±15kV ESD-Protected, 0.1uA, 35Mbps, 8-Channel Level Translators TSSOP-20
Manufacturer Product Number
MAX3002EUP+T
Description
MAX3002EUP+T +1.2V to +5.5V, ±15kV ESD-Protected, 0.1uA, 35Mbps, 8-Channel Level Translators TSSOP-20
Package Condition
Tape & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The MAX3000E/MAX3001E/MAX3002–MAX3012 8- channel level translators provide the level shifting necessary to allow data transfer in a multivoltage system. Externally applied voltages, VCC and VL, set the logic levels on either side of the device. Logic signals present on the VL side of the device appear as a higher voltage logic signal on the VCC side of the device, and vice-versa.
The MAX3000E/MAX3001E/MAX3002/MAX3004–MAX3012 feature an EN input that, when low, reduces the VCC and VL supply currents to <2µA. The MAX3000E/MAX3001E also have ±15kV ESD protection on the I/O VCC side for greater protection in applications that route signals externally. The MAX3000E operates at a guaranteed data rate of 230kbps. The MAX3001E operates at a guaranteed data rate of 4Mbps. The MAX3002–MAX3012 operate at a guaranteed data rate of 20Mbps over the entire specified operating voltage range.
The MAX3000E/MAX3001E/MAX3002–MAX3012 accept VL voltages from +1.2V to +5.5V and VCC voltages from +1.65V to +5.5V, making them ideal for data transfer between low-voltage ASICs/PLDs and higher voltage systems. The MAX3000E/MAX3001E/MAX3002– MAX3012 are available in 20-pin UCSP™ and 20-pin TSSOP packages.
Product Features
♦ Guaranteed Data Rate Options
230kbps (MAX3000E)
4Mbps (MAX3001E)
20Mbps (MAX3002–MAX3012)
♦ Bidirectional Level Translation
(MAX3000E/MAX3001E/MAX3002/MAX3003)
♦ Unidirectional Level Translation
(MAX3004–MAX3012)
♦ Operation Down to +1.2V on VL
♦ ±15kV ESD Protection on I/O VCC Lines
(MAX3000E/MAX3001E)
♦ Ultra-Low 0.1µA Supply Current in Shutdown
♦ Low Quiescent Current (<10µA)
♦ UCSP and TSSOP Packages
Product Applications
Cellphones
SPI™ and MICROWIRE™ Level Translation
Low-Voltage ASIC Level Translation
Smart Card Readers
Cellphone Cradles
Portable POS Systems
Portable Communication Devices
Low-Cost Serial Interfaces
GPS
Telecommunications Equipment
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MAX3002EUP+T |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Translators, Level Shifters | |
| Manufacturer | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Translator Type | Voltage Level |
| Channel Type | Bidirectional |
| Number of Circuits | 1 |
| Channels per Circuit | 8 |
| Voltage - VCCA | 1.2 V ~ 5.5 V |
| Voltage - VCCB | 1.65 V ~ 5.5 V |
| Input Signal | - |
| Output Signal | - |
| Output Type | Tri-State, Non-Inverted |
| Data Rate | 35Mbps |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Features | Auto-Direction Sensing, Power-Supply Decoupling |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP |
| Base Product Number | MAX3002 |
Product Photos
