Hot-selling and scarce BLF4G10LS-120 UHF power LDMOS transistor SMD spot stock

Product Descriptions

120 W LDMOS power transistor for base station applications at frequencies from 800 MHz to 1000 MHz.

Product Features

■  Typical GSM EDGE performance at a frequency of 920 MHz and 960 MHz, a supply voltage of 28 V and an IDq of 650 mA

◆ Load power = 48 W (AV)

◆ Gain = 19 dB (typ)

◆ Efficiency = 40 % (typ)

◆ ACPR 400 = −61 dBc (typ)

◆ ACPR 600 = −72 dBc (typ)

◆ EVMrms = 1 .5 % (typ)

■  Easy power control

■  Excellent ruggedness

■  High efficiency

■  Excellent thermal stability

■  Designed for broadband operation (800 MHz to 1000 MHz)

■  Internally matched for ease of use

Product Applications

■  RF power amplifiers for GSM, GSM EDGE and CDMA base stations and multicarrier applications in the 868 MHz to 961 MHz frequency range.

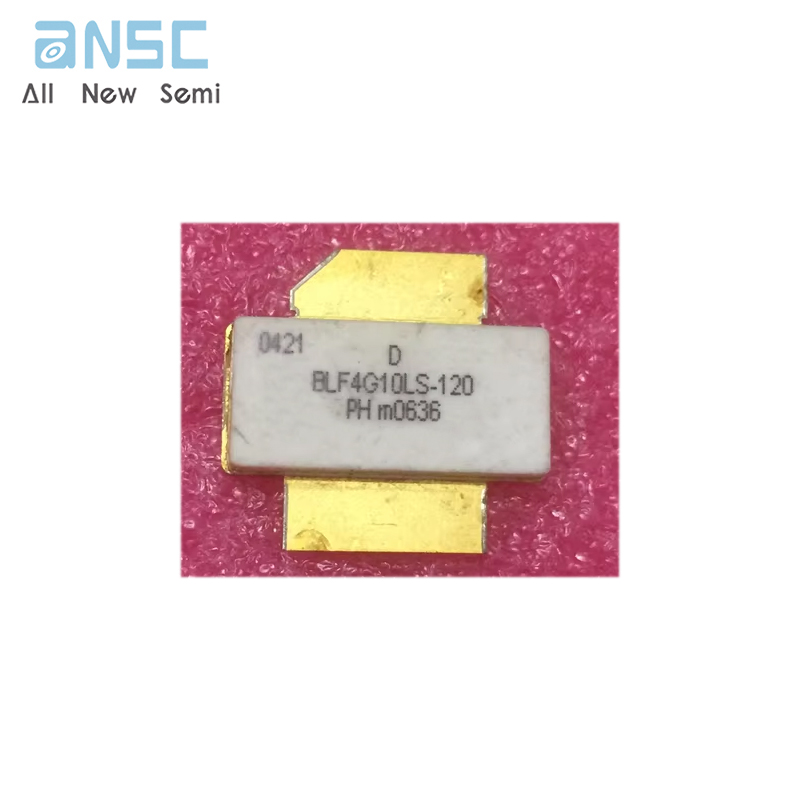

Product Photos

For more product information, please download the PDF
