Hot-selling and scarce MMBT2222A NPN switching transistor SOT23 spot stock
Manufacturer Product Number
MMBT2222A
Description
MMBT2222A NPN switching transistor SOT23 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
NPN switching transistor in a SOT23 plastic package.
PNP complement: PMBT2907A.
Product Features
• High current (max. 600 mA)
• Low voltage (max. 40 V).
Product Applications
• Switching and linear amplification.
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MMBT2222A |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 600 mA |
| Voltage - Collector Emitter Breakdown (Max) | 40 V |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 10nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 150mA, 10V |
| Power - Max | 250 mW |
| Frequency - Transition | 250MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23 (TO-236) |
| Base Product Number | MMBT2222 |

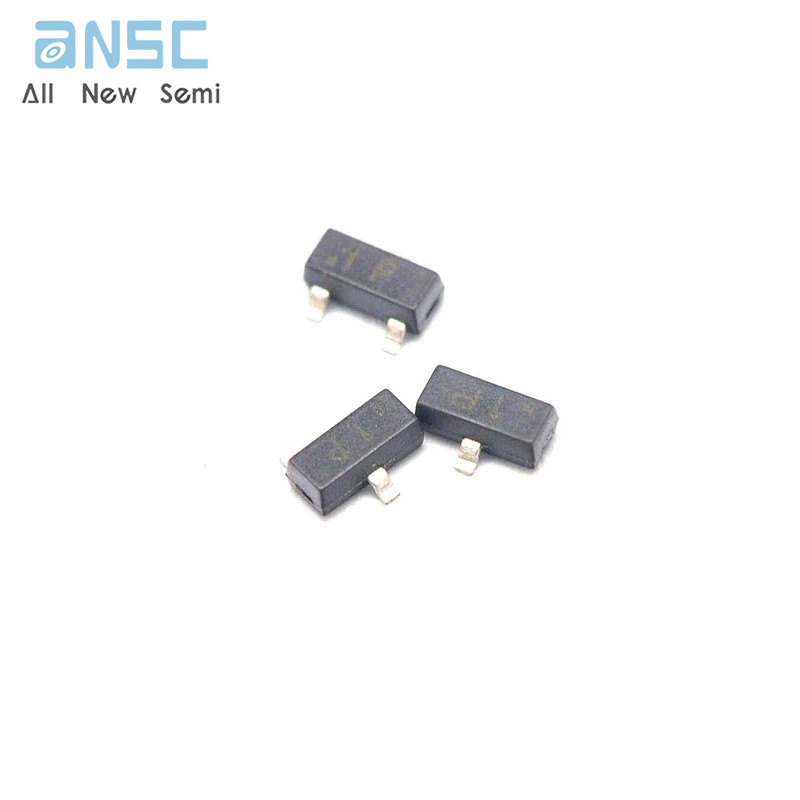

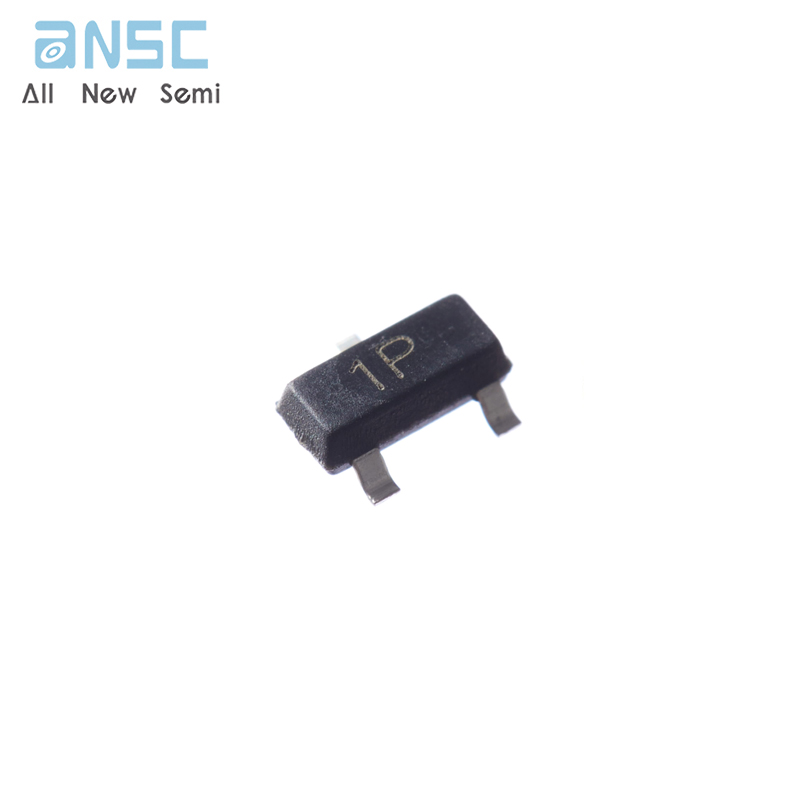

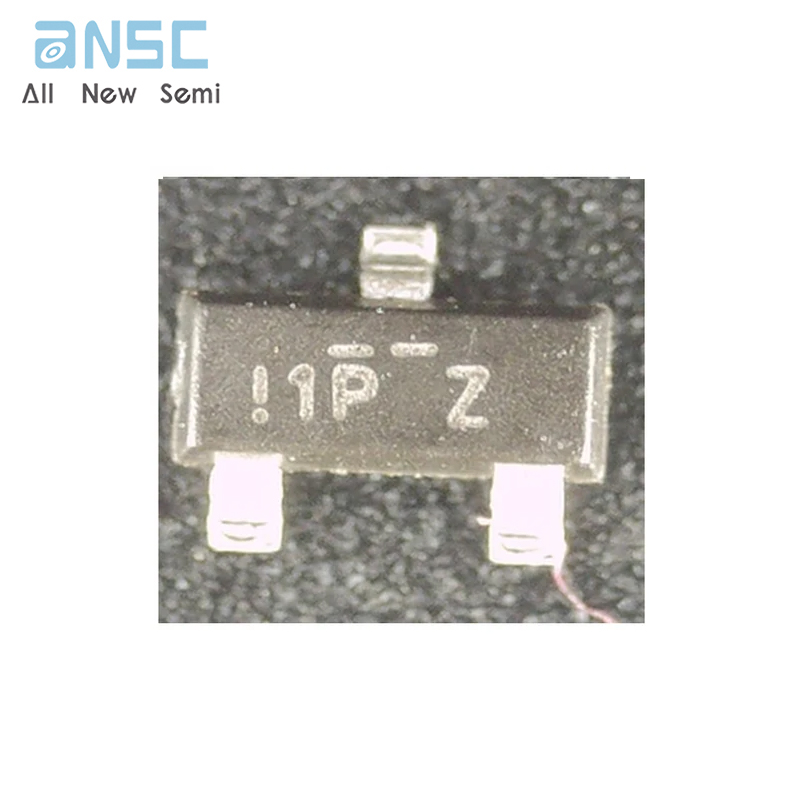

Product Photos
For more product information, please download the PDF
