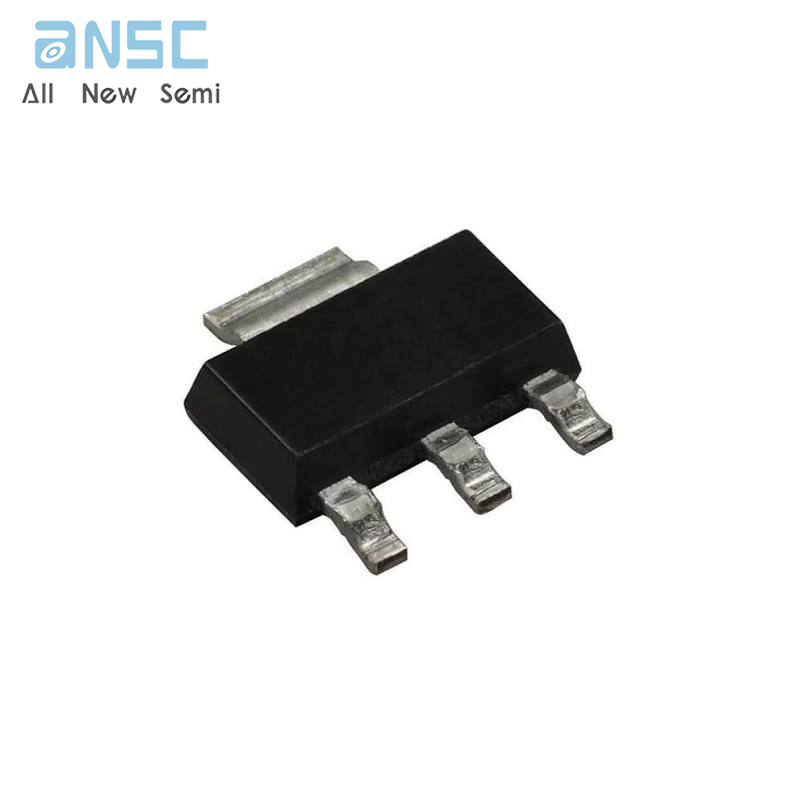

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce FZT689BTA POWER HIGH GAIN TRANSISTOR SOT-223 spot stock
Manufacturer Product Number
FZT689BTA
Description
FZT689BTA POWER HIGH GAIN TRANSISTOR SOT-223 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
BVCEO > 20V
BVCBO > 20V
IC = 3.0A High Continuous Current
hFE > 400 @ 2A and Low Saturation Voltage
VCE(sat) < 450mV at 3A
Complementary PNP Type: DIODES™ FZT789B
Product Applications
Darlington replacements
Flash gun convertors and battery powered circuits
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-FZT689BTA |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 3 A |
| Voltage - Collector Emitter Breakdown (Max) | 20 V |
| Vce Saturation (Max) @ Ib, Ic | 450mV @ 20mA, 3A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 400 @ 2A, 2V |
| Power - Max | 2 W |
| Frequency - Transition | 150MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223-3 |
| Base Product Number | FZT689 |
Product Photos
For more product information, please download the PDF
