Hot-selling and scarce APT25SM120B N-Channel MOSFET TO-247 spot stock
Manufacturer Product Number
APT25SM120B
Description
APT25SM120B N-Channel MOSFET TO-247 spot stock
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-APT25SM120B |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | - |
| Packaging | Bulk |
| Part Status | Obsolete |
| FET Type | N-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 1200 V |
| Current - Continuous Drain (Id)@ 25°C | 25A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 20V |
| Rds On (Max) @ Id, Vgs | 175mOhm @ 10A, 20V |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 72 nC @ 20 V |
| Vgs (Max) | +25V, -10V |
| Power Dissipation (Max) | 175W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247 |
| Package / Case | TO-247-3 |

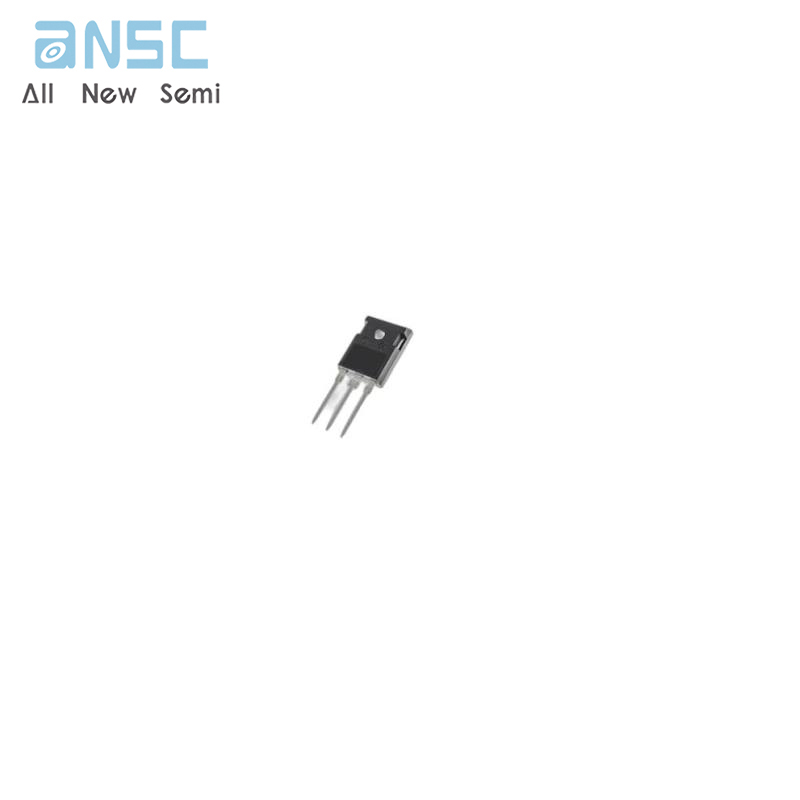

Product Photos
For more product information, please download the PDF
