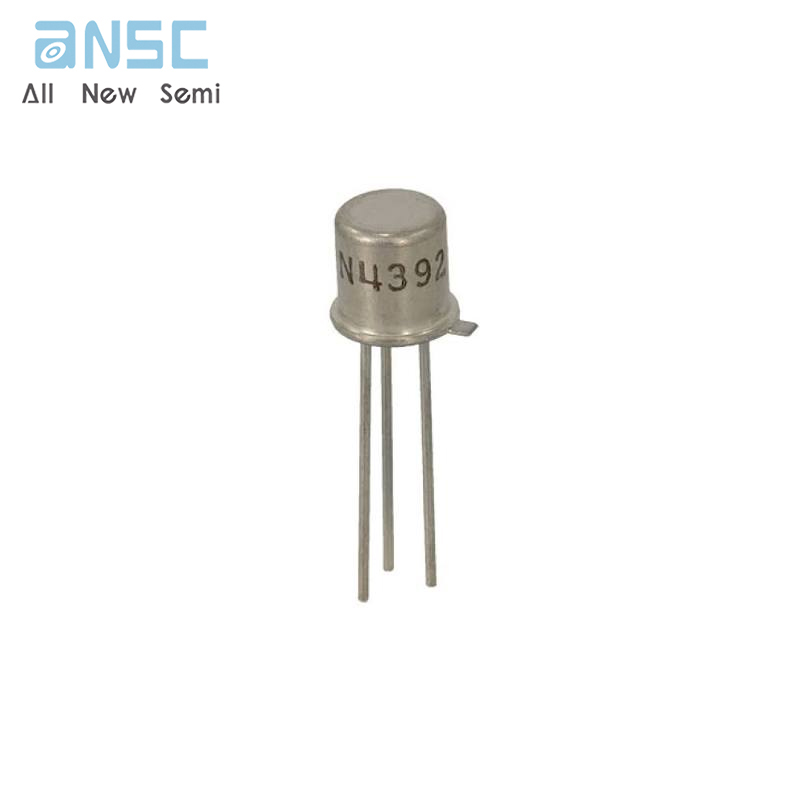

Hot-selling and scarce 2N4392 N-Channel JFETS TO-18 spot stock
Manufacturer Product Number
2N4392
Description
2N4392 N-Channel JFETS TO-18 spot stock
Package Condition
Bulk
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The 2N/PN/SST4391 series features many of the superior characteristics of JFETs which make it a good choice for demanding analog switching applications and for specialized amplifier circuits.
The 2N series hermetically-sealed TO-206AA (TO-18) can is available with processing per MIL-S-19500 (see Military Information). Both the PN, TO-226AA (TO-92), and SST, TO-236 (SOT-23), series are available in tape-and-reel for automated assembly (see Packaging Information). For similar dual products, see the 2N5564/5565/5566 data sheet.
Product Features
Low On-Resistance: 4391<30
Fast Switching—tON: 4 ns
High Off-Isolation: ID(off) with Low Leakage
Low Capacitance: < 3.5 pF
Low Insertion Loss3
Product Applications
Analog Switches
Choppers
Sample-and-Hold
Normally“On” Switches
Current Limiters
Commutators
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-2N4392 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| JFETs | |
| Manufacturer | - |
| Packaging | Bulk |
| Part Status | Obsolete |
| FET Type | N-Channel |
| Voltage - Breakdown (V(BR)GSS) | 40 V |
| Current - Drain (Idss) @ Vds (Vgs=0) | 25 mA @ 20 V |
| Voltage - Cutoff (VGS off) @ Id | 2 V @ 1 nA |
| Input Capacitance (Ciss) (Max) @ Vds | 14pF @ 20V |
| Resistance - RDS(On) | 60 Ohms |
| Power - Max | 1.8 W |
| Operating Temperature | -65°C ~ 200°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-206AA, TO-18-3 Metal Can |
| Supplier Device Package | TO-206AA (TO-18) |
| Base Product Number | 2N4392 |
Product Photos
For more product information, please download the PDF
