Hot-selling and scarce IRF7301PbF HEXFET Power MOSFET SOP8 spot stock
Manufacturer Product Number
IRF7301PbF
Description
IRF7301PbF HEXFET Power MOSFET SOP8 spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve the lowest possible on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient device for use in a wide variety of applications.
The SO-8 has been modified through a customized lead frame for enhanced thermal characteristics and multiple-die capability making it ideal in a variety of power applications. With these improvements, multiple devices can be used in an application with dramatically reduced board space. The package is designed for vapor phase, infra red, or wave soldering techniques. Power dissipation of greater than 0.8W is possible in a typical PCB mount application.
Product Features
Generation V Technology
Ultra Low On-Resistance
Dual N-Channel Mosfet
Surface Mount
Available in Tape & Reel
Dynamic dv/dt Rating
Fast Switching
Lead-Free
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-IRF7301PbF |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| FET, MOSFET Arrays | |
| Manufacturer | - |
| Series | HEXFET® |
| Packaging | Tube |
| Part Status | Discontinued at DigiKey |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id)@ 25°C | 5.2A |
| Rds On (Max) @ Id, Vgs | 50mOhm @ 2.6A, 4.5V |
| Vgs(th) (Max) @ Id | 700mV @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 20nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 660pF @ 15V |
| Power - Max | 2W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
| Base Product Number | IRF73 |

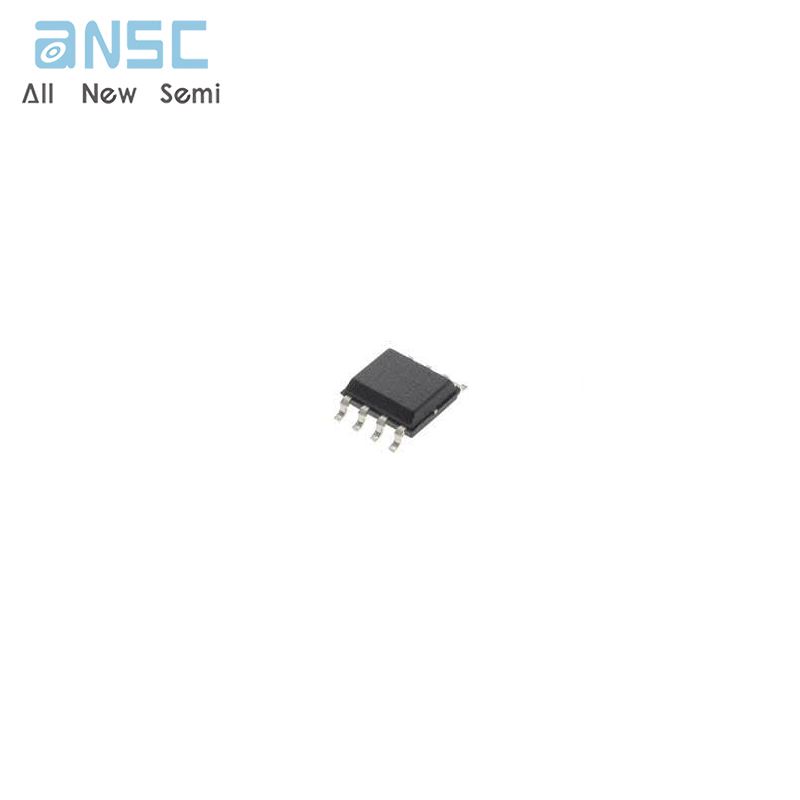

Product Photos
For more product information, please download the PDF
