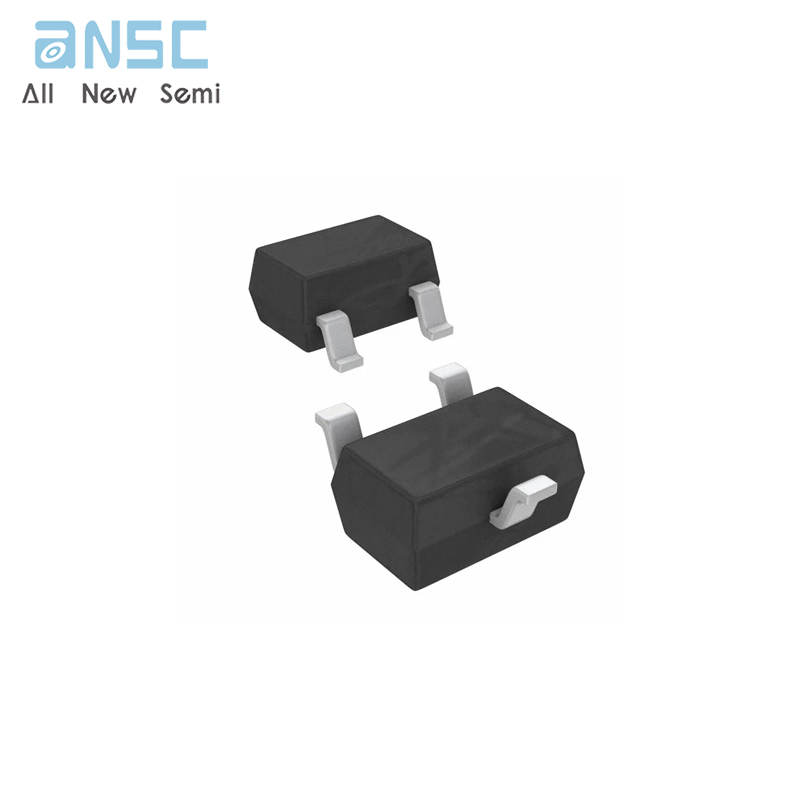

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce 2SC4226-T1-A RF Transistor NPN 12V 100mA 4.5GHz 150mW SOT-323 spot stock
Manufacturer Product Number
2SC4226-T1-A
Description
2SC4226-T1-A RF Transistor NPN 12V 100mA 4.5GHz 150mW SOT-323 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The 2SC4226 is a low supply voltage transistor designed for VHF, UHF low noise amplifier .
It is suitable for a high density surface mount assembly since the transistor has been applied 3-pin super minimold package .
Product Features
• Low noise : NF = 1.2 dB TYP . @ VCE = 3 V, IC = 7 mA, f = 1 GHz
• High gain : S21e 2 = 9 dB TYP . @ VCE = 3 V, IC = 7 mA, f = 1 GHz
• 3-pin super minimold package
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-2SC4226-T1-A |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Bipolar RF Transistors | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Transistor Type | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 12V |
| Frequency - Transition | 4.5GHz |
| Noise Figure (dB Typ @ f) | 1.2dB @ 1GHz |
| Gain | 9dB |
| Power - Max | 150mW |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 7mA, 3V |
| Current - Collector (Ic) (Max) | 100mA |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-70, SOT-323 |
| Supplier Device Package | SOT-323 |
Product Photos
For more product information, please download the PDF
