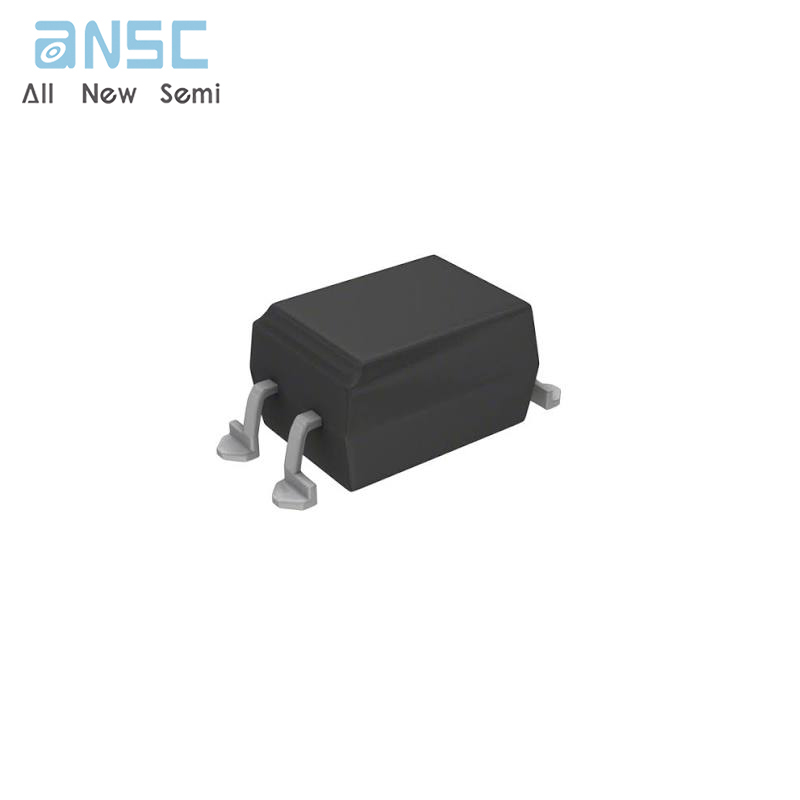

Hot-selling and scarce PC3H7D General Purpose Photocoupler SOP4 spot stock
Manufacturer Product Number
PC3H7D
Description
PC3H7D General Purpose Photocoupler SOP4 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
PC3H7 Series contains an IRED optically coupledto a phototransistor .
It is packaged in a 4-pin Mini-flat package, Half ptichtype .
Input-output isolation voltage(rms) is 2.5kV .
Collector-emitter voltage is 80V (*) and CTR is 20%to 400% at input current of 1mA .
Product Features
1. 4-pin Mini-flat Half pitch package (Lead pitch :1.27mm)
2. Double transfer mold package (Ideal for Flow Soldering)
3. High collector-emitter voltage (VCEO : 80V(*))
4. Current transfer ratio (CTR : MIN . 20% at I F=1mA,VCE=5V)
5. Several CTR ranks available
6. Isolation voltage between input and output (Viso(rms) :2.5kV)
Product Applications
1. Programmable controllers
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-PC3H7D |
| Category | Isolators |
| Optocouplers, Optoisolators | |
| Transistor, Photovoltaic Output Optoisolators | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Number of Channels | 1 |
| Voltage - Isolation | 2500Vrms |
| Current Transfer Ratio (Min) | 120% @ 1mA |
| Current Transfer Ratio (Max) | 240% @ 1mA |
| Rise / Fall Time (Typ) | 4µs, 3µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 80V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 200mV |
| Operating Temperature | -30°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SOIC (0.173", 4.40mm Width) |
| Supplier Device Package | 4-Mini-Flat |
Product Photos
