Hot-selling and scarce STD45NF75T4 Automotive-grade N-channel 75V 18mΩ 40A SOT252 spot stock
Manufacturer Product Number
STD45NF75T4
Description
STD45NF75T4 Automotive-grade N-channel 75V 18mΩ 40A SOT252 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
This Power MOSFET series has been developed using STMicroelectronics' uniqueSTripFET™ process, which is specifically designed to minimize input capacitanceand gate charge . This renders the device suitable for use as primary switch inadvanced high-efficiency isolated DC-DC converters for telecom and computerapplications, and applications with low gate charge driving requirements .
Product Features
• AEC -Q101 qualified
• Exceptional dv/dt capability
• 100% avalanche tested
• Low gate charge
Product Applications
• Switching applications
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-STD45NF75T4 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | - |
| Series | STripFET™ II |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 75 V |
| Current - Continuous Drain (Id) @ 25°C | 40A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 24mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 80 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1760 pF @ 25 V |
| Power Dissipation (Max) | 125W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Mounting Type | Surface Mount |
| Supplier Device Package | DPAK |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Base Product Number | STD45 |

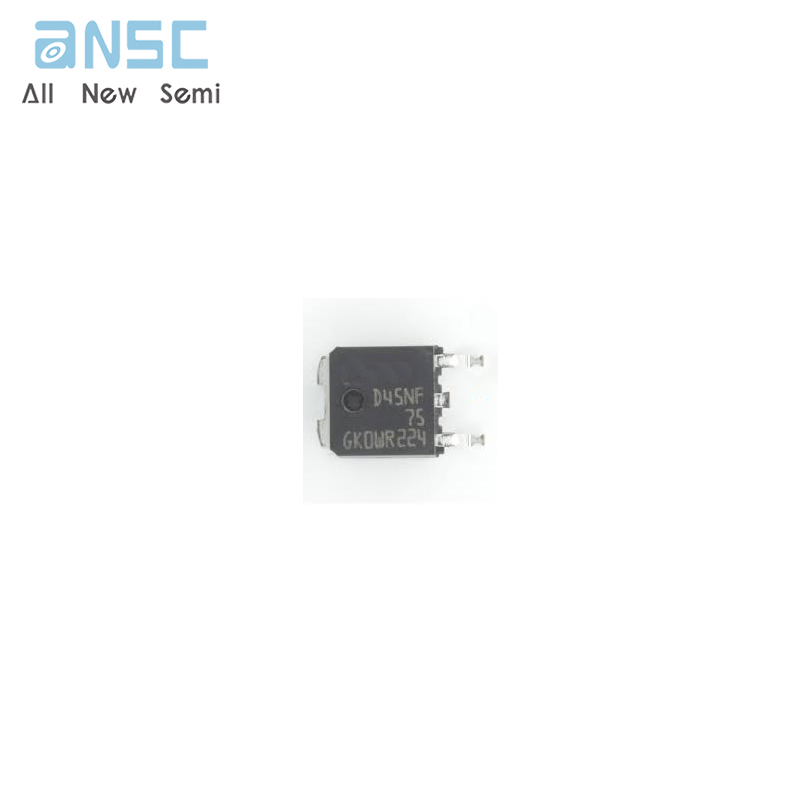

Product Photos
For more product information, please download the PDF
