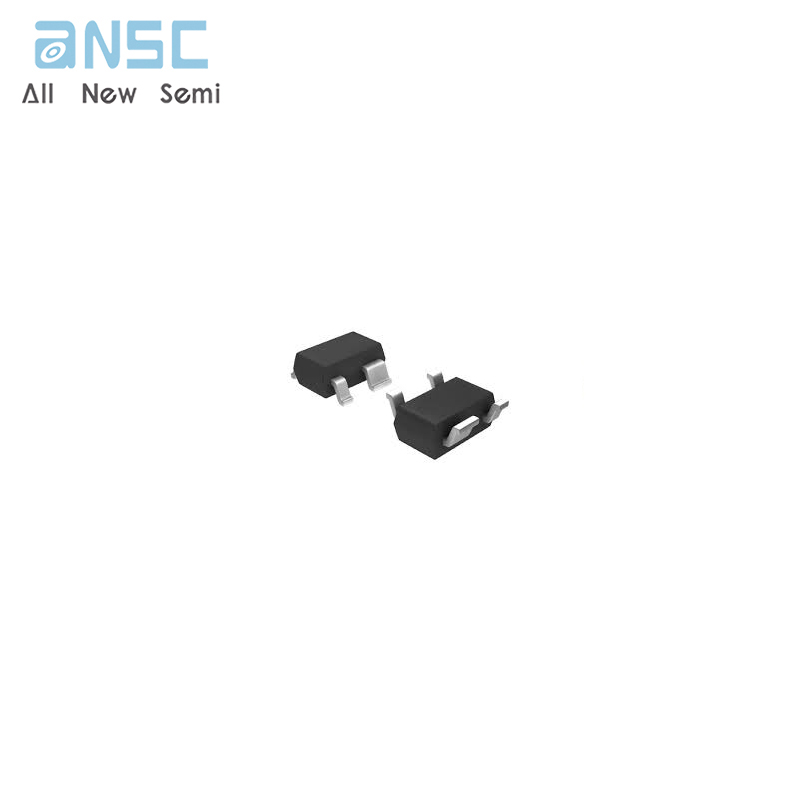

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce BF909AWR,115 N-channel dual-gate MOS-FET 5 V 15 mA 800MHz CMPAK-4 spot stock
Manufacturer Product Number
BF909AWR,115
Description
BF909AWR,115 N-channel dual-gate MOS-FET 5 V 15 mA 800MHz CMPAK-4 spot stock
Package Condition
Bulk
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Desccriptions
Enhancement type field-effect transistor in a plastic microminiature SOT343R package. The transistor consists of an amplifier MOS-FET with source and substrate interconnected and an internal bias circuit to ensure good cross-modulation performance during AGC.
Product Features
Specially designed for use at 5 V supply voltage
Short channel transistor with high forward transfer admittance to input capacitance ratio
Low noise gain controlled amplifier up to 1 GHz
Superior cross-modulation performance during AGC.
Product Applications
VHF and UHF applications with 3 to 7 V supply voltage such as television tuners and professional communication equipment.
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-BF909AWR,115 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| RF FETs, MOSFETs | |
| Manufacturer | - |
| Packaging | Bulk |
| Part Status | Obsolete |
| Technology | MOSFET (Metal Oxide) |
| Configuration | N-Channel Dual Gate |
| Frequency | 800MHz |
| Voltage - Test | 5 V |
| Current Rating (Amps) | 40mA |
| Noise Figure | 2dB |
| Current - Test | 15 mA |
| Voltage - Rated | 7 V |
| Mounting Type | Surface Mount |
| Package / Case | SC-82A, SOT-343 |
| Supplier Device Package | CMPAK-4 |
Product Photos
For more product information, please download the PDF
