Hot sale Original IPB80N06S4L-07 FET Transistor Trans MOSFET N-CH 60V 80A Automotive AEC-Q101 3-Pin(2+Tab) D2PAK T/R

Manufacturer Product Number

IPB80N06S4L-07

Description

Original IPB80N06S4L-07 FET Transistor Trans MOSFET N-CH 60V 80A Automotive AEC-Q101 3-Pin(2+Tab) D2PAK T/R

Package Condition

Original

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

Product Features

• P-channel - Logic Level - Enhancement mode

• AEC qualified

• MSL1 up to 260°C peak reflow

• 175°C operating temperature

• Green package (RoHS compliant)

• 100% Avalanche tested

• Intended for reverse battery protection

Product Description

ANSC PART#	ANSC- IPB80N06S4L-07
Part Package Code	D2PAK
Package Description	Green, Plastic, To-263, 3 Pin
Pin Count	4
Avalanche Energy Rating (Eas)	71 Mj
Case Connection	Drain
Configuration	Single With Built-In Diode
DS Breakdown Voltage-Min	60 V
Drain Current-Max (ID)	80 A
Drain-source On Resistance-Max	0.0064 Ω
FET Technology	Metal-Oxide Semiconductor
JEDEC-95 Code	TO-263AB
JESD-30 Code	R-PSSO-G2
JESD-609 Code	e3
Moisture Sensitivity Level	1
Number of Elements	1
Number of Terminals	2
Operating Mode	Enhancement Mode
Operating Temperature-Max	175 °C
Package Body Material	Plastic/Epoxy
Package Shape	Rectangular
Package Style	Small Outline
Peak Reflow Temperature (Cel)	Not Specified
Polarity/Channel Type	N-Channel
Power Dissipation-Max (Abs)	79 W
Pulsed Drain Current-Max (IDM)	320 A
Qualification Status	Not Qualified
Surface Mount	Yes
Terminal Finish	Tin (Sn)
Terminal Form	Gull Wing
Terminal Position	Single
Time@Peak Reflow Temperature-Max (s)	Not Specified
Transistor Element Material	Silicon

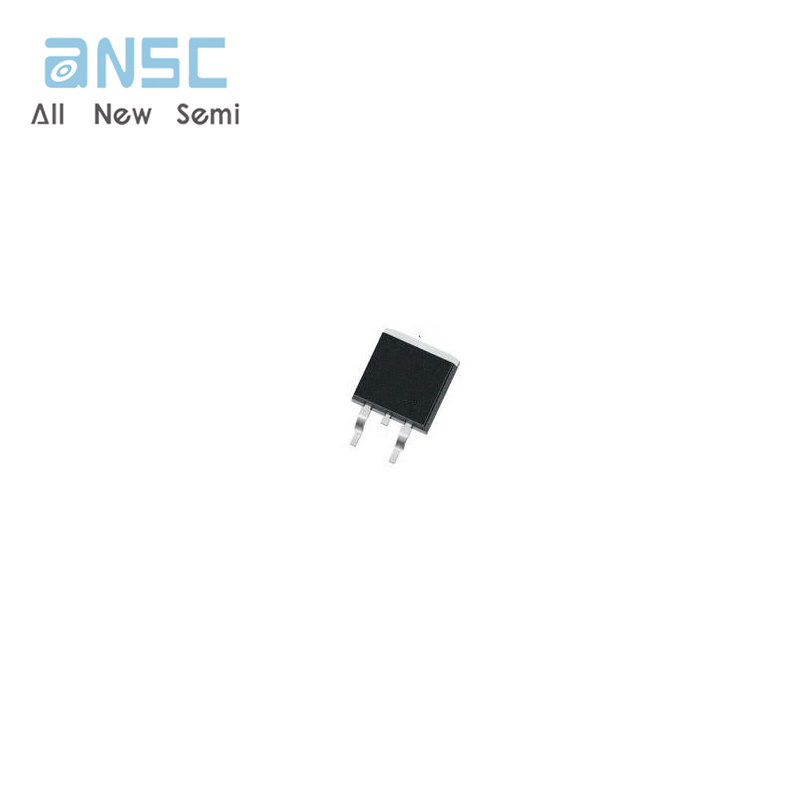

Actual image of the product

IPB80N06S4L-07
