One-Stop Supply Electronic Components BOM LIST Brand New Original 2Sd2627 6A/1500V/P-Channel To-220F Transistor D2627
Manufacturer
Manufacturer Product Number
2SD2627
Description
Original 2Sd2627 6A/1500V/P-Channel To-220F Transistor D2627
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
Color TV Horizontal Deflection
Output Applications
Features
• High speed.
• High breakdown voltage(VCBO=1500V).
• High reliability(Adoption of HVP process).
• Adoption of MBIT process.
• On-chip damper diode.
Product Description
| Type | Description |
| PART# | 2SD2627 |
| Ihs Manufacturer | Original |
| Part Package Code | TO-220FI |
| Package Description | FLANGE MOUNT, R-PSFM-T3 |
| Pin Count | 3 |
| Additional Feature | HIGH RELIABILITY |
| Case Connection | ISOLATED |
| Collector Current-Max (IC) | 6 A |
| Collector-Emitter Voltage-Max | 800 V |
| Configuration | SINGLE WITH BUILT-IN DIODE |
| DC Current Gain-Min (hFE) | 5 |
| JESD-30 Code | R-PSFM-T3 |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Operating Temperature-Max | 150 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Polarity/Channel Type | NPN |
| Power Dissipation-Max (Abs) | 30 W |
| Qualification Status | Not Qualified |
| Surface Mount | NO |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | SINGLE |
| Transistor Application | AMPLIFIER |
| Transistor Element Material | SILICON |

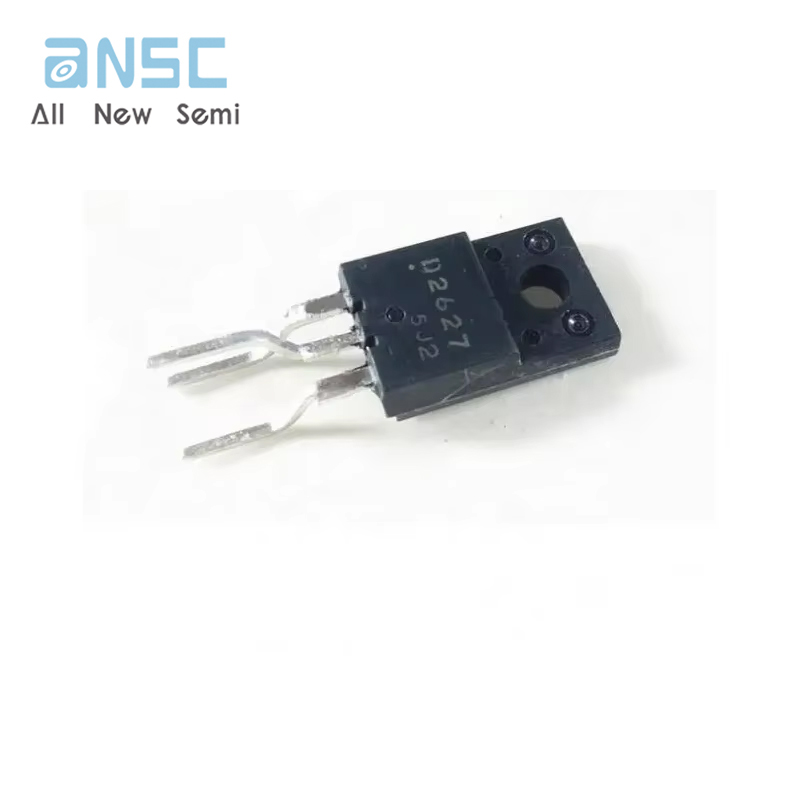

Actual image of the product
Other Products In The same category:
Original 2Sd2627 6A/1500V/P-Channel To-220F Transistor D2627
100In stock:
Can ship immediately
