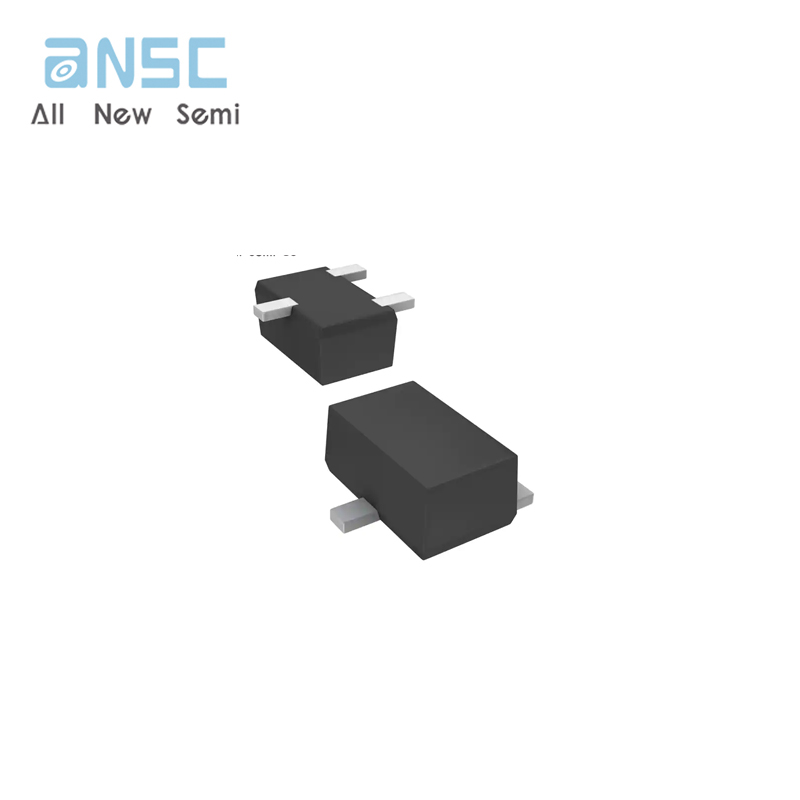

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
You can contact me for the best price distribution service electronic components DSA500100L Silicon PNP epitaxial planar type
Manufacturer Product Number
DSA500100L
Description
BOM distribution service electronic components DSA500100L Silicon PNP epitaxial planar type
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
High Performance Schottky Diode
Low Loss and Soft Recovery
Common Cathode
Features / Advantages:
● Very low Vf
● Extremely low switching losses
● Low Irm-values
● Improved thermal behaviour
● High reliability circuit operation
● Low voltage peaks for reduced
protection circuits
● Low noise switching
● Low losses
Applications:
● Rectifiers in switch mode power
supplies (SMPS)
● Free wheeling diode in low voltage
converters
Product Description
| Type | Description |
| PART# | DSA500100L |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Part Status | / |
| Transistor Type | PNP |
| Current - Collector (Ic) (Max) | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 10mA, 100mA |
| Current - Collector Cutoff (Max) | 100µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 210 @ 2mA, 10V |
| Power - Max | 150 mW |
| Frequency - Transition | 150MHz |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-85 |
| Supplier Device Package | SMini3-F2-B |
| Base Product Number | DSA5001 |
Product Photos
.jpg)
.png)
