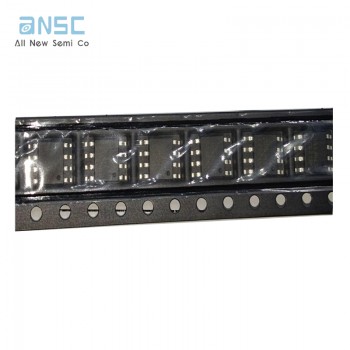

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot sale Original STS7NF60L Transistor MOSFET N-CH 60V 7.5A 8SO N-Channel 60 V 7.5A (Tc) 2.5W (Tc) Surface Mount 8-SOIC
Manufacturer Product Number
STS7NF60L
Description
Original STS7NF60L Transistor MOSFET N-CH 60V 7.5A 8SO N-Channel 60 V 7.5A (Tc) 2.5W (Tc) Surface Mount 8-SOIC
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| DESCRIPTION This Power MOSFET is the latest development of STMicroelectronis unique "Single Feature Size™" strip-based process. The resulting transistor shows extremely high packing density for low on-resistance, rugged avalanche characteristics and less critical alignment steps therefore a remarkable manufacturing reproducibility. ■ TYPICAL RDS(on) = 0.017 Ω ■ STANDARD OUTLINE FOR EASY AUTOMATED SURFACE MOUNT ASSEMBLY ■ LOW THRESHOLD DRIVE APPLICATIONS ■ DC MOTOR DRIVE ■ DC-DC CONVERTERS ■ BATTERY MANAGEMENT IN NOMADIC EQUIPMENT ■ POWER MANAGEMENT IN PORTABLE/DESKTOP PCs |
Product Description
| Type | Description |
| ANSC PART# | ANSC - STS7NF60L |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | Original |
| Series | STripFET™ II |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 7.5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V |
| Rds On (Max) @ Id, Vgs | 19.5mOhm @ 3.5A, 10V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 34 nC @ 4.5 V |
| Vgs (Max) | ±16V |
| Input Capacitance (Ciss) (Max) @ Vds | 1700 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.5W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOIC |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Base Product Number | STS7NF60 |

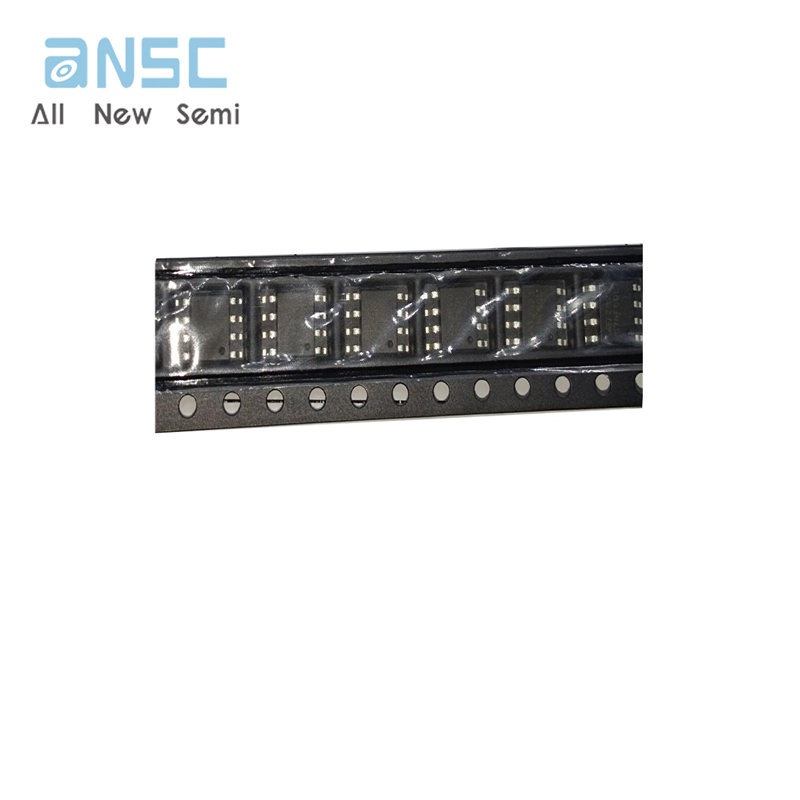

Actual image of the product

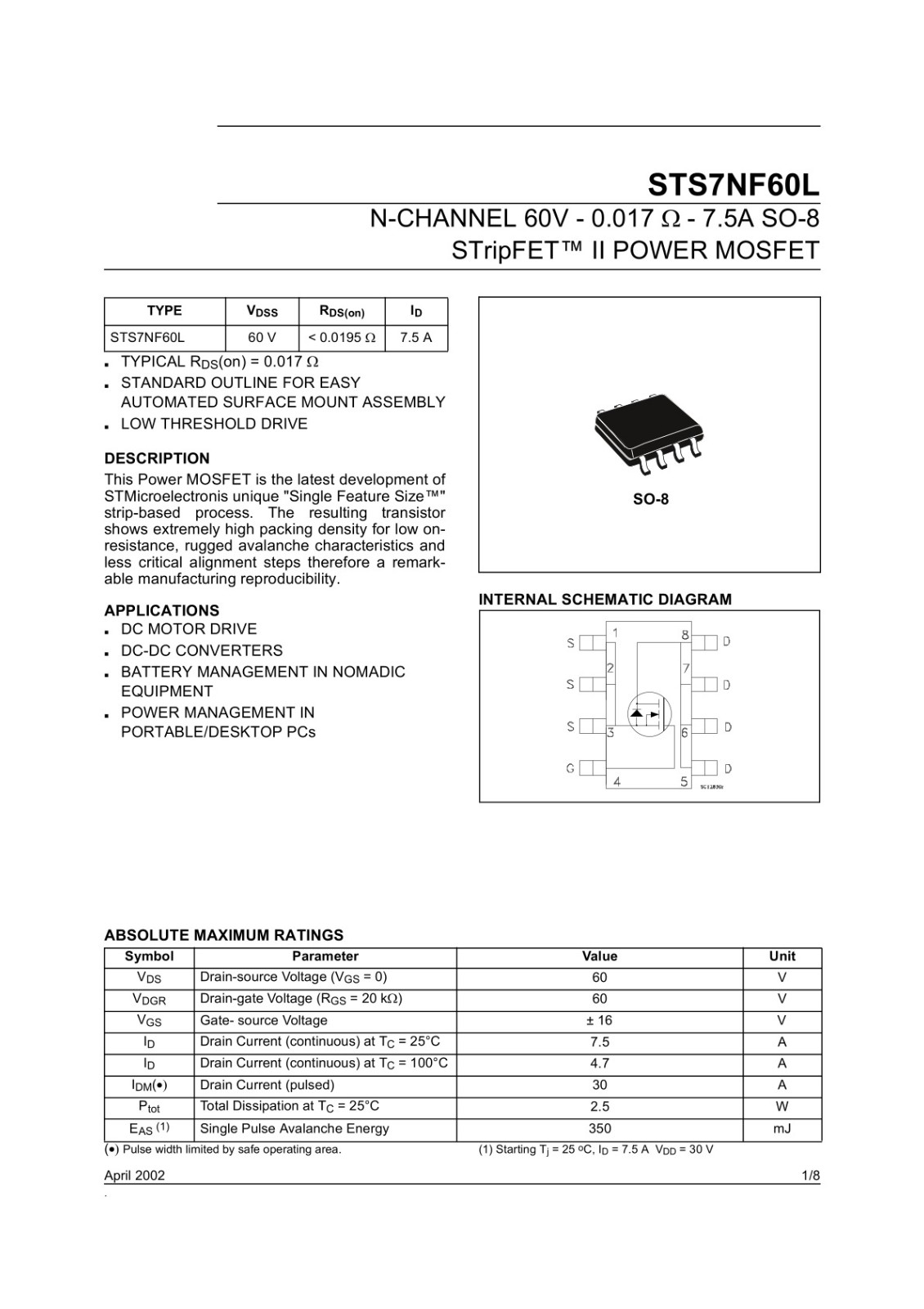

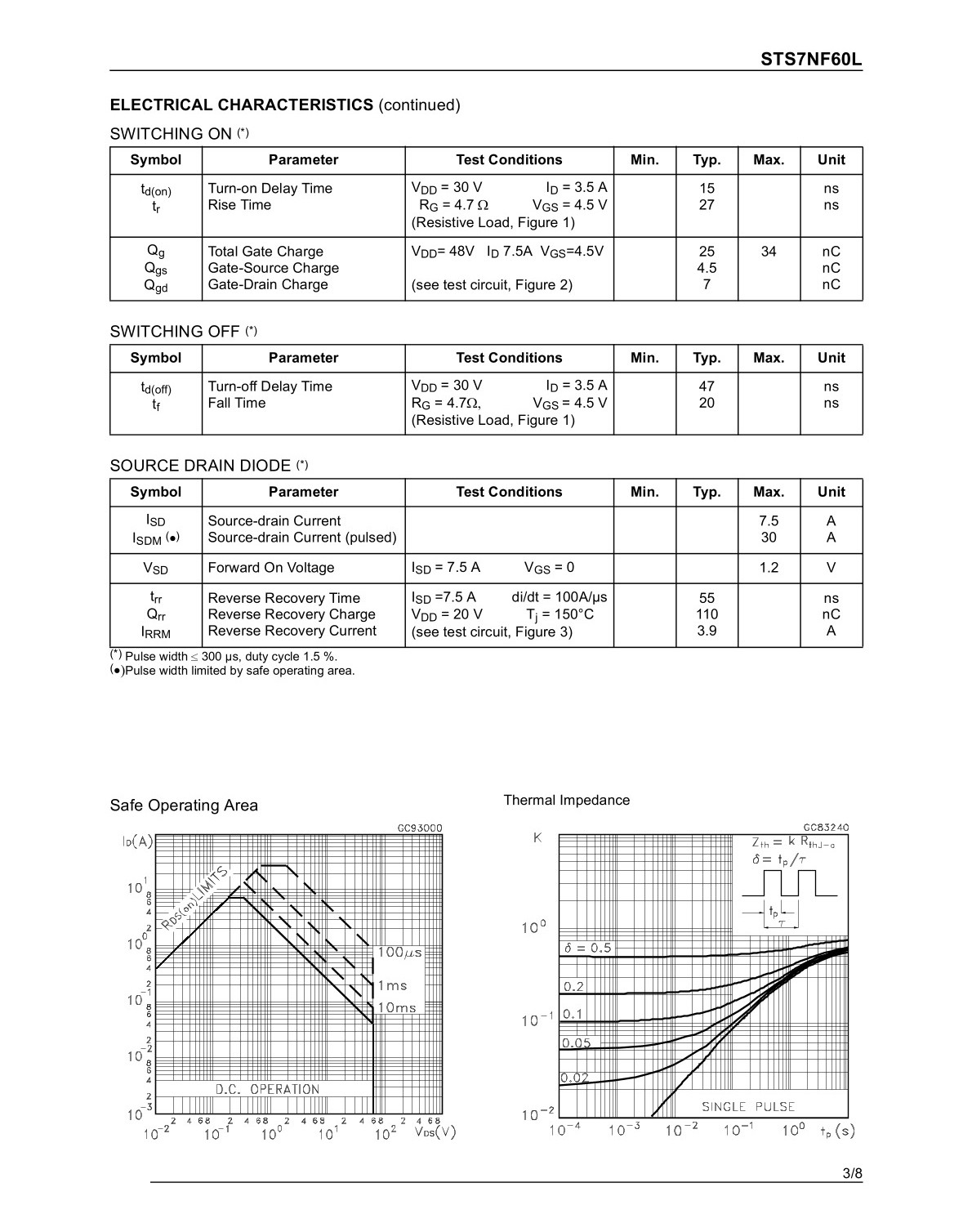

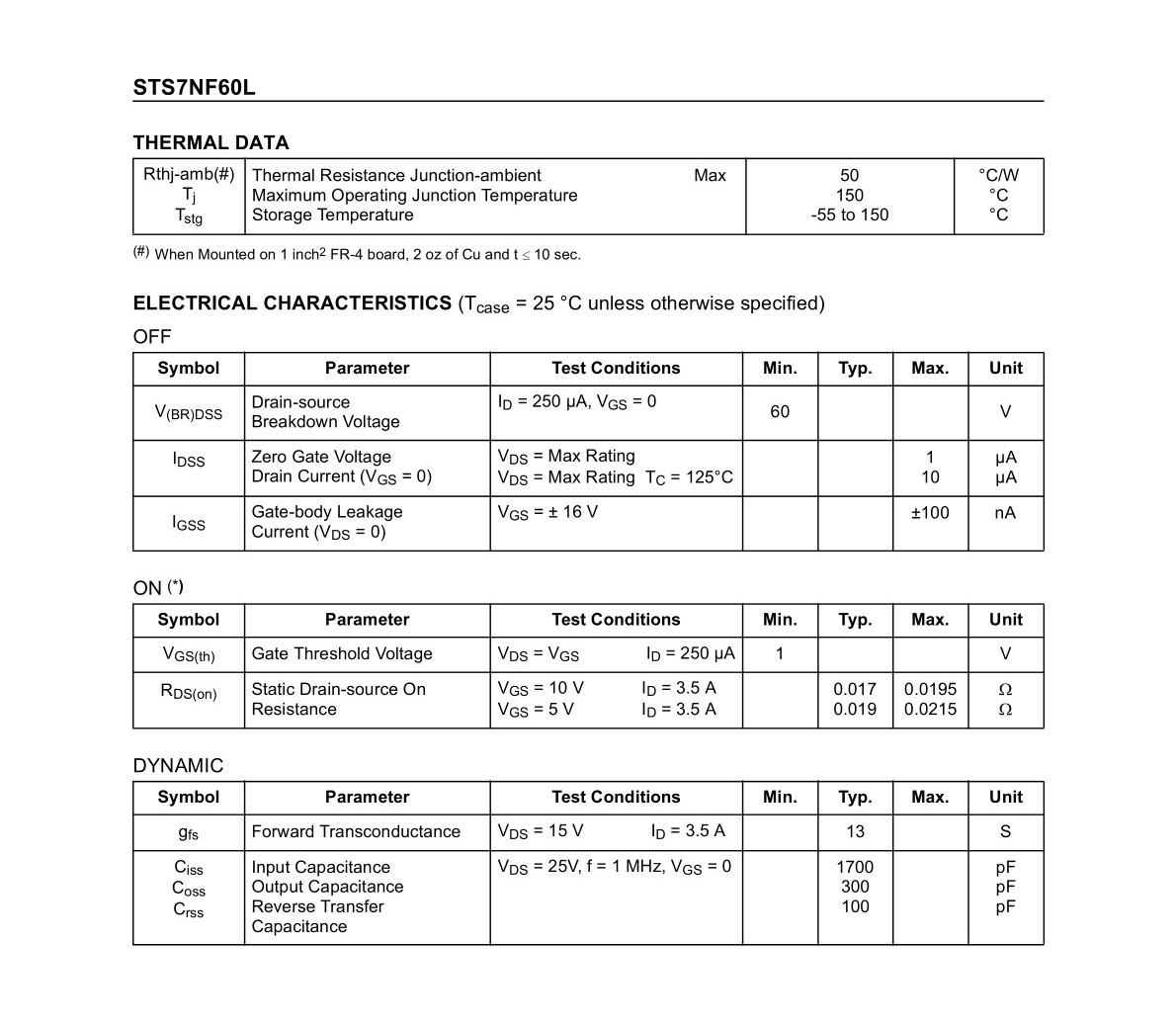

Product datasheet
For more information, please download
