Hot sale Original MMBT2222ALT1G TRANS NPN 45V 0.8A SOT23-3 Bipolar (BJT) Transistor NPN 45 V 800 mA 100MHz 310 mW Surface Mount

Manufacturer Product Number

MMBT2222ALT1G

Description

Original MMBT2222ALT1G TRANS NPN 45V 0.8A SOT23-3 Bipolar (BJT) Transistor NPN 45 V 800 mA 100MHz 310 mW Surface Mount

Package Condition

Tape & Reel (TR) Cut Tape (CT)

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Overview

The MMBT2222ALT1G is a bipolar NPN silicon transistor designed for linear, low-power surface mount and switching applications.

Product Features

These Devices are Pb?Free, Halogen Free/BFR Free, and are RoHS Compliant

S Prefix for Automotive and Other Applications Requiring Unique

The site and Control Change Requirements; AEC?Q101 Qualified and

PPAP Capable

Ideal for Low Power Amplification and Switching

Epitaxial Planar Die Construction

Product Applications

Driver Modules like Relay Driver, LED driver, etc.
Switching loads up to 600mA
Motor speed control
Inverter and Rectifier circuits
Darlington Pair Designs

Product Description

Type	Description
ANSC PART#	ANSC - MMBT2222ALT1G
Category	Discrete Semiconductor Products Transistors Bipolar (BJT) Single Bipolar Transistors
Mfr	Original
Series	-
Packaging	Tape & Reel (TR) Cut Tape (CT)
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	600 mA
Voltage - Collector Emitter Breakdown (Max)	40 V
Vce Saturation (Max) @ Ib, Ic	1V @ 50mA, 500mA
Current - Collector Cutoff (Max)	10nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 150mA, 10V
Power - Max	225 mW
Frequency - Transition	300MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Grade	Automotive
Qualification	AEC-Q101
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SOT-23-3 (TO-236)
Base Product Number	MMBT2222

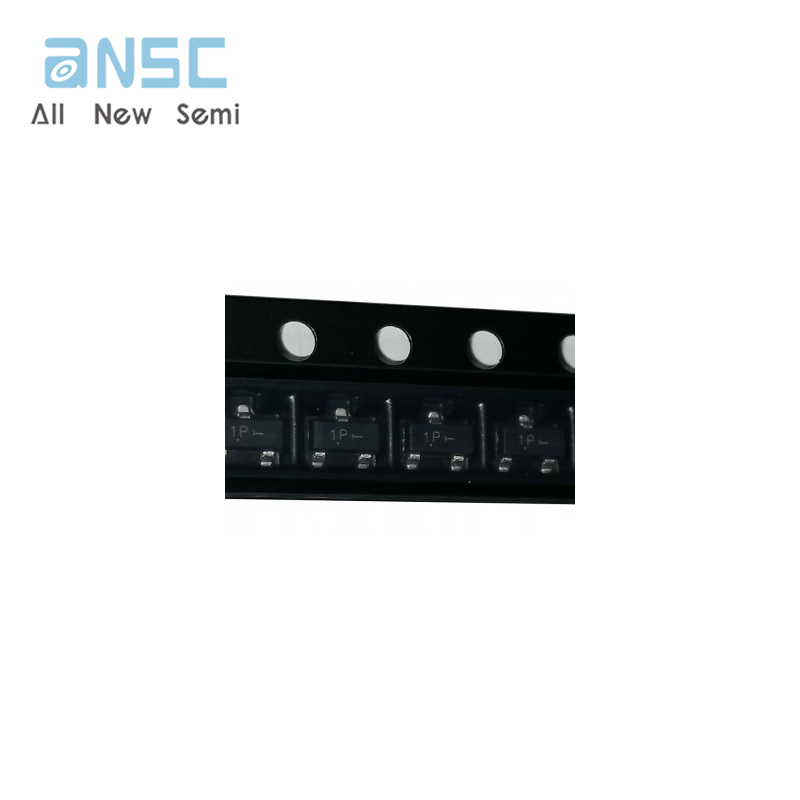

Product Photos

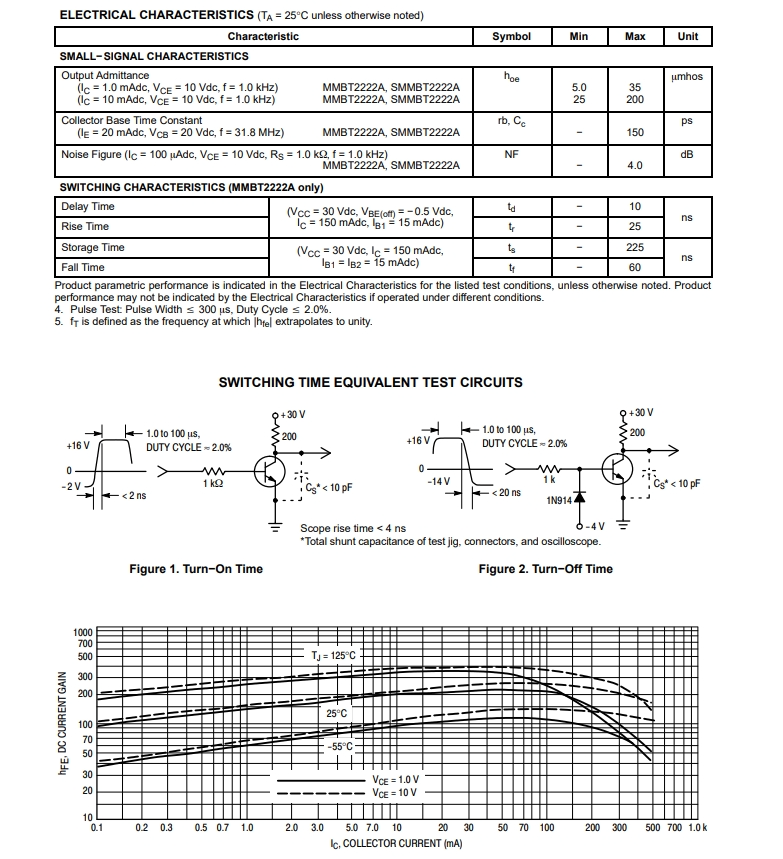

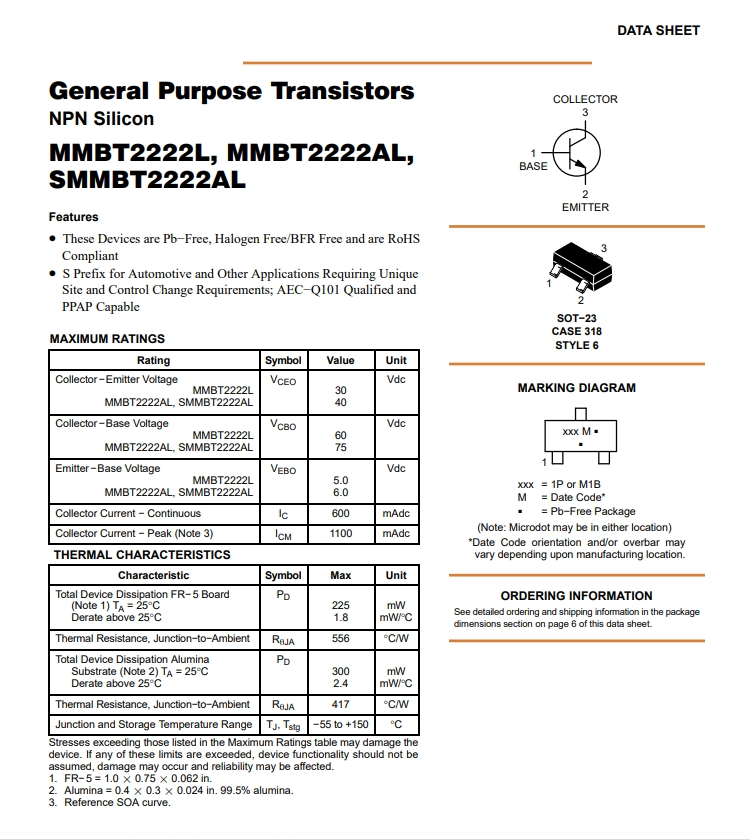

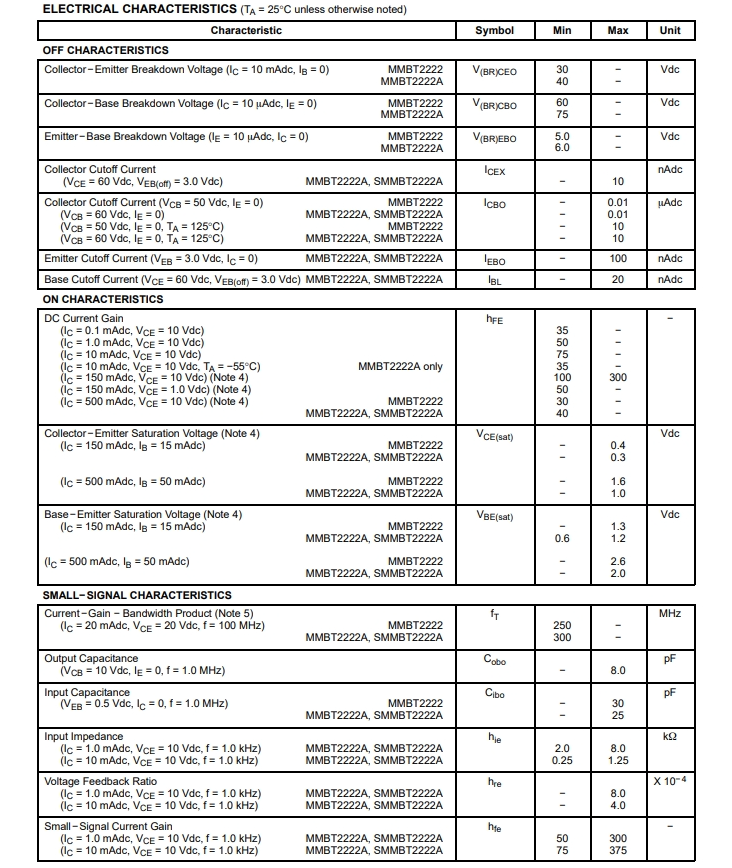

Product datasheet

For more information, please download
