Wireless Charging
OEM/ODM Custom Wireless Charging Receiver Qi Wireless Charging Receiver Module PCBA 15W 2A
$0.00
Free hotline:
+86 135 5637 6665
+852 2632 9637
Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot standard wireless charging modular PCBA semi-finished type-C port board wireless charging solution provider 10W 7.5W
Manufacturer
Manufacturer Product Number
ATM10W-TSY
Description
standard wireless charging modular PCBA semi-finished type-C port board wireless charging solution provider 10W 7.5W
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
standard wireless charging PCBA semi-finished type-C port board
wireless charging solution provider 10W 7.5W(Accept customization)
| Product parameters: | |
| 7.5W compatible with 10W | |
| Single coil | |
| Scheme: | / |
| Interface: | TYPE-C |
| Light indication: | Breathing lamp |
| Launch distance: | 5-10mm |
| Input current: | 9V 1.67A |
| Charging current: | 1000mA |
| Wireless charging and output: | 9V-1A |
| Conversion rate: | 70% |
| Working frequency: | 110-205KHZ |
| Wireless charging conversion efficiency: | 75% |
| Compatible with standard: | WPC1.1 |
| Protection measures: | Over current, over temperature and short circuit protection |
| Plate width size: | |
| Frame size: | 90*80*3M |
| Coil size: | 50*50*1MM |

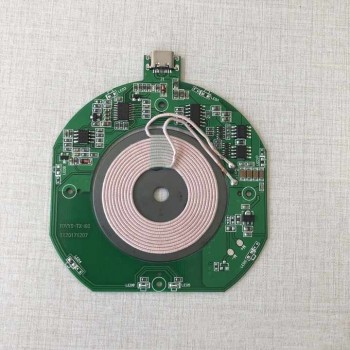

Actual image of the product
About us
How to get a custom type wireless charging and transmitting module quote:
| 1.What machine to use |
| 2. Input voltage + current |
| 3. Output voltage + current |
| 4. Shape + size requirements |
| 5. Coil requirements (1 coil? 2 coils? 3 coils or ..?) |
| 6. Plug / Welding wire Detailed requirements |
| 7. Quantity |
| 8. Certification requirements |
| 9. Other requirements |
This is a customized product, please contact us for price and more details.
Exhibition
Advantages
FAQ
