OEM ODM customized Fast qi wireless charging PCBA 9V 10W for mobile phone use

Product Description

OEM ODM customized Fast qi wireless charging PCBA 9V 10W for mobile phone use

Product Specification:

Use:Mobile Phone

Type:Electric

Place of Origin:Guangdong, China

Charging standard:QI 10W

Input:DC5V/1.5A or 9V1.67A

Output:DC 5V 1A or 8V1.2A

PCBA thickness:2.0 mm

Certificate:CE FCC ROHS QI

Coil size:50mm

Material:metal

Warranty:12 Months

PCBA Dimension:Dia 75*35mm

Charging temperature:MAX 45℃

Product Feature

This mode using the electromagnetic principle to fast wireless charging with Samsung Note5 and S6edge +,With QC2.0 power input 9V, it can full support wireless quick charge mobile phone within 2 hours;At the same time it has good compatibility with 5W wireless charging mobile phone, and it can support Ti, IDT, PANASONIC, and others Qi standard receiver.

  Power input 9V1.6A power control IC driver MOS transistors (Drive circuit),MOS push-pull resonant capacitance and inductance, issued 50V voltage 105-189K shock power,Communication module detects the received feedback information to the MCU,Feedback information processing modulation frequency is 500-1000Hz,At the same time electrical detection module will send back to the transmit power MCU,MCU based on feedback to adjust the transmit frequency,The circuit control within a certain range. Wherein the main operating frequency is 48MHz.LED have blue and green color, the power will turn every 0.5S bright look.Standby completely destroyed, charging blue lights up, full of green light.when an error occurs, double light flashing.

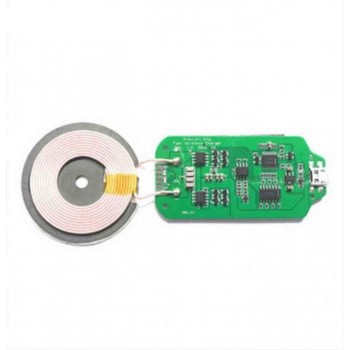

Actual image of the product
