OEM ODM customized Wireless charger module pcba for apple watch wireless charging

Product Description

OEM ODM customized  Wireless charger module pcba for apple watch wireless charging

Product Specification

Use:Mobile Phone

Type:Electric

Place of Origin:Guangdong, China

Port:1 x USB

Socket Standard:EU/AU/UK/US

Solution:Watch charging

Input voltage:5V (+/-5%)

Output:5V/200mA

PCBA charging distance:2.5 mm (MAX)

Certificate:CE FCC Rohs

Required input Ripple voltage:<150mVp-p @ 1.5A 5V

Ambient operating Temperature:-10 to 45°C

Charging time for watch:2hours 30mins

Switching frequency:Working For QI 110-205KHZ

Protection:OCP OVP OTP SCP

Product Feature

This document specifies the technical specification of the HG-APPLE WATCH-TX1806 transmitter module. APPLE WATCH-TX1806 transmitter module consists of the 20mm Tx coil (see later description) with an integrated electronics PCB.

The APPLE WATCH-TX1806 transmitter module offers a Coil-to- Apple watch surface charging distance 1.5mm(+/- 0.2mm).

The APPLE WATCH-TX1806 transmitter module accepts 5V02.A power input , 0%-100% full charged of apple watch within 3hours .

Thermal management system is designed to stop power transfer when the sense temperature is exceeding safety threshold while auto-resume mechanism would rescan the device when the temperature cool down to safety level.

​

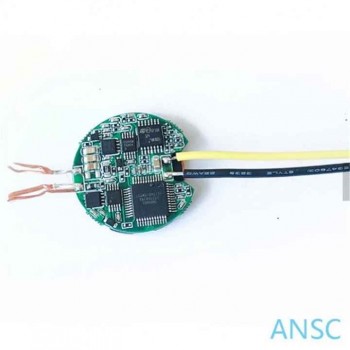

Actual image of the product
