Image shown is a representation only.

Exact specifications should be obtained from the product data sheet.

Can be OEM ODM customized: 15w Wireless receiver scheme

Manufacturer
Original
Manufacturer Product Number
ATMC-KZ***
Description

15w Wireless receiver scheme

Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Description

Can be OEM ODM customized: 15w Wireless receiver scheme
Product Specification:
Model Number:ATMP1505-KLGC   ( Matching-Transmitter module→ ATMP1505-KLGC)
Use:Mobile Phone
Type:Electric
Place of Origin:Guangdong, China
Input voltage:12V/9V DC+/-5%
Rated input current:5V-2.0A/9V-1.5A
Required input Ripple voltage:<150mVp-p @ 1.5A 5V
Output power:15W
Switching frequency:Working For QI 110-205KHZ
Ambient operating Temperature:-10 to 45°C
Over current protection:Yes
Thermal protection:Yes
Storage Temperature:-20 to +85°C
Product Feature
The ARMP1505-KLGC is a high efficiency, Qi-compliant wireless power receiver targeted for applications up to 15W. Using magnetic inductive charging technology, the receiver converts an AC power signal from a resonant tank into a requlated DC output voltage. setting with 9V and 12V. The integrated, low RDS (ON) syn chronous rectifier and ultra-low dropout offer high efficiency making the product ideally suited for battery-operated applications.
The ARMC15W-KL1 includes an industry-leading 32 bit ARM@ Cortex@ MO processor offering a high level of programmability. In addition, . the device features proprietary alignment guide information for optimum coupling between the receiver and the transmitter, a programmable current limit, and a patented over-voltage protection scheme eliminating the need for additional capacitors generally used by the receivers, minimizing the external component count and cost. Together with the P9242-R transmitter (Tx), the ARMC15W-KL1 is a complete wireless power system solution for power applications up to 15W.
The ARMC15W-KL1 is available in a 52-WLCSP package and it is rated. for a 0 to 85C ambient operating temperature range.

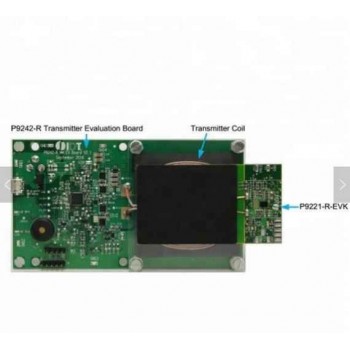

Actual image of the product









​
