customized smart watch Mobile phone 3 coil 5W 7.5W 10W 15W fast wireless charger module
Manufacturer
Manufacturer Product Number
ATMC-KZ***
Description
smart watch Mobile phone 3 coil 5W 7.5W 10W 15W fast wireless charger module
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
| OEM ODM customized 3 coil 5W 7.5W 10W fast wireless charger module for Iphonex |
| Product Specification: |
| Use:Mobile Phone |
| Type:Electric |
| Place of Origin:Guangdong, China |
| Port:1 x USB |
| Solution:Qi 1.2.4 |
| Input:DC 5V 2A/9V 1.67A |
| Output:5V/1A 9V 1.1A |
| PCBA thickness:2.5 mm |
| Certificate:CE FCC Rohs |
| Coil size:A6 three coil |
| Warranty:12 Months |
| PCBA Dimension:75*35mm |
| Temperature protect:65°C |
| Color:Black |
| Product Feature |
| Mode using the electromagnetic principle to fast wireless charging with Samsung Note5 and S6edge +,With QC2.0 power input 9V, it can full support wireless quick charge mobile phone within 2 hours;At the same time it has good compatibility with 5W wireless charging mobile phone, and it can support Ti, IDT, PANASONIC, and others Qi standard receiver. |
| Power input 9V1.6A power control IC driver MOS transistors (Drive circuit),MOS push-pull resonant capacitance and inductance, issued 50V voltage 105-189K shock power,Communication module detects the received feedback information to the MCU,Feedback information processing modulation frequency is 500-1000Hz,At the same time electrical detection module will send back to the transmit power MCU,MCU based on feedback to adjust the transmit frequency,The circuit control within a certain range. Wherein the main operating frequency is 48MHz.LED have blue and green color, the power will turn every 0.5S bright look.Standby completely destroyed, charging blue lights up, full of green light.when an error occurs, double light flashing. |

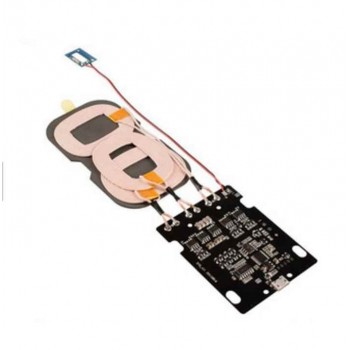

Actual image of the product
