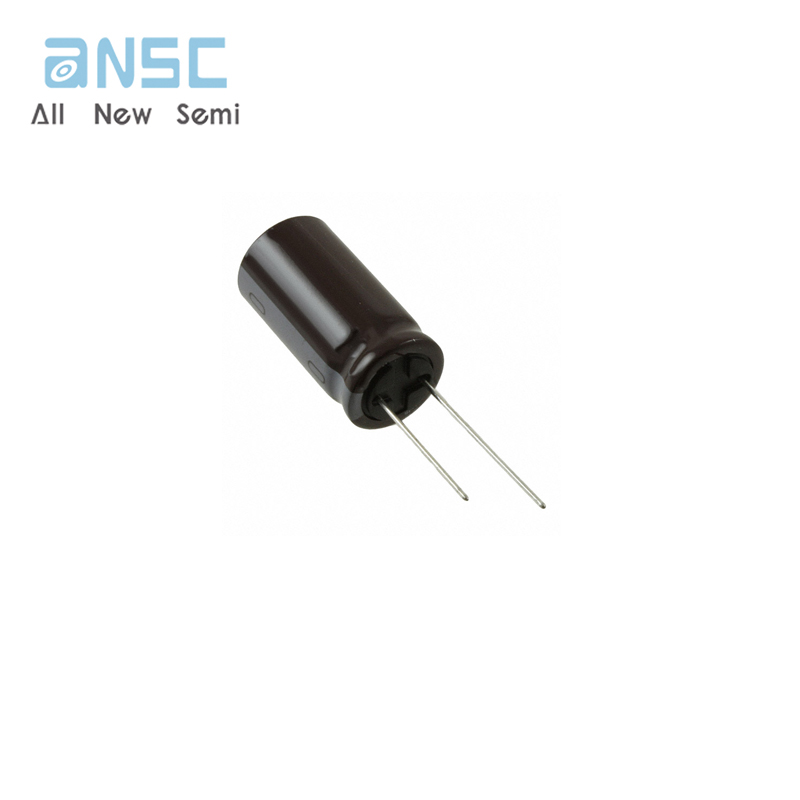

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Original UPS0J103MHD 10000 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C
Manufacturer
Manufacturer Product Number
UPS0J103MHD
Description
UPS0J103MHD Aluminum Electrolytic Capacitors CAP ALUM 10000UF 20% 6.3V RADIAL
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
|
UPS0J103MHD Overview Full charge results in a ripple current of 2.35A @ 100kHz.The ripple current at the lowest charge is 2.045A @ 120Hz.Keeping the maximum height of the seated person (Max) below 1.319 33.50mm is recommended.Rated DC voltage is 6.3V for this capacitor.High efficiency requires an operating temperature of -55°C~105°C. UPS0J103MHD Featuresthe ripple current is 2.35A @ 100kHz. the ripple current is 2.045A @ 120Hz. voltage - Rated DC of 6.3V an operating temperature of -55°C~105°C UPS0J103MHD Applications UPS0J103MHD applications of aluminum electrolytic capacitors. Power supplies Computer motherboards Uninterruptible power supplies Frequency converters Computer Telecommunication Industrial systems Smoothing and filtering applications Standard and switched mode power supplies Energy storage in pulse systems |
Product Description
|
Type |
Description |
|---|---|
|
PART# |
UPS0J103MHD |
|
Category |
Capacitors Aluminum Electrolytic Capacitors |
|
Mfr |
- |
|
Series |
UPS |
|
Packaging |
Bulk |
|
Part Status |
Not For New Designs |
|
Capacitance |
10000 µF |
|
Tolerance |
±20% |
|
Voltage - Rated |
6.3 V |
|
ESR (Equivalent Series Resistance) |
- |
|
Lifetime @ Temp. |
3000 Hrs @ 105°C |
|
Operating Temperature |
-55°C ~ 105°C |
|
Polarization |
Polar |
|
Ratings |
- |
|
Applications |
General Purpose |
|
Ripple Current @ Low Frequency |
2.045 A @ 120 Hz |
|
Ripple Current @ High Frequency |
2.35 A @ 100 kHz |
|
Impedance |
33 mOhms |
|
Lead Spacing |
0.295" (7.50mm) |
|
Size / Dimension |
0.630" Dia (16.00mm) |
|
Height - Seated (Max) |
1.319" (33.50mm) |
|
Surface Mount Land Size |
- |
|
Mounting Type |
Through Hole |
|
Package / Case |
Radial, Can |
